S&S Northern MERLIN 1000BH Installation & Operation Manual

Gas proving & gas detection controller
Hide thumbs Also See for MERLIN 1000BH:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Operation Manual
Merlin 1000BH
MERLIN 1000BH

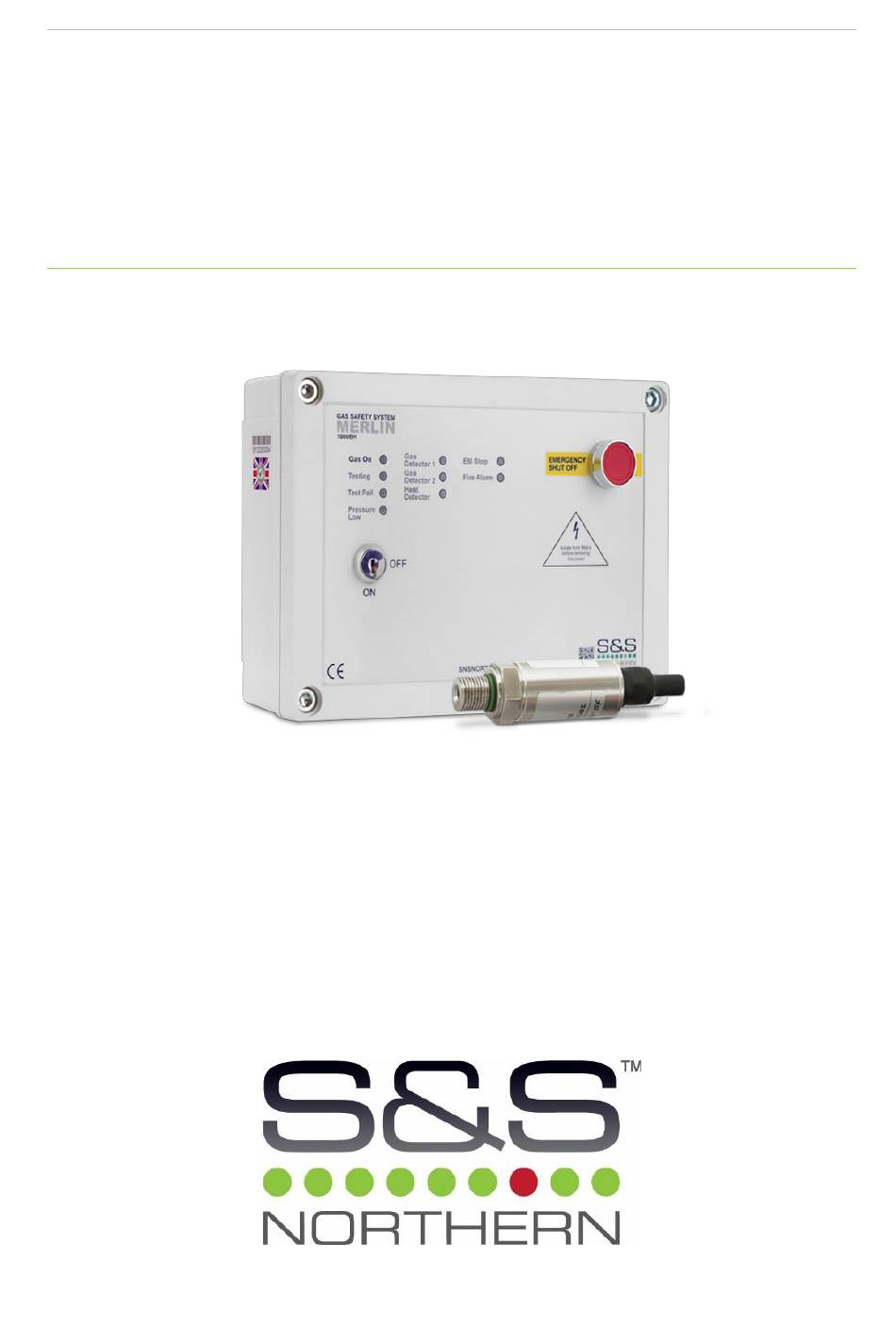

Gas Proving & Gas Detection Controller
INSTALLATION & OPERATION MANUAL
Please read these instructions carefully and retain for future use.
These instructions can be downloaded in electronic form on the product website (www.snsnorthern.com) or a printed version
can be ordered free of charge via S&S Northern Limited.
Rev: 10 030924
1
