Installation Instructions
L[X]AM Series
SW3-704 - v3
1. Introduction

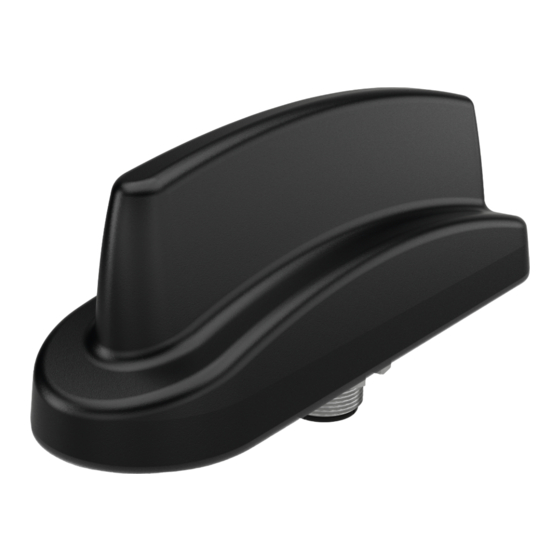

The L[X]AM antenna series is designed for M2M / IOT applications requiring MiMo / diversity support.
The antenna has a rugged, low profile housing with two elements supporting 4G/3G/2G and 3.5GHz 5G
bands and has integrated length RG174 coaxial cables. The LG version incorporates an active GPS/GNSS
antenna.
Electrical Safety Note
This product contains an active GPS/GNSS antenna. Rated voltage: 3-5VDC Rated current:
20mA maximum.
The supply to this device must be provided with over-current protection of 1A maximum.
2. Mounting requirements and selecting location
Select a mounting location. Ensure that there is adequate under panel clearance. Measure to check for
central position if applicable.
If the antenna will be co-located with other antennas or roof mounted equipment please try to ensure at
least 30cm (12") of clearance around the L[X]AM antenna in order to avoid de-tuning and interference
issues.
Ground plane requirement. This antenna range does not require a conductive ground plane in order to
operate. Performance will vary depending on whether a ground plane is present or not.
3. Prepare and drill hole
Mask panel area around hole position to protect finish. Drill a
pilot hole, and then increase to 19mm (3/4"), ensuring that drill/
cutter bit does not contact any parts under the panel. Clean area
around the hole, carefully removing an burrs and all swarf.
SW3-704 02/09/2024 - V3

Advertisement

loading
Need help?

Need help?

Do you have a question about the L AM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Panorama Antennas L AM Series

  • Page 1 Installation Instructions L[X]AM Series SW3-704 - v3 1. Introduction The L[X]AM antenna series is designed for M2M / IOT applications requiring MiMo / diversity support. The antenna has a rugged, low profile housing with two elements supporting 4G/3G/2G and 3.5GHz 5G bands and has integrated length RG174 coaxial cables.
  • Page 2 4. Fitting the antenna It is recommended that the installation is carried out when the temperature is greater than 50°F (10°C) as the ideal temperature for the pad bonding is 70°F (21°C) to 100°F (37°C). Remove protective backing from underside of antenna, feed coaxial cables through panel. Position the antenna over the hole ensuring correct orientation and stick to panel by applying firm, even, downward pressure.
  • Page 3 European Waste Electronic Equipment Directive 2002/96/EC Waste electrical products should not be disposed of with household waste. All electronic products with the WEEE logo must be collected and sent to approved operators for safe disposal or recycling. Please recycle where facilities exist. Many electrical/electronic equipment retailers facilitate “Distributor Take-Back scheme”for household WEEE.
