  • Page 1 MS-5012C-xx Series Solar & PoE Battery Charger USER’S MANUAL Mstronic Co., Ltd.
  • Page 2 Features:  Dual Input, from solar panel and/or PoE (Solar First) to charge 12V battery, and another two outputs: PoE output on front and/or terminal block on rear  Built-in DC/DC converter, with various passive PoE output, 12V, 18V, 24V, 48V available. ...

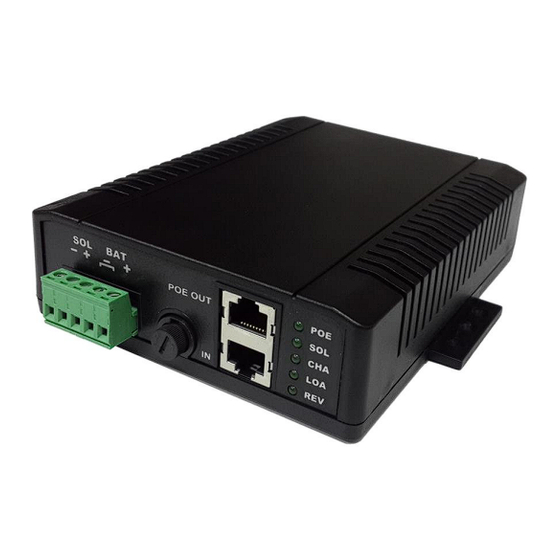

  • Page 3 Panel Description: Item Name Descriptions PoE power input indicator: the LED constant lights when the PoE POE : input jack (the lower jack) has 18V~57V steady input. Flash light means the input unstable. Solar power input indicator: the LED lights when SOL terminal is SOL : connecting to a solar panel and the solar panel input voltage is over 12V.
  • Page 4 Operation Guide NOTICE: 1. Connect the battery to the BAT terminal. Make sure the polarities are correctly connected. Sequentially connect the solar panel to SOL terminal and connect POE source to PoE input (lower) jack. (If solar panel or PoE source is installed before the battery, and if the polarities of the battery be reversed, then the fuse will be burnt.) 2.
  • Page 5 Electrical specifications  1.0 INPUT 1.1 Input Source types: A. Solar Panel B. PoE (passive) 1.2 Input Voltage: A. Solar Panel: 18V~25Vmax (or instead by DC14.4V connect front panel terminal) B. PoE: 18V~57V (30W min.) 2.0 OUTPUT Model MS-5012C-12 MS-5012C-18 MS-5012C-24 MS-5012C-48 MS-5012C-48D...

  • Page 6: General Description

    Fuse control, over 10A, the fuse will be burnt. 5.4 Solar Panel Polarity Reverse Protection: When solar panel polarities be reversed, the charger stop output, it won’t damage the charger or end device 5.5 Solar Panel Over Charge Protection: When charge current over 10A, the fuse will be burnt. 5.6 Output Short Circuit Protection: When the rear output terminal or PoE output be short circuit, protection (PPTC) be active, the product stop output, it’ll auto-recover when the short load removed...
