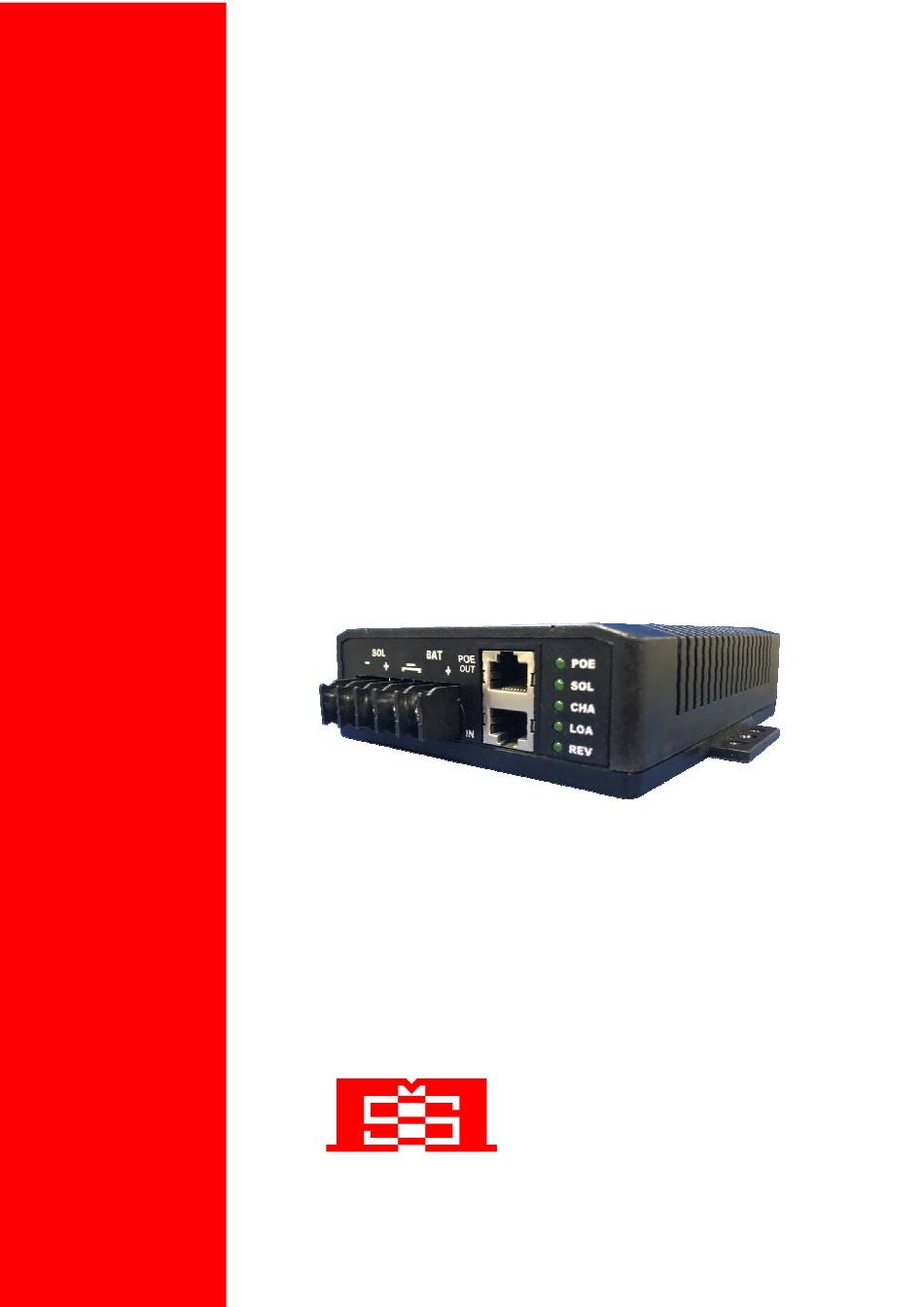

User’s Manual SOL20P12LFP-56B1N Panel Description Item Name Descriptions PoE power input indicator: the LED lights when the PoE input jack (the POE : lower jack) has 36V~57V input. (802.3af/at) Solar power input indicator: the LED lights when SOL terminal is SOL : connecting to a solar panel and the solar panel input voltage is over 12V.
Page 4
User’s Manual SOL20P12LFP-56B1N Operation Guide 1. Connect the battery to the BAT terminal. Make sure the polarities are correctly connected. Sequentially connect the solar panel to SOL terminal and connect POE source to PoE input (lower) jack. 2. Make sure the battery is properly connected to the unit. If no battery is connected, then the voltage at BAT terminal will no voltage.
Page 5
User’s Manual SOL20P12LFP-56B1N 9. The V- of PoE input, Solar input, and battery(-) are not the same grounding, must be properly isolated.
User’s Manual SOL20P12LFP-56B1N Electrical specifications 1. INPUT Two Input Source: A. Solar Panel : 18V~55V, B. POE : 36 V~57V OUTPUT Output 1 Output 2 (front panel) (rear panel) 56V/0.625A 12V/10A (45+/78-) (as Bat. Volt.) (regulated) Battery Charge Current: A. Solar Panel: depends on the solar panel, 20A max, B.
Page 7
User’s Manual SOL20P12LFP-56B1N 4.2 Battery Over Discharge Protection: Cuts off the load when the battery voltage is lower than 11V + 0.3V, and auto recover when the battery voltage returns to 12 V + 0.3V 4.3 Battery Over Charge Protection: Fuse control, over 20A, the fuse will be burnt.
User’s Manual SOL20P12LFP-56B1N When the charger is in charging mode and charge current is more than 1.8A. charge voltage for battery is 14.5V ± 0.1V when charge current is lower than 1.67A . charge voltage for battery is 13.5V ± 0.2V.
