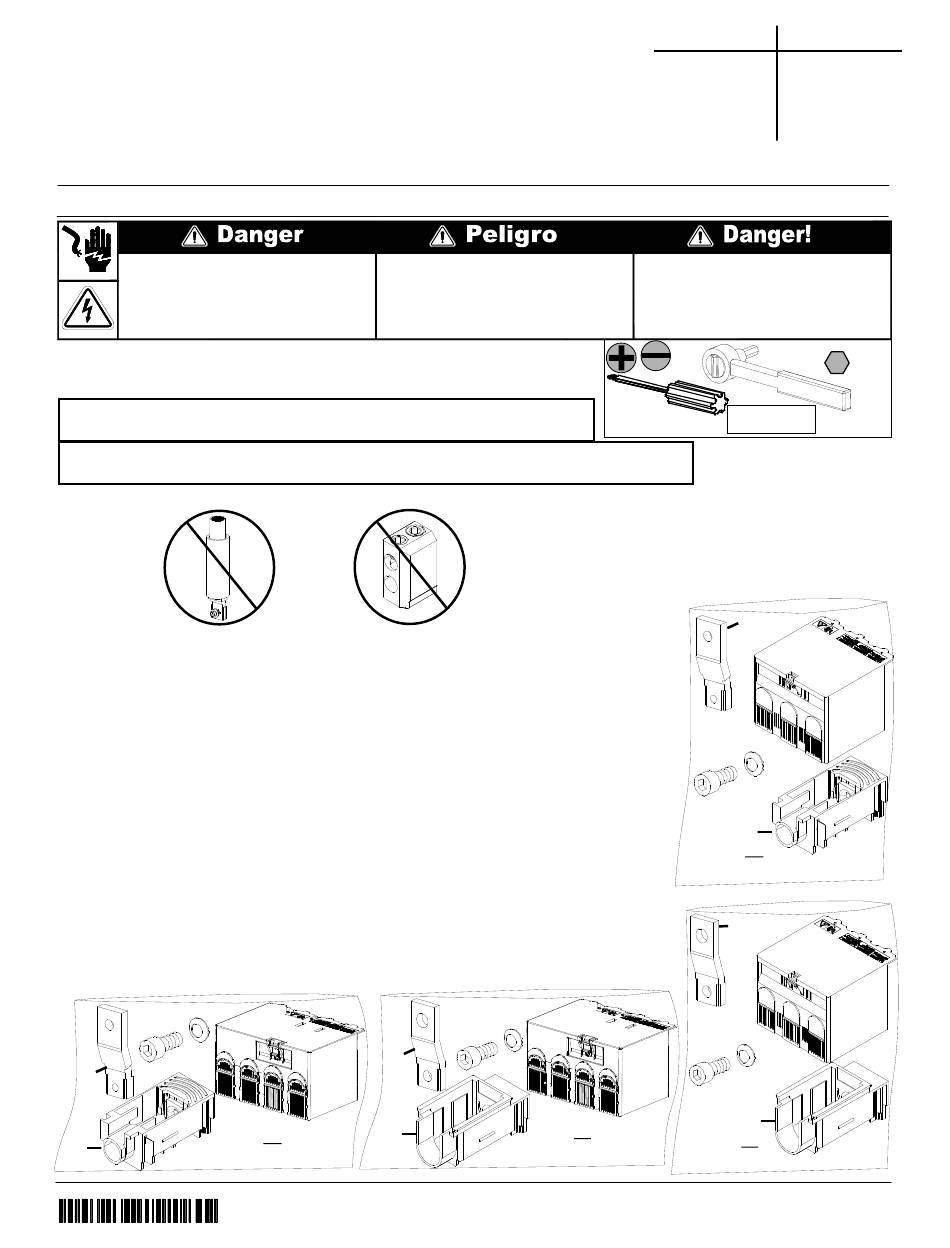

Siemens FBCD Series Installation Instructions

s
Front Busbar Connection
Piezas frontales de conexión a barras
Plages de raccordement avant
Installation Instructions / Instructivo de Instalación
Hazardous Voltage Hazardous Voltage
Will cause death or serious injury Will cause death or serious injury
Turn off and lock out all power supplying this device before Turn off and lock out all power supplying this device before
working on this device. working on this device.
Replace all covers before power supplying this device is Replace all covers before power supplying this device is
turned on. turned on.
Use only with Siemens certified Components.
Utilizar únicamente con componentes certificados de Siemens.
A utiliser uniquement avec les composants certifiés Siemens .
NOT suitable for use with 100% rated circuit breakers.
[ NO para uso con interruptores a 100% intensidad continua. ]
Do NOT use in combination with Compression lugs or mechanical lugs.
No usar en combinación con Bornes mecánicos o con Bornes de compresión.
NOTE - These instructions do not purport to cover all details or variations in
equipment, or to provide for every possible contingency to be met in
connection with installation, operation or maintenance. Should further information
be desired or should particular problems arise, which are not covered sufficiently
for the purchaser's purposes, the matter should be referred to the local Siemens
sales office. The contents of this instruction manual shall not become part of or
modify any prior or existing agreement, commitment or relationship. The sales
contract contains the entire obligation of Siemens. The warranty contained in
the contract between the parties is the sole warranty of Siemens. Any statements
contained herein do not create new warranties or modify the existing warranty.
Trademarks - Unless otherwise noted, all names identified by ® are registered
trademarks of Siemens AG or Siemens Industry, Inc. The remaining trademarks
in this publication may be trademarks whose use by third parties for their own
purposes could violate the rights of the owner.
4X M6 X 20mm
4X
4X
FBCD4 / 3VL9200-4EC41
8 0 6 8 6 3 A 0 2
Tensión peligrosa. Tensión peligrosa.
Puede causar la muerte o lesiones graves. Puede causar la muerte o lesiones graves.
Desenergice totalmente antes de instalar o darle servicio. Desenergice totalmente antes de instalar o darle servicio.
Reemplace todas las barreras y cubiertas antes de Reemplace todas las barreras y cubiertas antes de
energizar el interruptor. energizar el interruptor.
4X
4X
DG
Para Usar Con Caja Base DG, FG, JG, LG
4X
M8 X 20mm
FG
FBCF4 / 3VL9300-4EC41
1 / 3
U.S. Cat. No. Euro Order No.
Item: FBCD_
3VL9200-4EC_1
FBCF_
3VL9300-4EC_1
FBCJ_ 3VL9400-4EC_1
FBCL3 3VL9460-4EC31
For Use With Frame DG, FG, JG, LG
Tension dangereuse. Tension dangereuse.
Danger de mort ou risque de blessures graves. Danger de mort ou risque de blessures graves.
Couper l'alimentation de l'appareil et barrer avant de Couper l'alimentation de l'appareil et barrer avant de
travailler. travailler.
Remplacez touts les couverts avant que Remplacez touts les couverts avant que
l'approvisionnement de pouvoir soit alimenté. l'approvisionnement de pouvoir soit alimenté.
Cal. ISO 6789
3X
3X
M6 X 20mm
3X
DG
FBCD3 / 3VL9200-4EC31
3X
3X
M8 X 20mm
3X
FG
FBCF3 / 3VL9300-4EC31
I.L. No. 806863A02
5 mm
6 mm
8 mm
