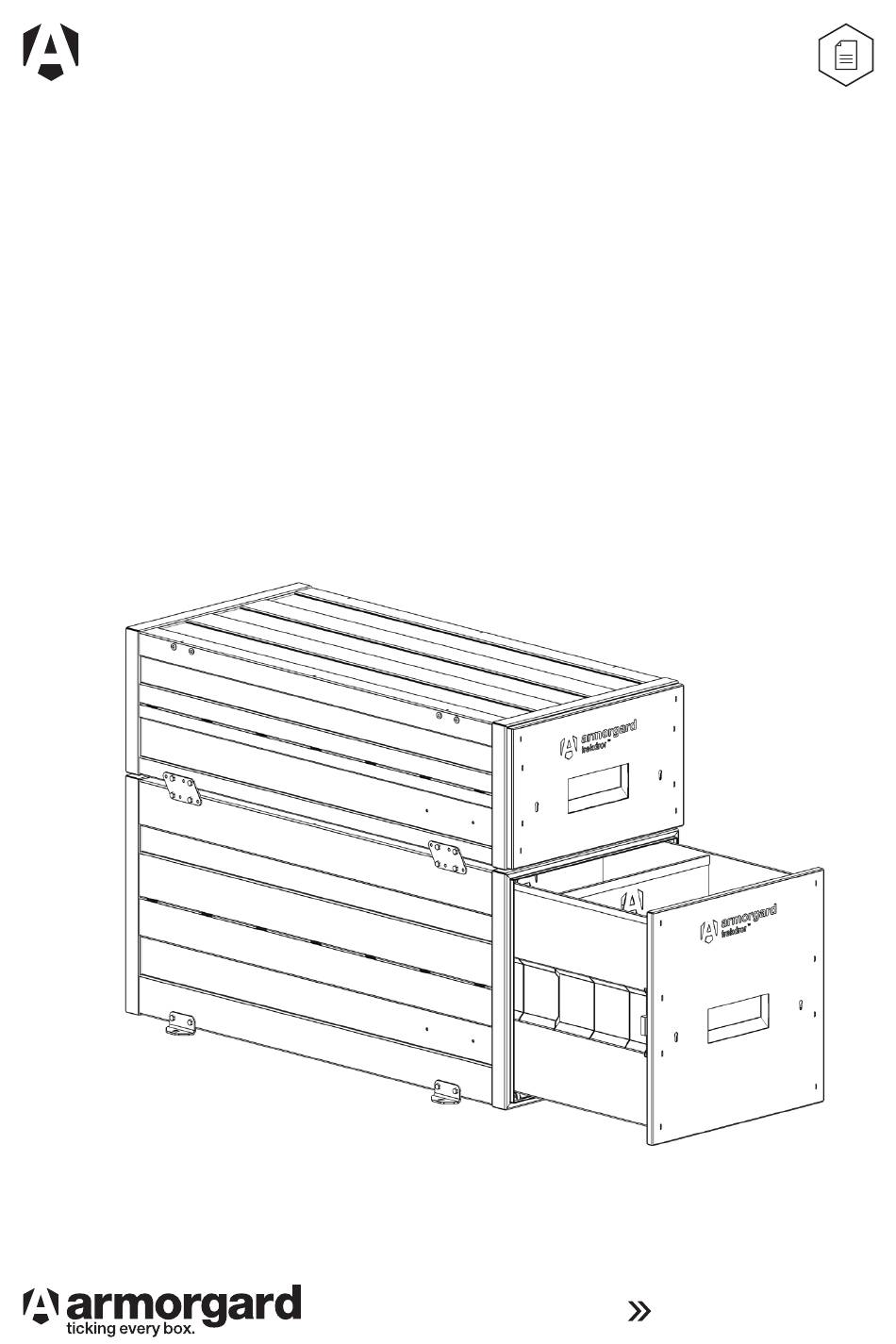

- Page 1 Operational and maintenance manual Suitable for: TKD1, TKD2, TKD3 023 9238 0280 armorgard.co.uk...
- Page 2 Welcome Welcome to your Armorgard TrekDror. Our range of robust steel tool drawers for vehicles and small spaces. Please consult this manual for instructions on how to adapt it to your needs. Please read this operational and maintenance manual carefully prior to setting up the TrekDror.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your TrekDror Getting to know your TrekDror How to assemble Optional extras Mounting to a vehicle Using the mounting kit (optional extra) Using the stacking kit (optional extra) Storing the unit Transporting the unit Equipment care... -
Page 4: Safety Information
At least two people are required to safely lift any TrekDror due to the weight. Before using a TrekDror, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure the TrekDror is empty before removing or fitting the drawer. -
Page 5: Product Specification
Product specification Product Description Weight (kg) External Dimensions Internal Dimensions Code W x D x H (mm) W x D x H (mm) Drawer in: TrekDror sliding 490x1105x300 TKD1 405x1040x245 van drawer Drawer out: 490x1900x300 Drawer in: TrekDror sliding 980x1105x200 TKD2 900x1040x145 van drawer... -
Page 6: What's Included
What’s included... 1x TrekDror 3x keys... -
Page 7: Tools You'll Need
Tools you’ll need... 17mm spanner M10 bolts or oth- or socket (for er suitable fixings mounting and (for mounting) stacking) -
Page 8: Getting To Know Your Trekdror
Getting to know your TrekDror Robust steel tool drawers for vehicles and small spaces Data plate which lists each unique product serial number Pre-drilled stacking/ mounting holes Unique roller system to ensure smooth Keyed alike operation 5-lever deadlocks 5-lever deadlocks Suitable for use 1.5mm material Stackable... - Page 9 Pictured: TKD1 and TKD3 can be stacked TrekDror dividers go here (optional extra) Stacking plate to secure the TrekDrors to each other (optional extra) Mounting plate kit goes here, when securing to vehicle or floor (optional extra)
-
Page 10: How To Assemble
How to assemble The TrekDror arrives ready to use. Locate the two bolts inside the To remove the drawer, pull it right drawer at the rear. out until it stops. Loosen these bolts until the drawer The drawer can now be removed. can slide out freely. -
Page 11: Optional Extras
Take your trekdror to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. Stacking plate kit Dividers To organise Secures TrekDrors equipment on top of each other... -
Page 12: Mounting To A Vehicle
When fitting a TrekDror to a vehicle, it is important that our guidelines MUST be followed. The vehicle manufacturer should always be consulted to ensure any proposed works will not damage the vehicle. Armorgard can not be held liable for any damage to the vehicle. -
Page 13: Using The Mounting Kit (Optional Extra)
Using the mounting kit (optional extra) Alternatively, use the optional Four brackets are included in the mounting plate kit to fix your kit. Two should be fitted either side TrekDror to a vehicle. Begin by of the TrekDror using M6 bolts that fitting the brackets from the can be tightened using a 10mm mounting kit to the TrekDror. - Page 14 When fitting a TrekDror to a vehicle, it is important that our guidelines MUST be followed. The vehicle manufacturer should always be consulted to ensure any proposed works will not damage the vehicle. Armorgard can not be held liable for any damage to the vehicle.
-
Page 15: Using The Stacking Kit (Optional Extra)
Using the stacking kit (optional extra) If you have more than one TrekDror, Bolt the stacking plates to the they can be stacked in different fixing points on the side of the layouts using the optional stacking TrekDrors. All four plates and 16 plates. -
Page 16: Storing The Unit
Storing the unit The TrekDror is designed to save Ensure that all locks are secured space with a pull-out drawer, and when leaving the TrekDror capacity to load weight on top. Use unattended. the stacking kit to secure them on top of each other. -
Page 17: Transporting The Unit
Transporting the unit The design of the TrekDror makes transporting the product easy. An empty TrekDror can be lifted by two people. Please always take care when moving the TrekDrors. It is always advised to lift the boxes when they are empty on contents. Both locks on the TrekDror should always be locked when moving the unit. -
Page 18: Equipment Care
Equipment care The TrekDror is weather resistant and constructed with a durable powder coated finish, so it is suitable for outdoor use, however it does not mean it is waterproof. To prolong the life of the roller system, the TrekDror is recommended mainly for internal use. Always ensure that the product data plate remains visible and in good condition, especial- ly the unique serial number, as this is required should you need a replacement lock or key. -
Page 19: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of 12 months - please refer to the terms and conditions for what this covers. We also keep replacement keys and offer replacement locks for all Armorgard products up to five years old. - Page 20 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
