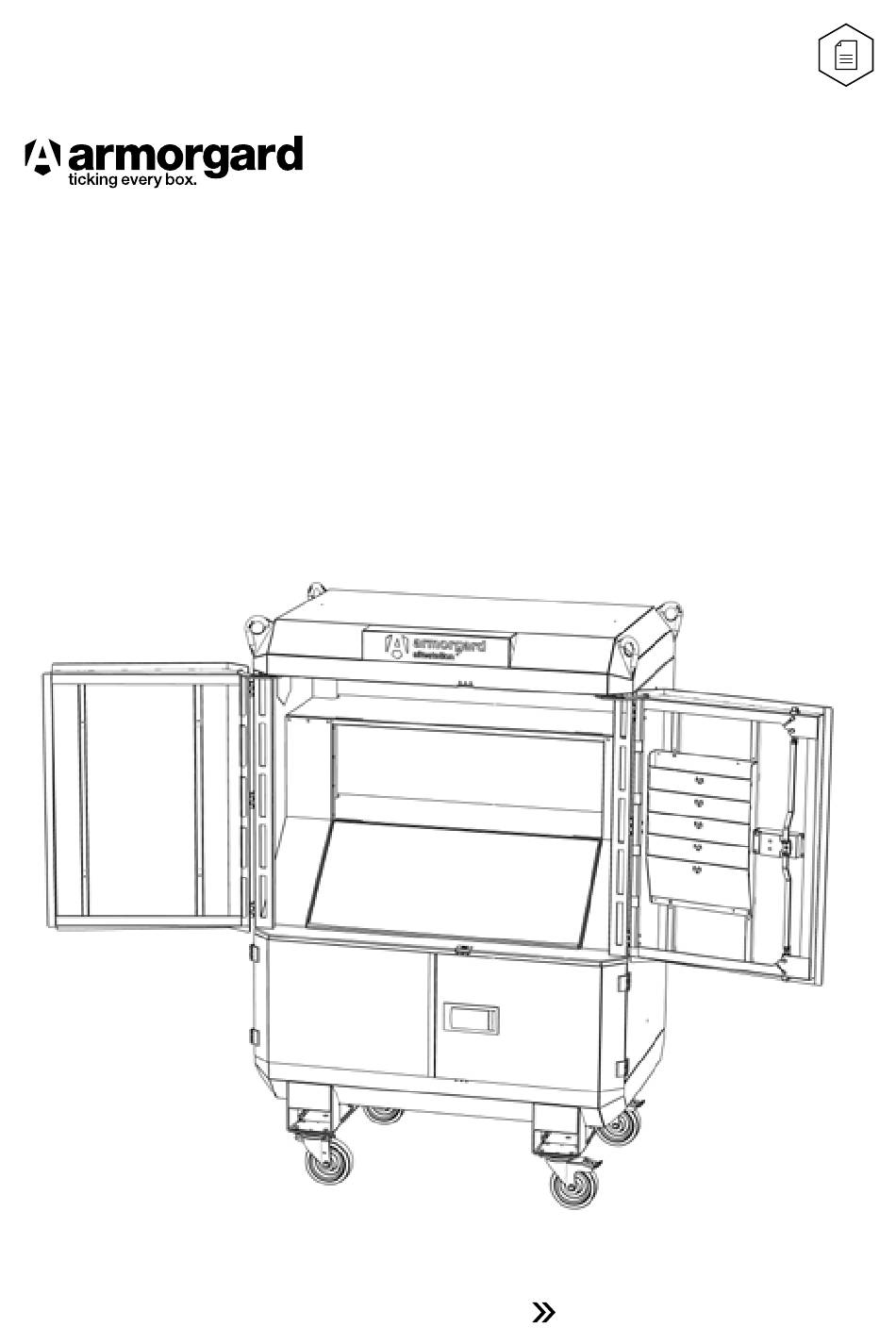

- Page 1 sitestation Operational and maintenance manual Suitable for: SS2-T 1-877-794-2848 info@armorgardusa.com...
- Page 2 Welcome Welcome to your Armorgard SiteStation. This ultimate mobile site office is the innovative replacement for your traditional desk. Please consult this manual for instructions on how to get the most from the unit. Please read this operational and maintenance manual carefully prior to setting up the SiteStation.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your SiteStation Padlock housing dimensions How to assemble Attaching the casters Attaching the handle Installing the rubber grommet Electrical safety information How to use How to use the lock Storing the unit Transporting the unit Equipment care... -
Page 4: Safety Information
Safety information Before using the SiteStation, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure the SiteStation is not damaged before using it. Always lock the unit and the casters (if applicable) when not in use or unattended. Do NOT leave keys inside the unit while locking. -
Page 5: Product Specification
Always wear the appropriate PPE for the task you are performing, as outlined in your risk assessment or safe work practices. When transporting, the doors must be locked shut and the product securely fastened to the vehicle. Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction. -
Page 6: What's Included
What’s included... 1x SiteStation 1x light 1x caster kit 1x power strip 1x handle kit 1x rubber grommet... -
Page 7: Tools You'll Need
Tools you’ll need... 43/64” wrench/ 33/64” wrench/ adjustable wrench adjustable wrench or impact driver (to add casters and power strip) with 43/64” socket (to add handle) Rubber mallet or hammer (for adding rubber grommet) -
Page 8: Getting To Know Your Sitestation
Getting to know your sitestation This ultimate mobile site office is the innovative replacement for your traditional desk Lighting supplied Document organizer Folding work surface with lockable storage Electrical cable pass-through point Crane lifting Heavy-duty T-Latch Lock Forklift skids Light supply casters eyes... - Page 9 Data plate featuring Crane lifting each unique product eyes serial number Top and bottom sections lock independently Handle for easy manoeuvring Padlock lock housing Heavy-duty all swivel casters 4-way forklift pockets Suitable for Product with Cable pass use on-site handles through point...
-
Page 10: Padlock Housing Dimensions
Padlock housing dimensions This lock system is designed to be used with a Master Lock No. 1, Master Lock No. 5, ABUS 41/50 or American Lock No. 50, or an equivalent sized lock. If you are using a padlock not listed above, it is your responsibility to make sure the lock mechanism is working correctly. -
Page 11: How To Assemble
How to assemble It is important to check that the You may require a forklift or product is not damaged upon arrival pallet truck when unloading your and all parts are intact. SiteStation. -
Page 12: Attaching The Casters
Video: how to attach the casters Attaching the casters Two of the casters are swivel-braked. Lift the CuttingStation onto a Fix both braked casters at the front stable platform to ensure not does of the unit. not roll and cause injury. The unit MUST be empty when installing casters. -
Page 13: Attaching The Handle
Video: how to attach the handle Attaching the handle Locate the pre-drilled holes on the Place the coach bolts in them. You sides of the unit. Take the handle may require someone to hold the and align the unit holes with the coach bolt in position until it is fixed ones in the handle plates. -
Page 14: Installing The Rubber Grommet
Video: how to install the rubber grommet Installing the rubber grommet Locate the cut-out plate at the back Next, take the rubber grommet of the body of the unit. With the help and place it from the outside to fit of a rubber mallet, carefully knock the cut-out. -
Page 15: Electrical Safety Information
Electrical safety information All electrical work MUST be performed properly with safety precautions. To prevent injury or damage to property, please ensure the below information is read carefully. Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction. -
Page 16: How To Use
How to use The folding shelf can be lowered to The lower storage area features a cable create a lockable compartment, or pass-through hole that can be used raised to access the space behind. to feed a power strip cable inside. We Ensure the folding shelf is secured recommend using a plastic cable pass- when in the open position, using the... -
Page 17: How To Use The Lock
Video: how to use T-Latch Lock How to use the lock To open the unit, locate the lock Unlock the padlock and remove housing at the center of the door. Open the cover plate to expose the locking mechanism. Twist the handle 90° to release the Grab the T Handle and swing it to door and pull it to open it. - Page 18 To lock the unit, shut both doors, Ensure the T Handle is parallel to then open the cover plate to expose the front face of the door. the locking mechanism. Lock the padlock, and fit it into Slide an unlocked padlock into the the lock housing.
-
Page 19: Storing The Unit
Storing the unit Ensure that all SiteStation locks are As both top and bottom sections lock secured after use, or when leaving the independently, ensure that these are unit unattended. This is essential to both locked. maintain the security of the unit. When the SiteStation is in position, always ensure the caster brakes are used. -
Page 20: Transporting The Unit
Transporting the unit The design of the SiteStation makes transporting the product easy. The unit comes as standard with 4-way forklift pockets for transporting using a forklift. Please always take care when moving the SiteStation. The unit comes with heavy-duty casters for easy maneuvering even when fully loaded. -
Page 21: Equipment Care
Equipment care The SiteStation is weather resistant and finished with a durable powder coating, so it is suita- ble for outdoor use, however, it does not mean it is waterproof. It is always important to note that any electrical components or equipment susceptible to water damage should be sealed, or removed in wet conditions. -
Page 22: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of seven years - please refer to the terms and conditions for what this covers. Do not force entry into the product, as this could affect the warranty. Contact your padlock distributor if you require a replacement lock or key. - Page 23 1.4.1 Defect Arises Because the Buyer Failed to Follow the Seller’s Oral or Written Instruc- tions as to the Storage, Installation, Commissioning, Use or Maintenance of the Goods or (if There Are None) Good Trade Practice; 1.4.2 the Buyer Alters or Repairs the Goods Without the Written Consent of the Seller; 1.4.3 Defect Arises From Fair Wear and Tear (as Determined by the Seller in Its Sole and Absolute Discretion), Cosmetic Rust, Scratches, Dents, or Willful Damage, Negligence, Ab- normal Working Conditions or Misuse, Environmental or Other External Factors;...
-
Page 24: Spare Parts
Spare parts Replacement Replacement power strip casters Replacement light Other spare parts available. Please get in touch for more information. - Page 25 Notes...
- Page 26 Notes...
- Page 27 Notes...
- Page 28 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
