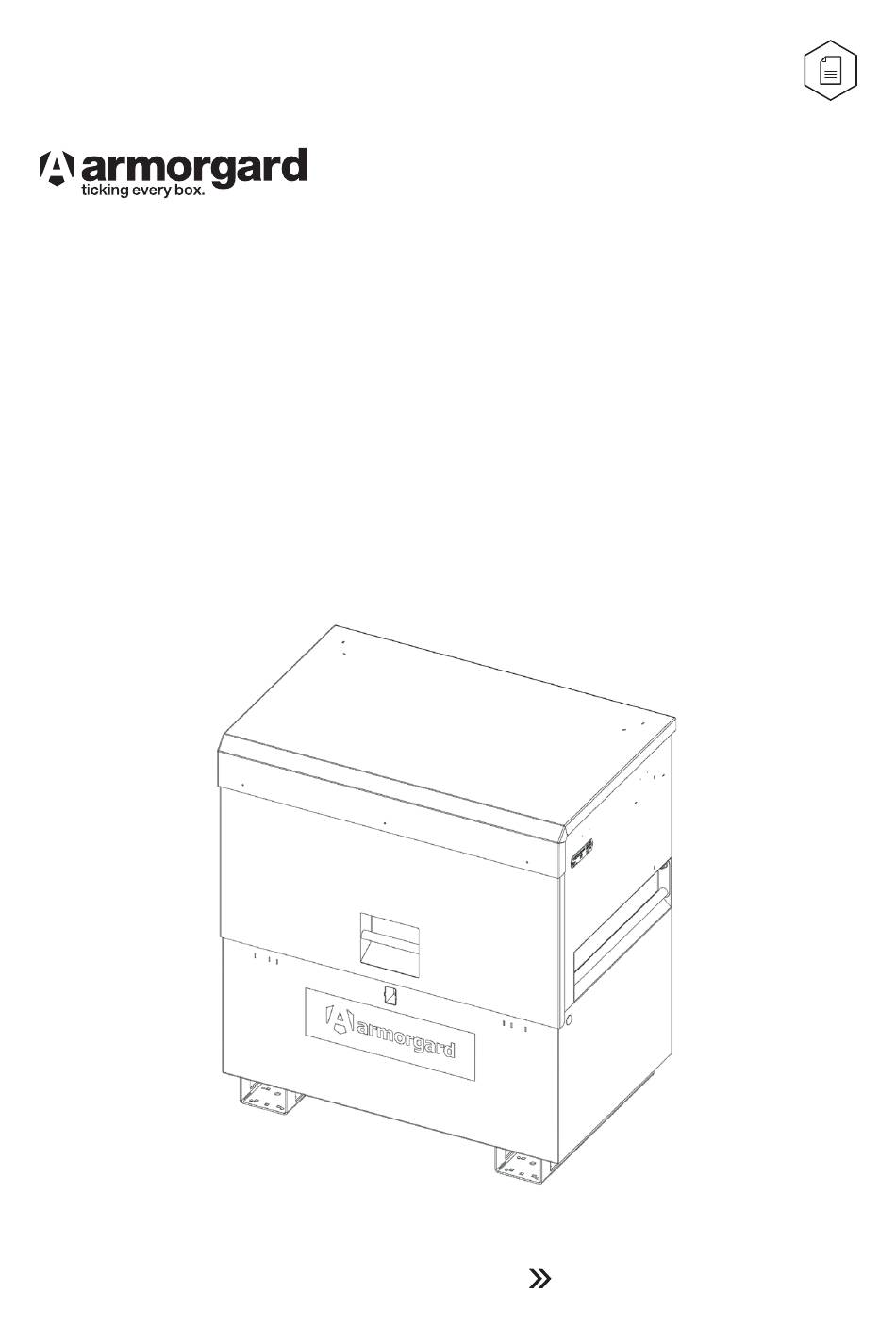

- Page 1 siteboss piano box Operational and maintenance manual Suitable for: SB38, SB49 1-877-794-2848 info@armorgardusa.com...
- Page 2 Welcome Welcome to your Armorgard SiteBoss Piano Box. Jobsite tool security, built like a boss - with over 30 years of design and innovation, SiteBoss is our no.1 secure storage range. Please consult this manual for instructions on how to get the most from the unit.
-
Page 3: Table Of Contents
Contents Safety information Product specification What’s included Tools you’ll need Getting to know your SiteBoss Piano Box Padlock housing dimensions How to use Installing the padlock Installing the rubber grommet Electrical safety information How to use the lock Optional extras Installing the casters Attaching the crane lifting eyes Storing the unit... -
Page 4: Safety Information
Safety information Before using a SiteBoss Piano Box, ensure any relevant risk assessments are carried out. Armorgard cannot be responsible for accidents that occur due to negligence. Ensure that the SiteBoss Piano Box is not damaged before using it. Always lock the box and the casters (if applicable) when not in use or out of sight. Do NOT leave keys inside the unit while locking. -
Page 5: Product Specification
The unit has an overall WLL of 2200 lbs. Do not exceed shelf capacity of 225 lbs on the fixed shelf and 375 lbs on the removable shelf. While every effort has been made to ensure this operational and maintenance manual covers every aspect needed to operate your product safely, please take care when using the product and always operate with caution. Always liaise with management personnel on site for any additional operational restrictions that you need to be aware of. -
Page 6: What's Included
What’s included... 1x UltraLock fixing kit 1x SiteBoss Piano Box 1x rubber grommet (padlock not included) 1x shelf... -
Page 7: Tools You'll Need
Tools you’ll need... Rubber mallet Adjustable or hammer (for wrench or ratchet adding rubber and socket grommet) (11/16” socket for installing padlock and 1/2” socket for casters) Drill Multiple (to add crane people may lifting eyes) be required to assist with lifting... -
Page 8: Getting To Know Your Siteboss Piano Box
Getting to know your SiteBoss Piano Box Jobsite tool security, built like a boss - our no.1 secure storage range Bi-fold lid Ergonomic easy-lift lid Facility to handle hang tools and equipment Gas struts from the hooks Fixed shelf Removable multi- Cable pass- purpose tool shelf through point... -
Page 9: Padlock Housing Dimensions
Padlock housing dimensions This lock system is designed to be used with a Master Lock No. 1, Master Lock No. 5, ABUS 41/50 or American Lock No. 50, or an equivalent sized lock. If you are using a padlock not listed above, it is your responsibility to make sure the lock mechanism is working correctly. -
Page 10: How To Use
How to use The SiteBoss Piano Box boxes arrive You may require a forklift or fully assembled. pallet truck when unloading your SiteBoss Piano Box. Two or more people may be required to assist with lifting. It is important to check that the product is not damaged upon arrival and all parts are intact. -
Page 11: Installing The Padlock
Video: how to install the padlock Installing the padlock To fi t the padlock, locate the cavity Inside the product, on the back of where it will be installed. the cavity, there will be a bolt with a nut. Remove this nut and the bolt to allow access for the padlock. -
Page 12: Installing The Rubber Grommet
Video: how to install the rubber grommet Installing the rubber grommet Locate the cut-out plate in the body Next, take the rubber grommet of the unit. With the help of a rubber and place it from the outside to fi t mallet, carefully knock the cut-out the cut-out. -
Page 13: Electrical Safety Information
Electrical safety information All electrical work MUST be performed properly with safety precautions. To prevent injury or damage to property, please ensure the below information is read carefully. Only use UL or CSA listed electrical devices that meet the requirements of the local jurisdiction. -
Page 14: How To Use The Lock
How to use the lock Once the padlock is installed, to un- To lock your product, you must close lock the box, you will need to insert the lid and simply push the padlock the key into the padlock. Twist it as in. -
Page 15: Optional Extras
Take your SiteBoss Piano Box to the next level with these optional extras Contact the Armorgard team to find out more about the optional extras for your product. Crane lifting eyes Casters To transport by crane To make your SiteBoss... -
Page 16: Installing The Casters
Installing the casters (optional extra) For the SiteBoss Piano Boxes that Armorgard casters kits come with can be installed with casters, lift two swivel and two swivel-braked the box on to a stable platform to casters. We recommend attaching... -
Page 17: Attaching The Crane Lifting Eyes
Video: how to attach the crane lifting eyes Attaching the crane lifting eye kit (optional extra) For the SiteBoss Piano Boxes that Thread the coach bolts through the can be attached with crane lifting lifting eyes, then back through the eyes, use a 13/32”... -
Page 18: Storing The Unit
Storing the unit The fl at sides and recessed handles Ensure that the lock is secured of the SiteBoss Piano Box can help when leaving the SiteBoss Piano save space when storing the unit. Box unattended. This is essential to maintain the maximum security of the box. -
Page 19: Transporting The Unit
Transporting the unit The design of the SiteBoss Piano Box makes transporting the product easy. The units come with forklift pockets for transporting using a forklift or pallet truck. Optional casters can be installed to these boxes using the pre-drilled holes. Please note that boxes may require more than one person to lift, and it is always advised to lift the boxes when they are empty of contents. -
Page 20: Equipment Care & Ongoing Maintenance
Equipment care The SiteBoss Piano Box is weather resistant and finished with a durable powder coating, so it is suitable for outdoor use, however, it does not mean it is waterproof. It is always important to note that any electrical components or equipment susceptible to water damage should be sealed, or removed in wet conditions. Always ensure that the product data plate remains visible and in good condition, especially the unique serial number. -
Page 21: Warranty
Warranty Armorgard products are built to last, and all have a manufacturer’s warranty of seven years - please refer to the terms and conditions for what this covers. Do not force entry into the product, as this could affect the warranty. Contact your padlock distributor if you require a replacement lock or key. - Page 22 The Seller shall not be liable for a breach of the limited warranty in Section 10.1 if the: 1.4.1 defect arises because the Buyer failed to follow the Seller’s oral or written instructions as to the storage, installation, commissioning, use or maintenance of the Goods or (if there are none) good trade practice;...
-
Page 23: Spare Parts
Spare parts Gas struts Tool shelf Other spare parts available. Please get in touch for more information. - Page 24 Find us on social media: UK Head Office Unit 14-16, Standard Way, Fareham Industrial Park, Fareham, Hampshire, PO16 8XB +44 (0) 23 9238 0280 | sales@armorgard.co.uk | www.armorgard.co.uk France Office Australia Office + 33 (0) 4 81 16 06 69 +61 (0) 1300 131 751 commercial@armorgard.fr...
