aspenhome
ITEM NO: I3014-272
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
FUNCTIONALITY INSTRUCTION
WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow
each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
Page 1/2

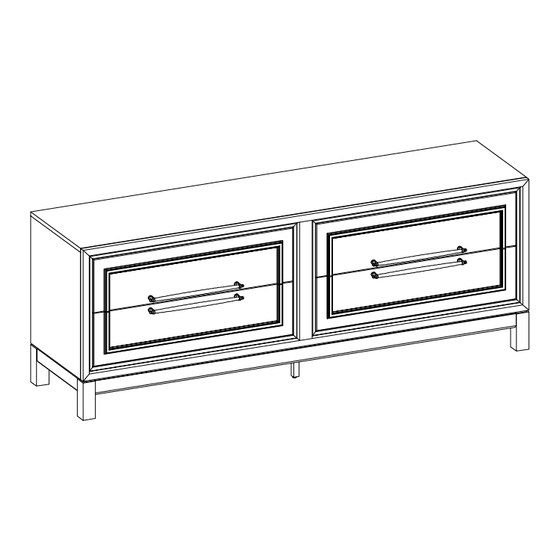

72" Console
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
Ensure support leg makes
proper contact with the
ground by adjusting leveler.
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST:
Description
No.
Bolt Ø5/16" x 2"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D Allen Wrench 4mm
COMPONENTS LIST:
Description
No.
1
Case
Leg
2
3
Support Leg
Leveler on legs
Adjust the leveler
when necessary
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
Quantity
Sketch
1 PC
4 PCS
1 PC
01-05-2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furniture Values International aspenhome I3014-272
Summary of Contents for Furniture Values International aspenhome I3014-272
- Page 1 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3014-272 72" Console Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS. TOOLS REQUIRED (NOT PROVIDED) PHILLIPS SCREWDRIVER HARDWARE LIST:...
- Page 2 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3014-272 72" Console STEP 1: Put the case upside down on a soft surface. STEP 2: Attach the legs to the bottom of case by using 8 bolts (A), lock washers (B), flat washers (C) with an allen wrench (D) as shown below. Completely tighten all bolts. STEP 3: Attach the support leg as shown below.
