aspenhome
ah
ITEM NO: I3184-305
I3184-306
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow
each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
COMPONENTS LIST: I3184-305
Description
No.
1
Desk
FUNCTIONALITY INSTRUCTION
PVC-lined Drawer with
Divider with Removable
Pencil Tray
Locking file drawer hold
letter or legal size files
Page 1/3

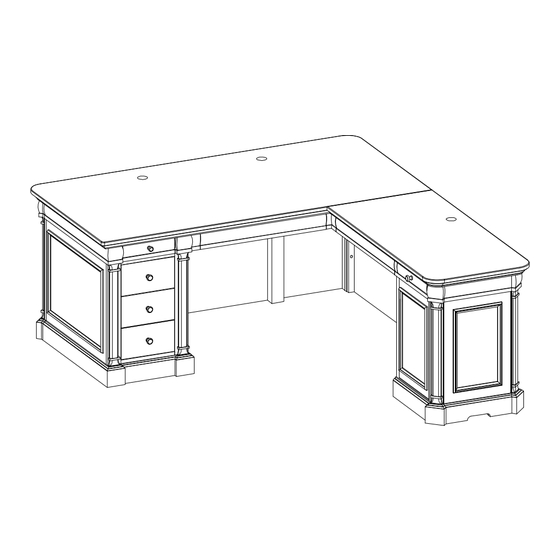

72" Desk for -306 Return
Return for -305 Desk
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
Quantity
Sketch
1 PC
I3184-305
Flip down
keyboard tray
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
HARDWARE LIST: I3184-306
Description
No.
Bolt Ø1/4" x 1-1/2"
A
Lock Washer Ø1/4"
B
Flat Washer Ø1/4" x 3/4"
C
D
Allen Wrench 4mm
COMPONENTS LIST: I3184-306
Description
No.
1
Return
Sketch
Sketch
I3184-306
PVC-lined Top
Drawers with Dividers
2 AC outlet + 1 type C port
+ 1 type A port power pack
Leveler on Bases
Adjust the leveler
when necessary
Quantity
6 PCS
6 PCS
6 PCS
1 PC
Quantity
1 PC
08-21-2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furniture Values International aspenhome I3184-305
Summary of Contents for Furniture Values International aspenhome I3184-305
- Page 1 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3184-305 72" Desk for -306 Return I3184-306 Return for -305 Desk Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. WARNING! Before using this product, please read, understand, and follow these instructions.
- Page 2 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3184-305 72" Desk for -306 Return I3184-306 Return for -305 Desk To dis-assemble desk (If necessary): STEP 1: Remove the drawers from the pedestals: Fully extend the drawer, then press the plastic tab down on the right and up on the left at the same time as shown below. While holding the tabs pressed down/up, pull the drawer out.
- Page 3 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3184-305 72" Desk for -306 Return I3184-306 Return for -305 Desk Notes: To reassemble desk, replace bolts removed in STEP 3 then STEP 2 above before proceeding to STEP 4 below. STEP 4: Replace all of the drawers in pedestals: Fully extend the slides from the case.
