aspenhome
ah
ITEM NO: I3014-332
Thank you for purchasing this quality product. Be sure to check all packing material carefully for
small parts that may come loose inside the carton during shipment.
WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow
each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
FUNCTIONALITY INSTRUCTION
Page 1/2

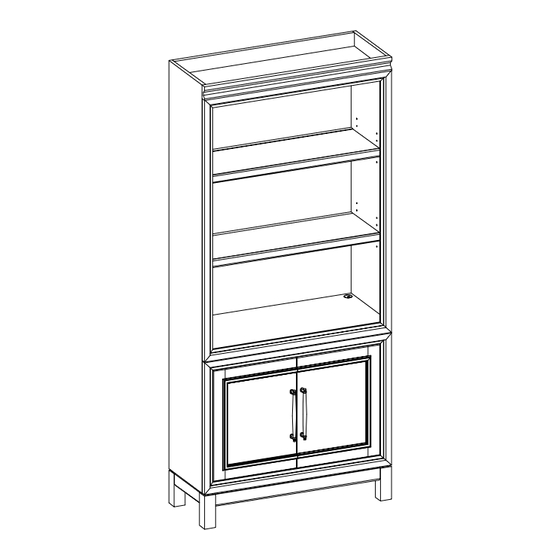

Door Bookcase
UNIT SHOULD BE INSTALLED BY 2 OR MORE PERSONS.
U Shape Bracket
E
F
FOR INDOOR USE ONLY
MADE IN VIETNAM
ASSEMBLY INSTRUCTIONS
R
TOOLS REQUIRED (NOT PROVIDED)
PHILLIPS SCREWDRIVER
COMPONENTS LIST:
Description
No.
Bolt Ø5/16" x 2"
A
Lock Washer Ø5/16"
B
Flat Washer Ø5/16" x 3/4"
C
D
Allen Wrench 4mm
E
U Shape Bracket
F
Wood Screw #8 x 5/8"
COMPONENTS LIST:
Description
No.
1
Case
2
Leg
Attach the U shape brackets (E)
F
to the top of the bookcase with
the screws (F).
Adjustable Wood Shelves
If you prefer to adjust the shelf
location, remove the screws and
move shelf brackets to the
desired location. Then secure the
brackets to shelf with screws.
Leveler on Legs
Quantity
Sketch
8 PCS
8 PCS
8 PCS
1 PC
2 PCS
4 PCS
Quantity
Sketch
1 PC
4 PCS
Adjust the leveler
when necessary
07-01-2024
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furniture Values International aspenhome I3014-332
Summary of Contents for Furniture Values International aspenhome I3014-332
- Page 1 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3014-332 Door Bookcase Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may come loose inside the carton during shipment. WARNING! Before using this product, please read, understand, and follow these instructions. Failure to follow each of these assembly instructions precisely may result in damage to the product and / or injury to the consumer.
- Page 2 aspenhome ASSEMBLY INSTRUCTIONS ITEM NO: I3014-332 Door Bookcase STEP 1: Put the case backside down on a soft surface. STEP 2: Attach the legs to the bottom of case by using 8 bolts(A), lock washers(B), flat washers(C) with the allen wrench(D). Completely tighten all bolts. STEP 3: Return the assembled case to the upright position.
