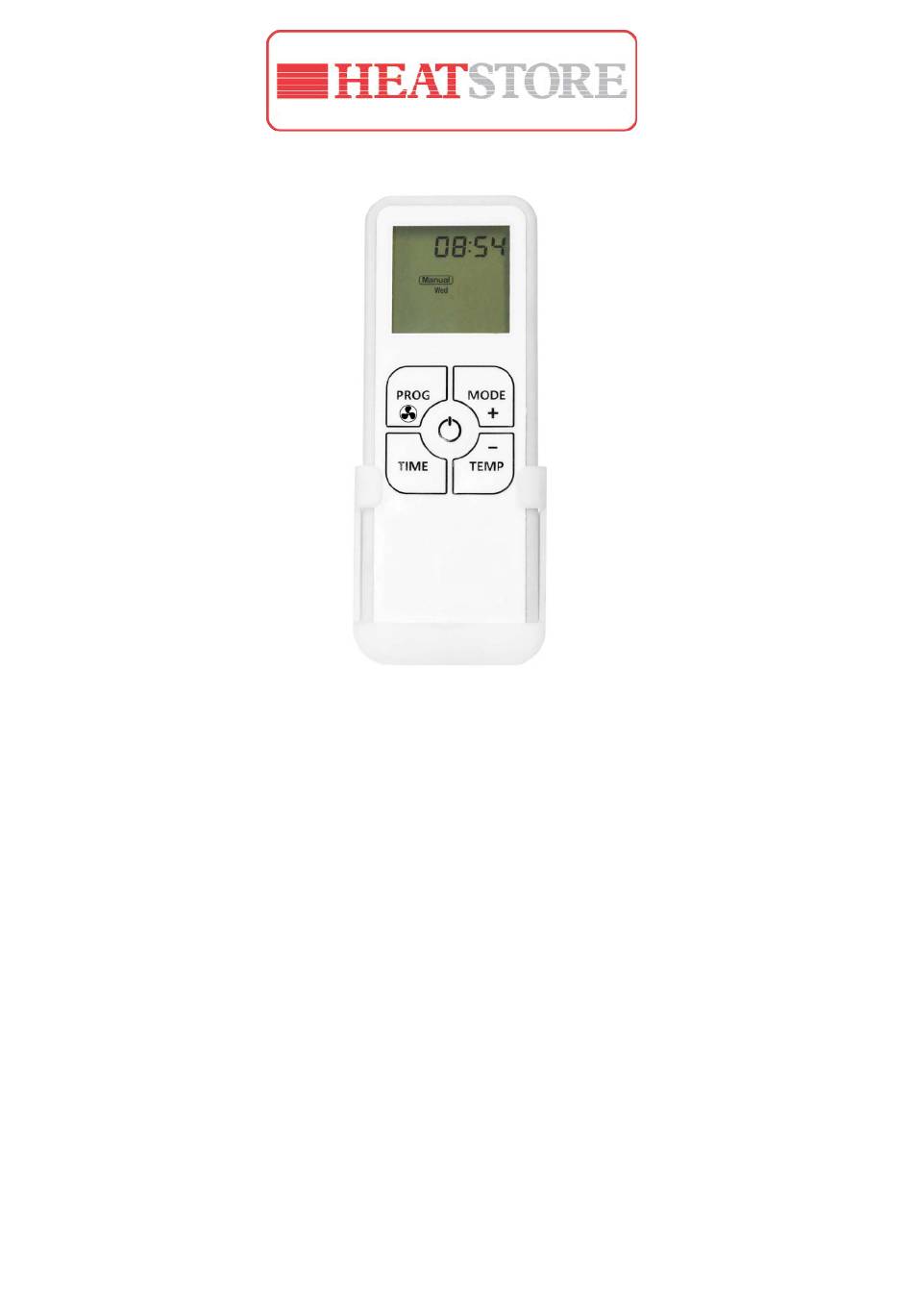

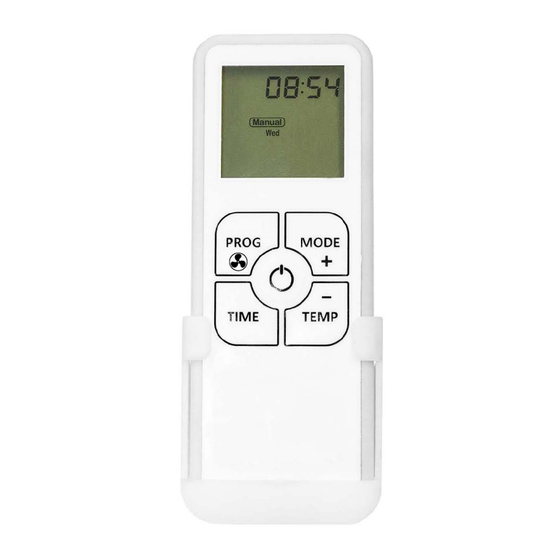

HSRFC1R Wireless Controller
Installation & Control Guide
All electrical appliances produced by the company are guaranteed for two year against faulty materials
or workmanship.
This applies only if the appliance has been used for purposes in accordance with the
instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse,
neglect, damage or modified or repaired by any person not authorised by us. This guarantee is offered to you as
an extra benefit and does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing. In the interests of
progress the Company reserve the right to vary specifications from time to time without notice.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Heatstore HSRFC1R
Summary of Contents for Heatstore HSRFC1R
- Page 1 HSRFC1R Wireless Controller Installation & Control Guide All electrical appliances produced by the company are guaranteed for two year against faulty materials or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.
-
Page 2: Basic Operation
4 seconds the heating will turn off. • The appliance is now ready to be used. Basic operation The HSRFC1R also has a STANDBY MODE. To enter/ exit this mode, press the standby button. In STANDBY MODE, the heating will not be activated and the display will be blank. -
Page 3: Boost Mode
Next, use the + and - buttons to change the tem- perature. Once the temperature is set, you can In this mode, the HSRFC1R will follow the week’s leave the display to return to the main screen and time / temperature program. - Page 4 Heat symbol Displaying the time/temperature Every time there is a demand for heat, the display The HSRFC1R can display either the time & day or the will show the heat icon. room temperature when in one of the 4 standard op- erating modes.
- Page 5 06:00 08:00 12:00 14:00 16:00 22:00 Logic diagram for setting program on HSRFC1R Step 4: Press the PROG button. The temperature should flash. Use the + PROG and - buttons to set the temperature you want to maintain. - SELECT DAY TO SET PROGRAM - SELECT PROGRAM TO SET Step 5: Press the PROG button.
- Page 6 Step 2: Press and hold TIME for 5 seconds to enter the copy day setting. The HSRFC1R has a 7-day, 5-day 2-day and a 24 hour timer available. This can be chosen in the setup menu. Up to 6 programming steps are available for each day. In the programming you can set a start time and a temperature for each program.
-
Page 7: Setup Menu
Setup menu 9 - Closed window detection time Press and hold TEMP and MODE together for 5 seconds. The display will enter the setup menu. Use + and - to change a value. Use TIME to scroll between the settings. A - Temperature rise in closed Use PROG to exit the setup menu window detection time... -
Page 8: Mounting The Controller
When using the HSRFC1R for temperature control, a suitable position in the room should be chosen. Avoid areas with draught or direct sun. Do not position HSRFC1R above or close to the heaters or other heat sources. Damp areas or areas where HSRFC1R can be mechanically damaged should also be avoided. - Page 9 Contact details Heatstore Unit 12, Access 18, Bristol, BS11 8HT Telephone: 0117 923 5375 Email: enquiries@heatstore.co.uk http://www.heatstore.co.uk VERSION 1 01/24...
