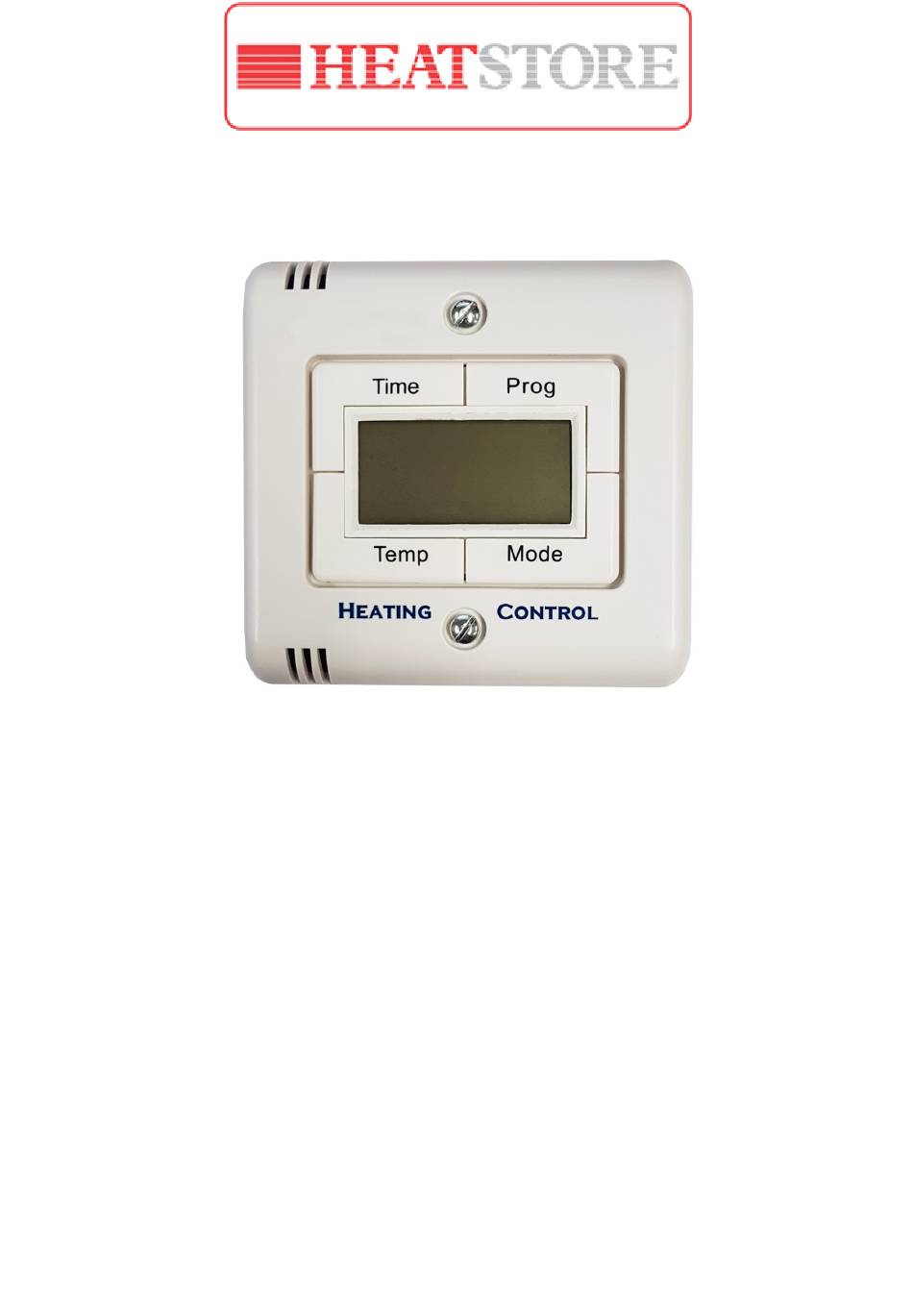

HSTIRF CONTROLLER

Installation & Control Guide for HSTIRF

Wireless Controller

All electrical appliances produced for the Company are guaranteed for one year against faulty material or

workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions

provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage

or modified or repaired by any person not authorised by us. This guarantee is offered to you as an extra benefit and

does not affect your legal rights.

The correct electricity supply voltage is shown on the rating label attached to the appliance.

Reasonable care has been taken to ensure that this guide is accurate at the time of printing. In the interests

of progress the Company reserve the right to vary specifications from time to time without notice.

Heatstore,

Unit 12, Access 18, Bristol BS11 8HT

Tel: 0117 9235375

Fax: 0117 9235374

Web: www.heatstore.co.uk

Table of Contents

Need help?

Do you have a question about the HSTIRF and is the answer not in the manual?

Page 1 HSTIRF CONTROLLER Installation & Control Guide for HSTIRF Wireless Controller All electrical appliances produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.

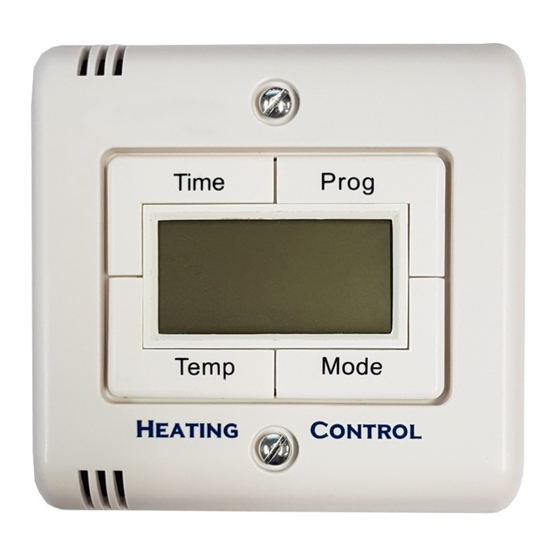

Page 2 Time Prog 1. Getting to know your HSVTRF wireless controller The HSTIRF controller can control an unlimited number of heaters. The controller has 4 operating modes. When a button is pressed, the LCD backlight will turn on. It will stay ON for approximately 10 seconds.
Page 3 Setting Temperature Comfort, Se tback and Boost periods  Press PROG button The comfort and setback temperatures are set during the same procedure. The comfort is set first, Minutes are flashing - use TEMP and MODE followed by the setback. Make sure the mode is buttons to set Minutes.
Page 4 Installation The cont roller is designed to fit onto most single gang back boxes. Please note the pattress screws must be oriented vertically. When a metal box is used this must be earthed. The controller can be powered by either mains 240VAC 50Hz or 12VDC.
