Please read this guide carefully and retain for future use and maintenance.
HSTIRFN
1. Introduction
The HSTIRFN Wireless Controller can control any 'WX' or 'RF' heater, including multiple products at the same time.
The HSTIRFN must be paired to each heater, otherwise the heaters will not work (see section 3).
For options for powering the HSTIRFN see section 16.

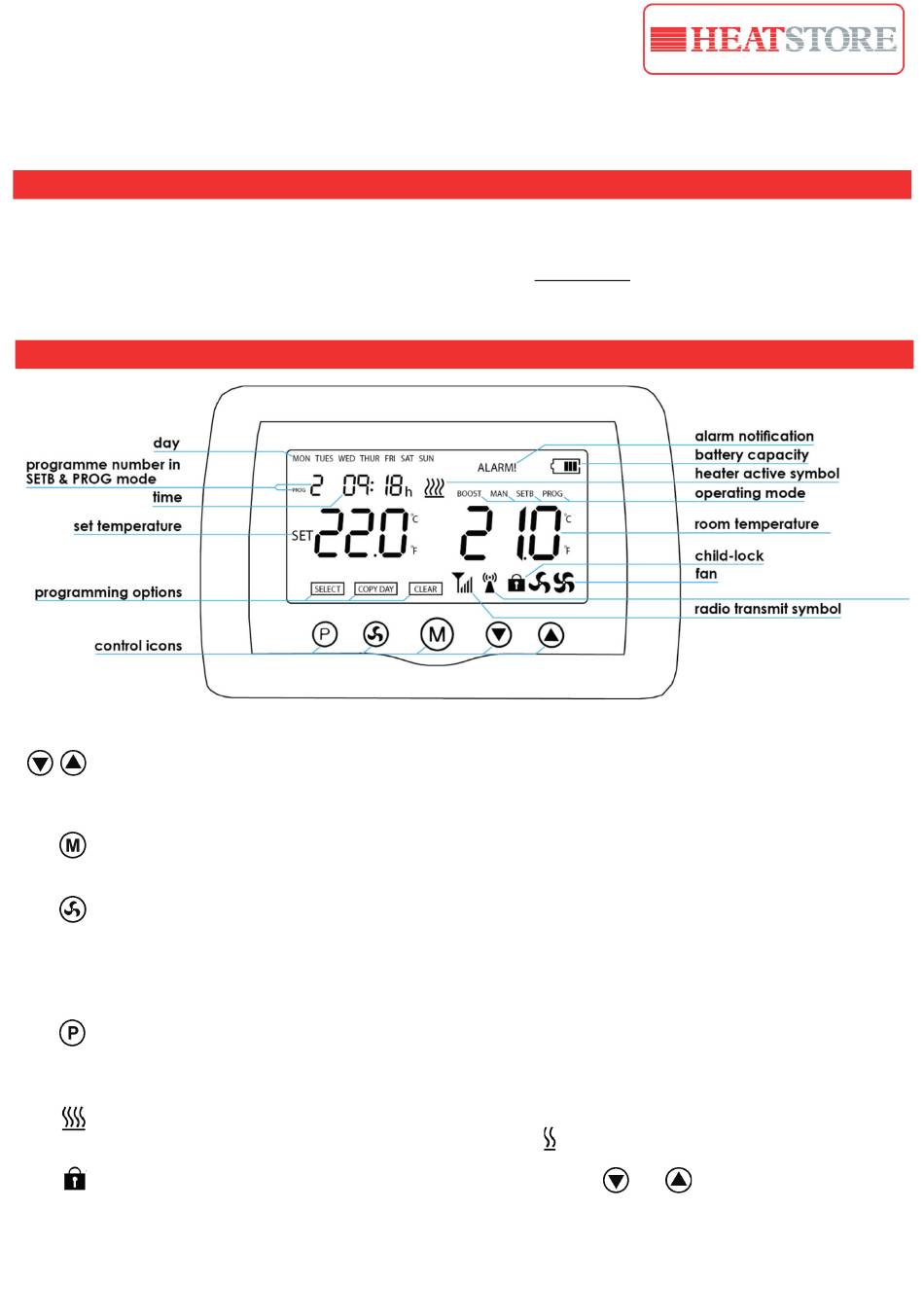

2. Getting to know your HSTIRFN wireless controller
The control icons perform the following basic functions:
Decrease / Increase value: by default this adjusts the set temperature. When the set temperature is adjusted
above the measured room temperature, the heater active symbol is shown and any paired heaters are
switched on.
Mode: cycle through operating modes Boost, Manual, Setback and Program (see sections 6-9).
By default Setback mode is disabled (see section 8).
Fan: cycle through fan speed settings (for fan heaters only). No fan symbol shown means low speed, one fan
symbol is medium speed, two fan symbols is high speed.
Pressing fan when heating is inactive will activate fan only mode (for compatible fan heaters).
In fan only mode, FAN is shown on the display. Exit fan only mode by cycling through the fan speed
settings until FAN is not shown.
Programme: used for advancing programme, setting the time and accessing programming menu.
Important display icons:
Heat icon: this is displayed when the heating is active. WX heaters will operate at reduced heat output when
close to the set temperature, and half the icon is shown:
Lock symbol: this is displayed when the HSTIRFN controls are locked. Hold
unlock or lock the controls.
ALARM! Flashes to indicate an error in the programme setup, e.g. the time for programme 2 is set earlier than the
time for programme 1.
Issue 02
Single Zone
Wireless Controller
Installation and User Guide
connection symbol (not utilised)
and
together for 5 seconds to
1
