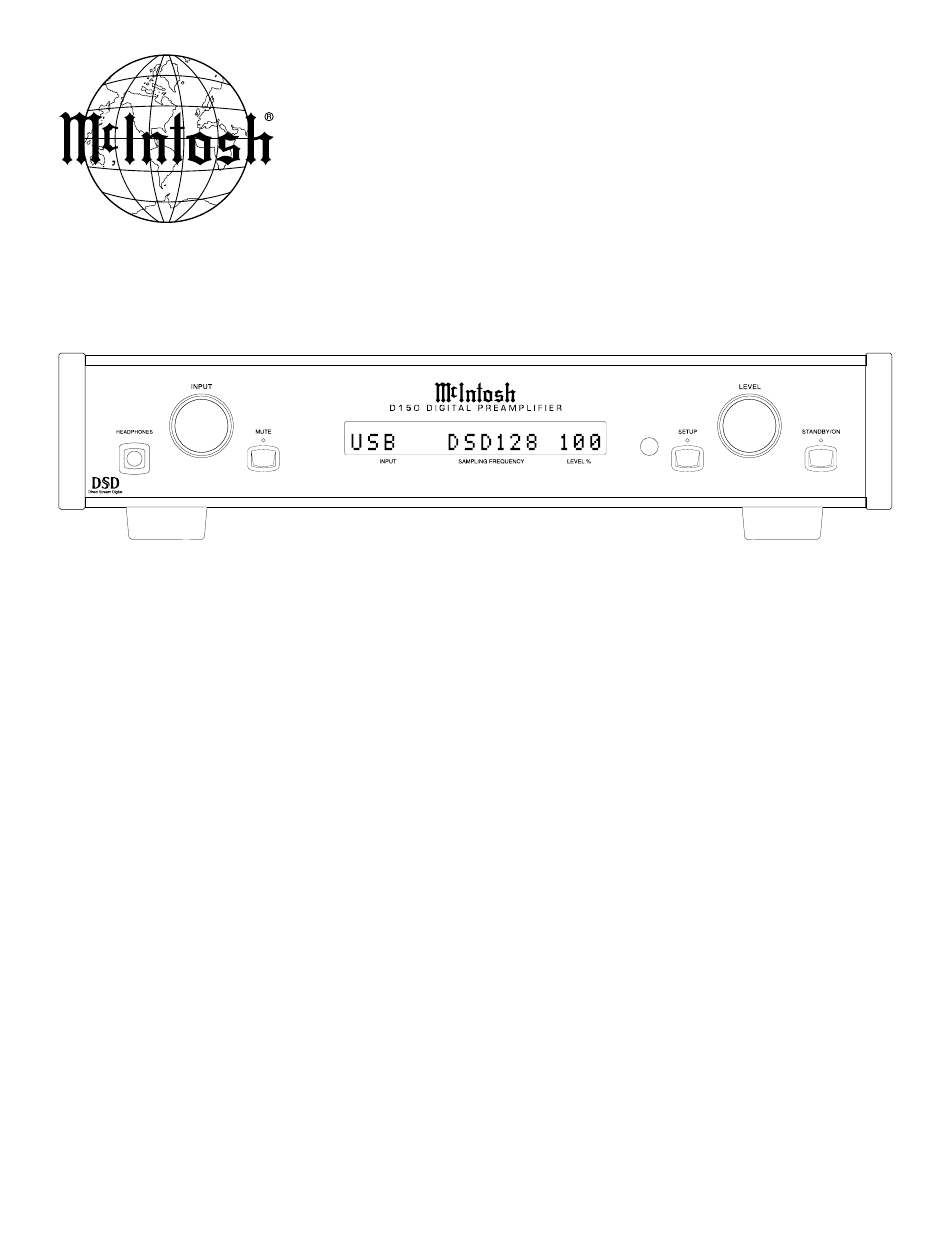

SERVICE MANUAL
D150
DIGITAL PREAMPLIFIER
SERIAL NO. AEA1001 And Above
CONTENTS
Main Schematic and PCB ...................................13 - 24
Display Schematic and PCB................................25 - 28
Control Schematic and PCB ................................29 - 30
Headphone Schematic and PCB .........................31 - 32
Parts List .............................................................33 - 39
Repacking Instruction ................................................41
D150
