DC130 Optical Zoom Camera User Manual
Tips before Use
1、Thank you for choosing our product. To ensure optimal usage and satisfaction,
please carefully review the following instructions.
2、This product is an optical zoom high-definition digital camera.
3、The Wi-Fi name for this product is DV982_xxxxxxx, and the default password is
12345678.
4、This product supports inserting a TF card (microSD, microSDHC, microSDXC) with
a maximum capacity of 256GB. For optimal video recording performance, it is
recommended to use a U3 high-speed card from a reputable brand, featuring a
minimum read speed of 100Mb/s and a write speed of 60Mb/s or higher.
5、The images in this user manual are provided for reference purposes and may not
exactly match the actual product. Please refer to the actual product
functionality.
Functions Description

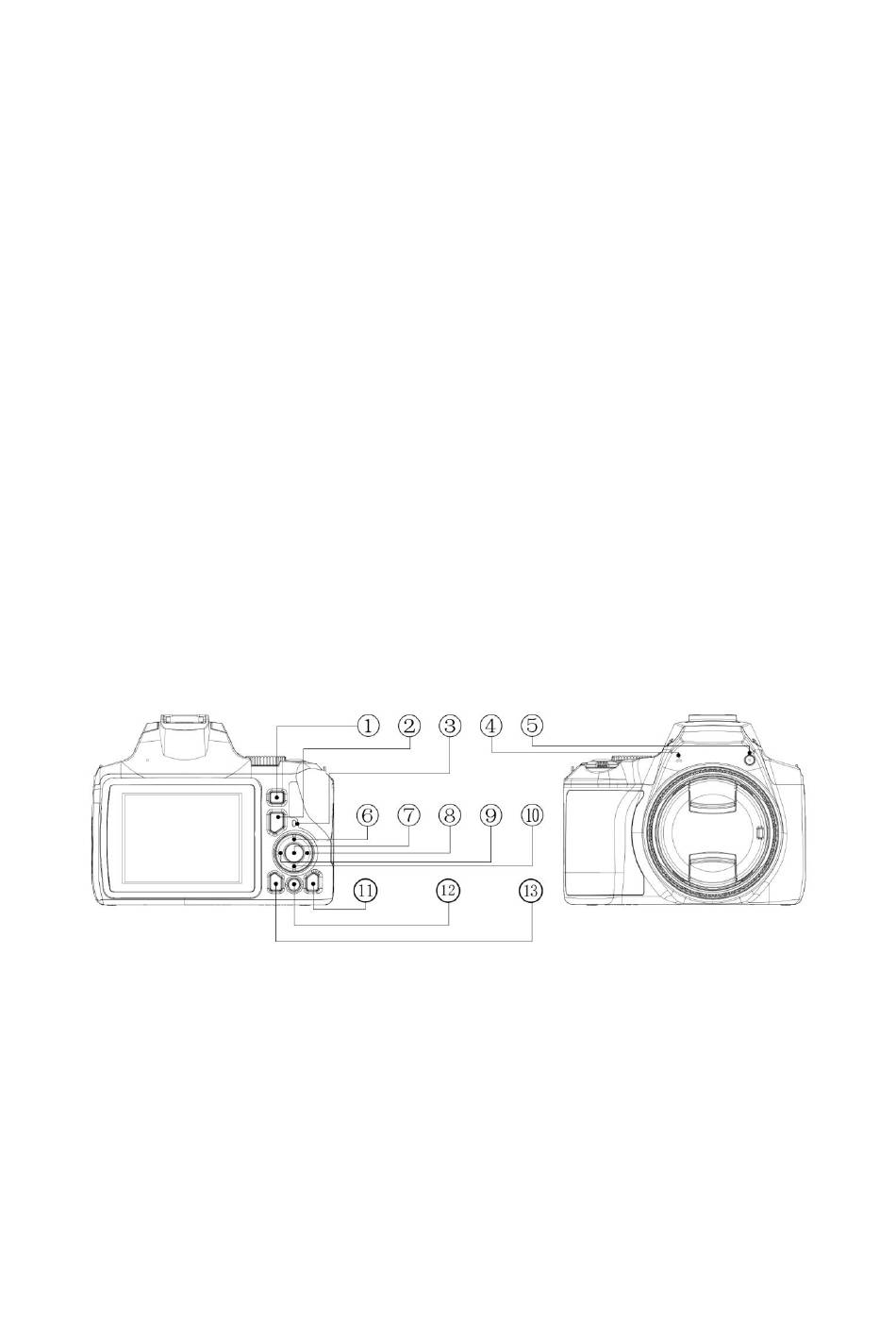

1. Product Appearance
1) Playback button
2) AE/AF LOCK button
3) Indicator light
4) Microphone (MIC)
5) Auxiliary focus light
6) EV (Exposure Value) function
shortcut key
7) Confirm button
8) Flash function shortcut key
9) Macro function shortcut key
10) Timer shortcut key
11) ISO function shortcut key
12) Delete button
13) Menu button
第 1 页 共 12 页
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rollei DC130
Summary of Contents for Rollei DC130
- Page 1 DC130 Optical Zoom Camera User Manual Tips before Use 1、Thank you for choosing our product. To ensure optimal usage and satisfaction, please carefully review the following instructions. 2、This product is an optical zoom high-definition digital camera. 3、The Wi-Fi name for this product is DV982_xxxxxxx, and the default password is 12345678.
- Page 2 14) Flash control 15) Speaker 21) Shutter button 16) Cold shoe 22) Record button 17) MIC interface / Remote control 23) DISP (Display) button interface 24) TYPE-C port / HDMI port 18) Tripod mounting hole 25) Power on/off button 19) Battery and SD card 26) Mode dial for photography 20) T/W (Telephoto/Wide-angle) Keys and Functions Explanation...
- Page 3 Manual Focus Function: When in manual focus mode, the control can be used to adjust the focus. Playback Function: In playback mode, the control can be used to zoom in or out on images. 【 】 Shutter Button: In the preview screen, a light press captures a quick shot, while a firm press takes a photograph.
- Page 4 【 】Playback Button: In the preview screen, a short press enters the playback mode. Use the left and right arrow keys to sequentially view photos and videos. A short press in playback mode returns to the previous level. 【 】Delete Button: In the preview screen, pressing this button quickly enters the delete interface.
- Page 5 - Constantly on during battery charging. - Not lit when the battery is fully charged. 【Green Indicator Light】: - Constantly on when the camera is powered on. - Slow blinking during video recording. - Blinks once after capturing a photo. - Rapid blinking when the flash is activated during photo capture, indicating the battery is supplying power to the flash for approximately 10 seconds.
- Page 6 the EV value options, providing seven choices: +3.0, +2.0, +1.0, +0.0, -1.0, -2.0, -3.0. The default setting is +0.0. 【 】In the focus setting, using the macro shortcut key opens the focus options, providing four choices: Macro (Auto), Macro (Manual), AF (Auto Focus), MF (Manual Focus).
- Page 7 【AWB】: This setting allows you to configure the white balance for your photos. There are five available options: Auto, Daylight, Cloudy, Tungsten, and Fluorescent. The default setting is Auto. Please note that this setting is not supported in scene mode, continuous shooting mode, filter mode, and intelligent scene mode.
- Page 8 【Anti-Shake】: This feature is designed to prevent shake during the photography process. There are two options: On and Off. The default setting is On. 【Date Stamp】: This feature allows you to add a date watermark to your photos, recording the date and time when the photo was taken. When reviewing photos, you can see the date and time in the bottom right corner.
- Page 9 【Recording Sensitivity】: This setting provides three options: Low, Medium, High. The default setting is Medium. System Settings 【Wi-Fi】: This option allows you to enable the camera's Wi-Fi hotspot. You can connect to the camera using a smartphone app. If already connected to a smartphone, you can press the OK button to turn off the Wi-Fi hotspot.
- Page 10 Formatting the SD card will erase all files stored on it. Before performing this operation, ensure you have backed up any important files from the SD card. 【Default】: This function restores all settings to their original factory defaults. 【Version】: This option allows you to check the current software version of the camera.
- Page 11 Notes: 1. Please check the “Help” on the app before use. 2. After entering the setting interface, please return to the Live Preview interface and enable recording. Packaging List (According to Customer Requirements) HD Camera 1pcs NP-120 battery 1pcs TYPE-C USB cable optional lanyard optional...
-
Page 12: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
