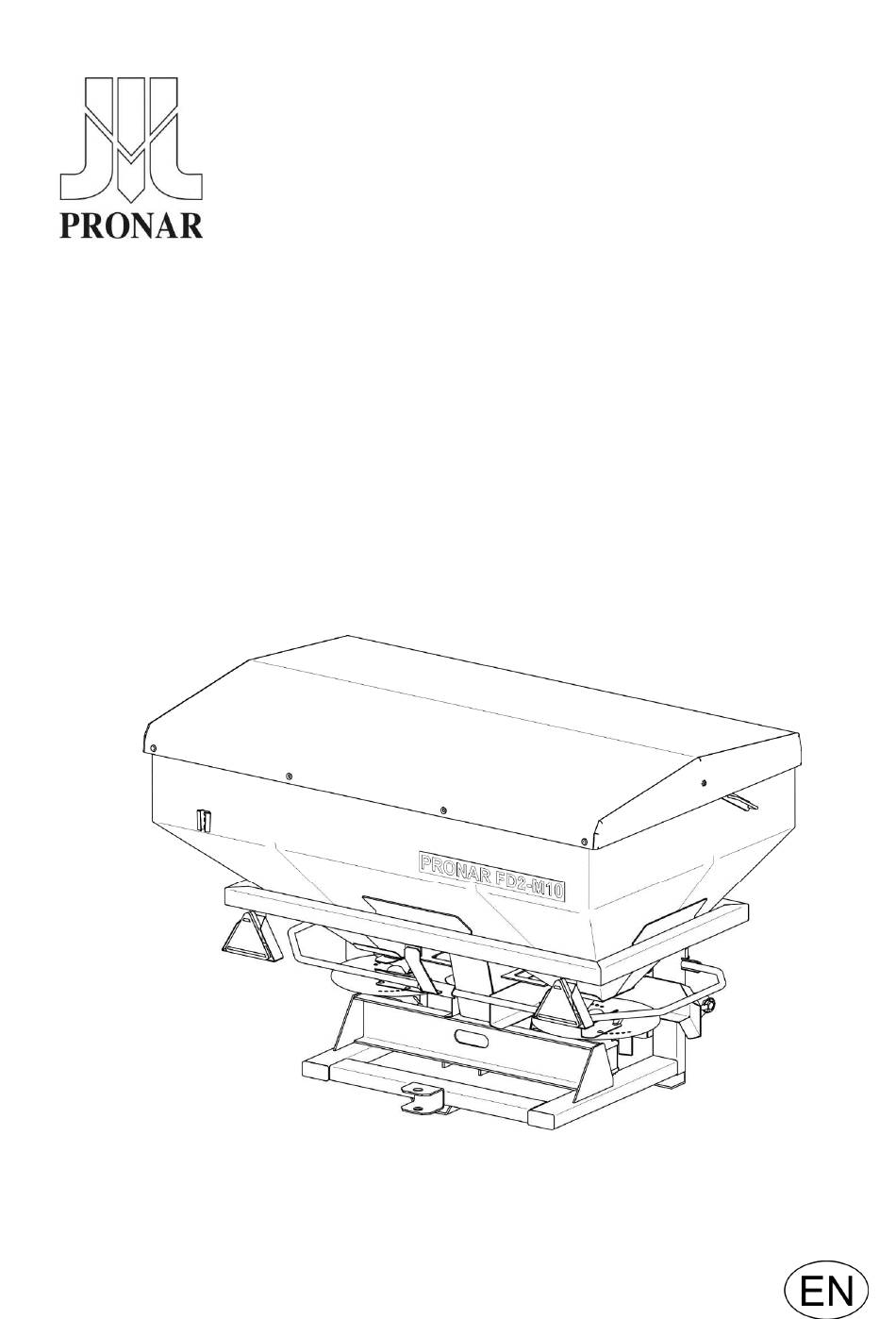

PRONAR FD2-M10 Operator's Manual

Fertilizer spreader

Advertisement

Quick Links

EDITION 1B-05-2011
PRONAR Sp. z o.o.
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE
phone:
fax:
OPERATOR'S MANUAL
FERTILIZER SPREADER
PRONAR FD2-M10
TRANSLATION OF THE ORIGINAL INSTRUCTIONS
+48 085 681 63 29
+48 085 681 63 81
+48 085 681 63 83
PUBLICATION NO 288N-00000000-UM
+48 085 681 64 29
+48 085 681 63 82
+48 085 682 71 10
www.pronar.pl

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD2-M10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for PRONAR FD2-M10

  • Page 1 PRONAR Sp. z o.o. 17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE PROVINCE phone: +48 085 681 63 29 +48 085 681 64 29 +48 085 681 63 81 +48 085 681 63 82 fax: +48 085 681 63 83 +48 085 682 71 10 www.pronar.pl...
  • Page 3 FERTILIZER SPREADER PRONAR FD2-M10 MACHINE IDENTIFICATION FD2-M10 TYPE: SERIAL NUMBER:...
  • Page 4 The machine is designed to meet obligatory standards, documents and legal regulations currently in force. The manual describes the basic safety rules and operation of FD2-M10 fertilizer spreader. If the information stated in the Operator's Manual needs clarification then the user should refer for assistance to the sale point where the machine was purchased or to the Manufacturer.
  • Page 5 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL Information, descriptions of danger and precautions and also recommendations and prohibitions associated with user safety instructions are marked: and also preceded by the word "DANGER”. Failure to observe the instructions may endanger the machine operator's or other person's health or life. Particularly important information and instructions, the observance of which is essential, are distinguished in the text by the sign: and also preceded by the word "ATTENTION".
  • Page 7: Table Of Contents

    TABLE OF CONTENTS BASIC INFORMATION 1.1 IDENTIFICATION 1.2 PROPER USE 1.3 EQUIPMENT 1.4 TERMS & CONDITIONS OF WARRANTY 1.5 TRANSPORT 1.6 ENVIRONMENTAL HAZARDS 1.7 WITHDRAWAL FROM USE SAFETY ADVICE 2.1 BASIC SAFETY RULES 2.1.1 USE OF MACHINE 2.1.2 HITCHING AND UNHITCHING THE MACHINE 2.1.3 TRANSPORTING THE MACHINE 2.1.4...
  • Page 8 3.6 ELECTRICAL SYSTEM CORRECT USE 4.1 PREPARING FOR WORK 4.2 CHECKING TECHNICAL CONDITION 4.3 HITCHING TO TRACTOR 4.3.1 HITCHING TO THE THREE POINT LINKAGE 4.3.2 CONNECTING PTO SHAFT 4.3.3 CONNECTING HYDRAULIC AND ELECTRICAL SYSTEM 4.4 FERTILIZER SPREADER'S SETTINGS 4.4.1 LEVELLING THE MACHINE 4.4.2 SETTINGS OF FERTILIZER DOSE 4.10...
  • Page 9 5.4.2 ADJUSTING THE CLOSING DAMPERS 5.10 5.5 LUBRICATION 5.11 5.6 STORAGE 5.13 5.7 TIGHTENING TORQUE FOR NUT AND BOLT CONNECTIONS 5.14 5.8 TROUBLESHOOTING 5.15...
  • Page 11 SECTION BASIC INFORMATION...
  • Page 12: Identification

    PRONAR FD2-M10 SECTION 1 1.1 IDENTIFICATION FIG. 1.1 Location of the data plate Meaning of data plate items (FIG. 1.1): A - machine name B – type, C – serial number D – year of manufacture E – machine tare weight [kg] F –...
  • Page 13: Proper Use

    PRONAR FD2-M10 1.2 PROPER USE PRONAR FD2-M10 fertilizer spreader is designed for surface spreading of dry, granular or crystalline fertilizers. Use for other purposes should be regarded as improper. Fertilizer spreader may be mounted on agricultural tractors that meet the requirements set out in Table 1.1...
  • Page 14: Equipment

    1.4 TERMS & CONDITIONS OF WARRANTY PRONAR Sp. z o.o., Narew guarantees the reliable operation of the machine when it is used according to its intended purpose as described in the OPERATOR'S MANUAL. Defects discovered during the warranty period will be removed by the Warranty Service.
  • Page 15 SECTION 1 PRONAR FD2-M10 The warranty service only applies to factory defects and mechanical damage that is not due to the user's fault. In the event of damage arising from: • mechanical damage which is the user's fault, caused by road accidents, •...
  • Page 16: Transport

    PRONAR FD2-M10 SECTION 1 1.5 TRANSPORT The machine is prepared for sale completely assembled and does not require packing. Packing is only required for the machine operator's manual and electrical system connection lead. Delivery is either by transport on a vehicle or independently, after being attached to a tractor.
  • Page 17 SECTION 1 PRONAR FD2-M10 FIG. 1.2 Transport lugs (1) - transport lugs inside the tank; (2) - central link bracket FIG. 1.3 Location of centre of gravity of FD2-M10 fertilizer spreader (empty tank)
  • Page 18: Environmental Hazards

    PRONAR FD2-M10 SECTION 1 ATTENTION! Centre of gravity, depending on the machine version varies in the ±50 mm range. 1.6 ENVIRONMENTAL HAZARDS A lubricant leak constitutes a direct threat to the natural environment owing to its limited biodegradability. Maintenance and repair work which involves the risk of a leak should be performed in the rooms with oil resistant surface.
  • Page 19 SECTION 1 PRONAR FD2-M10 ATTENTION During dismantling personal protection equipment shall be used i.e. protective clothing, boots, gloves and protective goggles etc. Avoid contact of skin with lubricant. Do not allow used lubricants to spill.
  • Page 20 PRONAR FD2-M10 SECTION 1 1.10...
  • Page 21: Safety Advice

    SECTION SAFETY ADVICE...
  • Page 22: Basic Safety Rules

    PRONAR FD2-M10 SECTION 2 2.1 BASIC SAFETY RULES 2.1.1 USE OF MACHINE • Before using the machine, the user must carefully read this Operator's Manual and the WARRANTY BOOK. When operating the machine, the operator must comply with the recommendations.
  • Page 23: Hitching And Unhitching The Machine

    SECTION 2 PRONAR FD2-M10 • in terms of safety. In particular, check the technical condition of the hitch system and elements of drive transmission system. 2.1.2 HITCHING AND UNHITCHING THE MACHINE • Carefully read the tractor Operator's Manual. • Do not hitch the machine to the tractor when the linkage systems of machine and tractor are not compatible.
  • Page 24: Maintenance

    • During work, use proper protective clothing, gloves and appropriate tools. • Any modification to the machine frees PRONAR from any responsibility for damage or detriment to health which may arise as a result. • Regularly check the technical condition of the safety devices and correct tightening of bolt connections.
  • Page 25: Machine Operation

    SECTION 2 PRONAR FD2-M10 • Do NOT weld, drill holes in, cut or heat the main structural elements, which have a direct impact on the machine operation safety • In the event of work requiring the machine to be raised, •...
  • Page 26: Operation Of Pto Shaft

    PRONAR FD2-M10 SECTION 2 • When filling the tank, the machine should be mounted on the tractor and lowered to the ground and the tractor's engine should be switched off. • All instructions of the fertilizer producer should be adhered to. If necessary, use personal protection equipment, i.e.
  • Page 27: Description Of Residual Risk

    2.2 DESCRIPTION OF RESIDUAL RISK Pronar Sp. z o. o. in Narew has made every effort to eliminate the risk of accidents. There is, however, a certain residual risk, which could lead to an accident, and this is connected mainly with the actions described below: •...
  • Page 28: Information And Warning Decals

    PRONAR FD2-M10 SECTION 2 • a ban on being on the machine when it is operating 2.3 INFORMATION AND WARNING DECALS All signs should always be legible and clean, visible to the operator and also to persons possibly being in the vicinity of the machine in operation. If any safety sign is lost or illegible, it should be replaced with a new one.
  • Page 29 SECTION 2 PRONAR FD2-M10 ITEM SYMBOL DESCRIPTION Nominal PTO shaft rotation speed is 540 rpm. Required rotation direction of PTO shaft Lifting equipment attachment points while loading the machine Maximum transport speed Machine model Numbers in the item column correspond to decals (FIG. 2.1)
  • Page 30 PRONAR FD2-M10 SECTION 2 FIG. 2.1 Locations of information and warning decals. Meaning of symbols (TAB. 2.1) 2.10...
  • Page 31: Design And Operation

    SECTION DESIGN AND OPERATION...
  • Page 32: Technical Specification

    Number of spreading discs Number of spreading disc blades Charging height Weight of machine ready for operation: Other information – one person operation Level of noise emitted by machine does not exceed 70 dB(A) FIG. 3.1 External dimensions of FD2-M10 fertilizer spreader...
  • Page 33: General Design

    SECTION 3 PRONAR FD2-M10 3.2 GENERAL DESIGN FIG. 3.2 General design (1) - frame; (2) - tank; (3) - spreading disc; (4) - sieve; (5) - dose adjustment mechanism; (6) - electrical system; (7) - drive transmission system; (8) - hydraulic system; (9) - frame with tarpaulin cover (option);...
  • Page 34: Drive Transmission Mechanism

    PRONAR FD2-M10 SECTION 3 3.3 DRIVE TRANSMISSION MECHANISM FIG. 3.3 Design of drive transmission mechanism (1) - central gear; (2) - intersecting axis gears; (3) - coupling; (4) - chain transmission; (5) - mixer; The drive is transmitted to central gear (1) by PTO shaft (not included in the standard equipment of the machine) that is connected to the tractor's PTO.
  • Page 35: Dose Adjustment Mechanism

    SECTION 3 PRONAR FD2-M10 3.4 DOSE ADJUSTMENT MECHANISM FIG. 3.4 Design of dose and spreading direction adjustment mechanism (1) - control levers; (2) - damper; (3) - link; (4) - partition disc; (5) - dosing hole Fertilizer dose is adjusted by means of two levers (1), which control dampers (2) through links (3).
  • Page 36: Hydraulic System

    PRONAR FD2-M10 SECTION 3 3.5 HYDRAULIC SYSTEM FIG. 3.5 Hydraulic system design (1) - hydraulic cylinder; (2) - valve; (3) - hydraulic connection; (4) - conduits Hydraulic system of the fertilizer spreader is used for opening and closing the dampers in the tank bottom.
  • Page 37: Electrical System

    SECTION 3 PRONAR FD2-M10 3.6 ELECTRICAL SYSTEM FIG. 3.6 Hydraulic system design (1) - right lamp; (2) - left lamp; (3) - 7-pole socket; (4) - connection lead Colour designations on electrical diagram: b - white; c - black; k - red; o - brown;...
  • Page 38 PRONAR FD2-M10 SECTION 3...
  • Page 39: Correct Use

    SECTION CORRECT USE...
  • Page 40: Preparing For Work

    PRONAR FD2-M10 SECTION 4 4.1 PREPARING FOR WORK DANGER Before using the machine, the user must carefully read this Operator's Manual. Careless and improper use and operation of the machine, and non-compliance with the recommendations given in this Operator's Manual is dangerous to your health.
  • Page 41 SECTION 4 PRONAR FD2-M10 DANGER Before starting the tractor with the connected machine make sure the PTO drive is not engaged, otherwise it can lead to uncontrolled operation of the machine. ATTENTION! Non-adherence to the recommendations stated in the Operator's Manual or improper use may cause damage to the machine.
  • Page 42: Checking Technical Condition

    PRONAR FD2-M10 SECTION 4 4.2 CHECKING TECHNICAL CONDITION When preparing the machine for normal use, check individual elements according to guidelines presented in table 4.1 TAB. 4.1 TECHNICAL INSPECTION SCHEDULE DESCRIPTION SERVICE OPERATION FREQUENCY Check technical condition of safety Technical condition of safety...
  • Page 43: Hitching To Tractor

    SECTION 4 PRONAR FD2-M10 4.3 HITCHING TO TRACTOR 4.3.1 HITCHING TO THE THREE POINT LINKAGE Fertilizer spreader can be attached to agricultural tractor that meets the requirements contained in Table 1.1 REQUIREMENTS FOR A TRACTOR. DANGER Exercise caution when hitching the machine to tractor.
  • Page 44: Connecting Pto Shaft

    PRONAR FD2-M10 SECTION 4 In order to hitch the machine to the tractor (FIG. 4.1) • Reverse the tractor and bring the lower links of the tractor's three point linkage close to mounting points (A) on the fertilizer spreader frame.
  • Page 45: Connecting Hydraulic And Electrical System

    SECTION 4 PRONAR FD2-M10 FIG. 4.2 Connecting PTO drive shaft (1)- drive shaft of intersecting axis gear; (2)- PTO shaft (not included in the machine standard equipment) CAUTION The tractor PTO drive may be engaged only when the fertilizer spreader is lifted to working position 4.3.3 CONNECTING HYDRAULIC AND ELECTRICAL SYSTEM...
  • Page 46 PRONAR FD2-M10 SECTION 4 FIG. 4.3 Connecting the electrical system and hydraulic system (1) - hydraulic conduit connector; (2) - electrical system connection lead; (3) - 7-pole socket; (4) - levers for opening and closing the dampers in the tank Insert hydraulic conduit connector (1) to the socket of the tractor external hydraulic system.
  • Page 47: Fertilizer Spreader's Settings

    SECTION 4 PRONAR FD2-M10 4.4 FERTILIZER SPREADER'S SETTINGS 4.4.1 LEVELLING THE MACHINE For optimum operation, position the fertilizer spreader body (FIG. 4.4) in such a manner as to ensure that the rotation axis of the spreading disc is set at an angle of 90° to ground surface.
  • Page 48: Settings Of Fertilizer Dose

    PRONAR FD2-M10 SECTION 4 in such a manner as to ensure that the distance between the spreading disc and the ground does not exceed 850 mm. 4.4.2 SETTINGS OF FERTILIZER DOSE Various characteristics of fertilizers (e.g. dampness, granulation, specific weight), influence of wind and rotation speed of the spreading disc determine the spreading parameters.
  • Page 49: Settings Of Spreading Width

    SECTION 4 PRONAR FD2-M10 4.4.3 SETTINGS OF SPREADING WIDTH Spreading width (FIG. 4.6) is adjusted by changing the position of blades on the spreading disc. Spreading width is increased by shifting the blades in the direction of spreading disc rotation. Each spreading disc is equipped with two blades: long one and short one. The long blade determines the external area of spreading width while the short blade determines the internal area of spreading width.
  • Page 50: Controlling Fertilizer Dose

    PRONAR FD2-M10 SECTION 4 4.4.4 CONTROLLING FERTILIZER DOSE FIG. 4.7 Controlling fertilizer dose when the fertilizer spreader is parked (1) - bolt; (2) - left spreading disc; (3) - chute; (4) - bracket; (5) -container for fertilizers; (6) - fertilizer dose adjustment lever for the right spreading disc; (7) - fertilizer dose...
  • Page 51 SECTION 4 PRONAR FD2-M10 the fertilizer dose, the fertilizer spreader should be hitched to tractor and the left chamber (looking in the direction of tractor travel) of the tank should be half full. Tank loading method is described in point 4.5.1 LOADING THE TANK.
  • Page 52 PRONAR FD2-M10 SECTION 4 TAB. 4.2 PARAMETERS FOR CONTROLLING FERTILIZER DOSE WHEN THE FERTILIZER SPREADER IS PARKED DAMPERS OPENING TIME (T) SPREADING MULTIPLIER OF TOTAL WIDTH AMOUNT OF SPREAD EXPECTED TRAVEL SPEED FERTILIZER 8 km/h 10 km/h 12 km/h More precise results can be obtained by checking the amount of spread fertilizer during travel (FIG.
  • Page 53 SECTION 4 PRONAR FD2-M10 FIG. 4.8 Controlling fertilizer dose during travel A - beginning of measuring distance; (B) - end of measuring distance; (X) - length of measuring distance; (M) - weight of fertilizer collected during the test TAB. 4.3...
  • Page 54: Operating The Fertilizer Spreader

    PRONAR FD2-M10 SECTION 4 4.5 OPERATING THE FERTILIZER SPREADER 4.5.1 LOADING THE TANK DANGER Loading may be performed only if the fertilizer spreader is switched off, hitched to tractor and lowered to the ground. Be especially careful when loading the fertilizer spreader with front loader.
  • Page 55 SECTION 4 PRONAR FD2-M10 The fertilizer spreader's tarpaulin cover (1) (if any) should be raised before tank loading (FIG. 4.9). To do this, remove securing cables from the tank catches, shift lever (2) and raise the frame with tarpaulin cover (the levers are located on both sides of the tank) Before loading the tank, make certain that there are no remains of fertilizer or other objects in the tank.
  • Page 56: Fertilizer Spreading

    PRONAR FD2-M10 SECTION 4 ATTENTION Do not exceed permissible load capacity of the fertilizer spreader (see technical data) and permissible total weight of the cooperating tractor. 4.5.2 FERTILIZER SPREADING DANGER The machine drive system can be controlled only from the tractor cab.
  • Page 57 SECTION 4 PRONAR FD2-M10 FIG. 4.11 Opening and closing the hydraulic dampers (I) - damper valve is open; (0) - damper valve is closed; (A) - left-sided spreading; (B) - right-sided spreading; (C) - symmetrical spreading 4.19...
  • Page 58 PRONAR FD2-M10 SECTION 4 Pay attention to spreading width (B), successive tractor tracks (FIG. 4.12) should be evenly spaced. When turning or stopping the tractor, the dampers of dosing holes should be closed hydraulically from the tractor cab. At the ends of the field and when starting a new track, take into account the rear range (A) of the spreading zone and properly close and open the tank dampers.
  • Page 59: Transporting The Machine

    SECTION 4 PRONAR FD2-M10 In order to prevent clogging of fertilizer spreader's tank: • Before loading the tank, make certain that there are no remains of fertilizer or other objects in the tank. • Use sieved fertilizers whose humidity does not exceed 12%.
  • Page 60 PRONAR FD2-M10 SECTION 4 • When driving on public or private roads, respect the road traffic regulations, exercise caution and prudence. Listed below are the key guidelines. • Make sure that the machine is correctly attached to the tractor, and linkage is properly secured.
  • Page 61 SECTION 4 PRONAR FD2-M10 of the tractor and is not higher than 5 000 kg and the maximum travel speed of 20 km/h (not on the public roads). FIG. 4.14 Hitch for double axle trailer DANGER Do NOT drive on public roads with a trailer hitched to the rear hitch of the fertilizer spreader.
  • Page 62: Unhitching From Tractor

    PRONAR FD2-M10 SECTION 4 4.7 UNHITCHING FROM TRACTOR DANGER Before unhitching the machine from the tractor, turn off the tractor engine, engage the parking brake and secure cab against access of third persons. Be especially careful when unhitching the machine from the tractor.
  • Page 63 SECTION 4 PRONAR FD2-M10 DANGER Empty the fertilizer tank before unhitching the fertilizer spreader from the tractor. DANGER Reduce pressure prior to disconnecting the hydraulic system. In order to disconnect the fertilizer spreader from the tractor, proceed as follows: • Disengage PTO drive, lower the fertilizer spreader until it fully rests on the ground.
  • Page 64 PRONAR FD2-M10 SECTION 4 FIG. 4.16 Mounting the levers for opening and closing the dampers (1), (2), (3) - successive stages of mounting FIG. 4.17 Unhitching from tractor (1) - lighting system lead; (2) - hydraulic coupler; (3) - protecting socket; (4) - pins of lower links 4.26...
  • Page 65 SECTION 4 PRONAR FD2-M10 FIG. 4.18 PTO shaft bracket (1) - PTO shaft bracket; (2) - PTO shaft; ATTENTION! Do NOT use the securing chains to support the shaft while machine is parked or when transporting the machine. 4.27...
  • Page 66 PRONAR FD2-M10 SECTION 4 4.28...
  • Page 67: Maintenance

    SECTION MAINTENANCE...
  • Page 68: Hydraulic System Operation

    PRONAR FD2-M10 SECTION 5 5.1 HYDRAULIC SYSTEM OPERATION The duties of the operator connected with the hydraulic system include: • checking leaktightness of hydraulic connections; • checking technical condition of hydraulic lines and quick couplers; DANGER Do not repair hydraulic system on your own. All hydraulic system repairs must be performed only by suitably qualified personnel.
  • Page 69 SECTION 5 PRONAR FD2-M10 TAB. 5.1 HL32 hydraulic oil characteristics ITEM NAME VALUE ISO 3448VG viscosity classification Kinematic viscosity at 40° C 28.8 – 35.2 mm ISO 6743/99 quality classification DIN 51502 quality classification Flash point, Above 210° C Maximum operating temperature, Spilt oil should be immediately collected and placed in marked tight container.
  • Page 70: Drive Transmission Mechanism Maintenance

    PRONAR FD2-M10 SECTION 5 5.2 DRIVE TRANSMISSION MECHANISM MAINTENANCE 5.2.1 MAINTENANCE OF INTERSECTING AXIS GEARS DANGER Maintenance of the fertilizer spreader's drive transmission mechanism can be carried out only if the tractor's engine is switched off and the machine is lowered.
  • Page 71 SECTION 5 PRONAR FD2-M10 To check the grease level in intersecting axis gears: • set the machine horizontally, unscrew plugs (FIG. 5.1) • grease level should reach the lower edge of the plug opening, • if necessary, add grease. DANGER When checking oil and grease level and changing oil and grease, use appropriate personal protection equipment i.e.
  • Page 72: Maintenance Of Chain Transmission

    PRONAR FD2-M10 SECTION 5 5.2.2 MAINTENANCE OF CHAIN TRANSMISSION DANGER Before you begin the adjustment, turn off the machine drive and ensure that unauthorised persons have no access to the vehicle cab. In order to check the condition of the chain and make adjustments (FIG. 5.2), unscrew 4 bolts (2) and remove cover (1).
  • Page 73: Replacing Spreading Disc Blades

    SECTION 5 PRONAR FD2-M10 Check the condition and lubricate the chain every 40 working hours. Lubricate the chain with graphite grease. 5.3 REPLACING SPREADING DISC BLADES DANGER Spreading disc blades may be checked and replaced only if the machine is disconnected from the tractor.
  • Page 74 PRONAR FD2-M10 SECTION 5 Technical condition of spreading disc blades should be checked periodically paying attention to mechanical damage, excessive wear and completeness of securing elements. Before dismantling the blades, pay attention to their setting in proper adjusting holes. In order to replace spreading disc blades (FIG. 5.3): •...
  • Page 75: Adjustment Of Dampers

    SECTION 5 PRONAR FD2-M10 5.4 ADJUSTMENT OF DAMPERS 5.4.1 ADJUSTMENT OF DAMPERS OF FERTILIZER DOSE CHANGING MECHANISM DANGER Spreading disc blades may be checked and replaced only if the machine is disconnected from the tractor. FIG. 5.4 Adjustment of fertilizer dose changing levers (A) - levers in open position;...
  • Page 76 PRONAR FD2-M10 SECTION 5 Dose adjustment mechanism is set in the factory by the Manufacturer. Readjustment may be necessary if individual elements are replaced (FIG. 5.4). Check position of dampers in extreme position of levers (A) and (B). When the levers are set in position (A), dosing holes in the tank should be maximally open, indicator (3) on the disc should be set on the value of „100”.
  • Page 77 SECTION 5 PRONAR FD2-M10 FIG. 5.5 Adjusting the closing dampers (A) - dampers open position; (B) - dampers closed position; (1) - adjustment nuts; (2) - link; (3) - hydraulic cylinders 5.5 LUBRICATION DANGER Lubrication may only be performed when the machine is disconnected from the tractor.
  • Page 78 PRONAR FD2-M10 SECTION 5 FIG. 5.6 Lubrication points Lubrication points described in table 5.3 5.12...
  • Page 79 SECTION 5 PRONAR FD2-M10 TAB. 5.3 LUBRICATION POINTS AND LUBRICATION FREQUENCY NUMBER OF TYPE OF LUBRICATION ITEM NAME LUBRICATION GREASE FREQUENCY POINTS semi-fluid Left intersecting axis gear inspect once a year grease semi-fluid Right intersecting axis gear inspect once a year...
  • Page 80 PRONAR FD2-M10 SECTION 5 If the machine shall not be used for a long period of time, protect it against adverse weather conditions. Lubricate machine according to the instructions provided. In the event of prolonged work stoppage, it is essential to lubricate all elements regardless of the period of the last lubrication process.
  • Page 81 SECTION 5 PRONAR FD2-M10 ATTENTION! Should it be necessary to change individual parts, use only original parts or those indicated by the Manufacturer. Non-adherence to these requirements may put the user and other people's health and life at risk, and also damage the machine.
  • Page 82 PRONAR FD2-M10 SECTION 5 5.16...
  • Page 83 ANNEX A The PRONAR FD2-M10T fertiliser spreader application rate tables. The control lever position depends on the fertilizer type, spreading width, ground speed and the desired application rate. The following figure shows an example of an application rate table: • Fertiliser type (A): Potassium salt granules 60% K2O •...
  • Page 84 SUPERFOSFAT 20 P(Ca,S) Spreading Ground Control lever position width speed [km/h] POTASSIUM SALT GRANULES 60% K2O Spreading Ground Control lever position width speed [km/h]...
  • Page 85 AMMONIUM NITRATE N 32% Spreading Ground Control lever position width speed [km/h] 1064 POLIDAP complex inorganic fertilizer NP(S) 18-46-(5) Spreading Ground Control lever position width speed [km/h]...
  • Page 86 POLIFOSKA 8 NPK(S) 8-24-24-(9) Spreading Ground Control lever position width speed [km/h]...
  • Page 87 NOTES ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………….. …………………………………………………………………………………………………………………………………..
