Step 8 (Option)

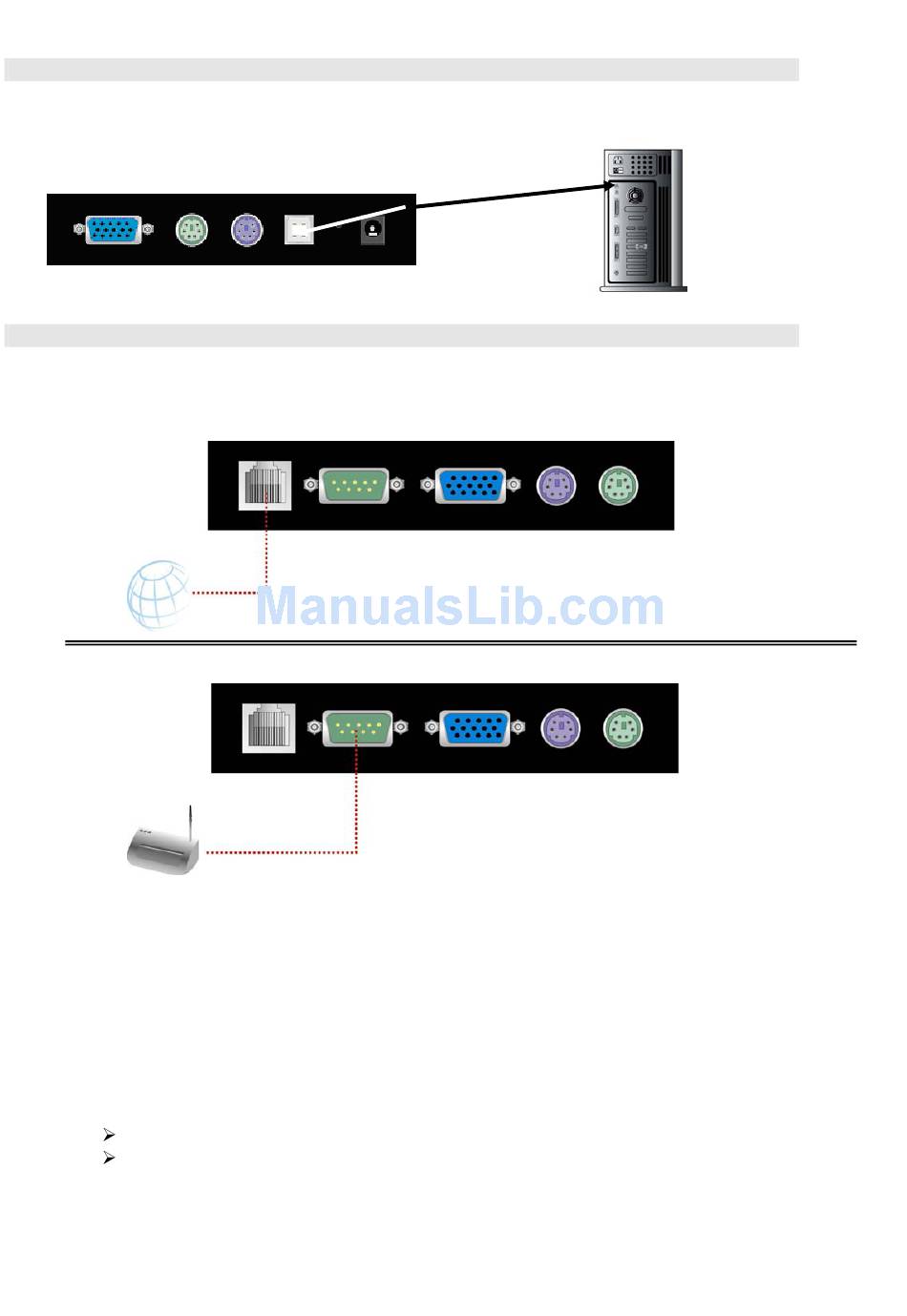

Connect the type A connector of USB A-B cable to the USB port of the host system, while using
remote mass storage control. USB type A plug of USB A-B cable to the computer.
Step 8
Connect Ethernet and/or modem or both communication ports simultaneously, depending on how you
want to access DKVM-IP1 switch
3.2.1 Ethernet connection
The rear side of DKVM-IP1 switch provides a RJ-45 connector for Ethernet. The connector is used
either for a 100 Mbps 100BASE-TX connection or for a 10 Mbps 10BASE-T connection. The adapter
can sense the connection speed and will adjust to the appropriate operation mode automatically.
3.2.1.1 10 Mbps Connection
For 10BASE-T Ethernet networks, the Ethernet adapter uses Category 3, 4, 5 or 6 UTP
cable. To establish a 10 Mbps connection, the cable must be connected to a 10BASE-T
hub.
Make sure that the cable is wired appropriately for a standard 10BASE-T adapter.
Align the RJ-45 plug with the notch on the adapter's connector and insert it into the
adapter's connector.
3.2.1.2. 100 Mbps Connection
For 100BASE-TX Fast Ethernet networks, DKVM-IP1 switch supports Category 5 or 6 UTP
cabling. To establish a 100 Mbps connection, the cable must be connected to a
Ethernet Cable
Modem
