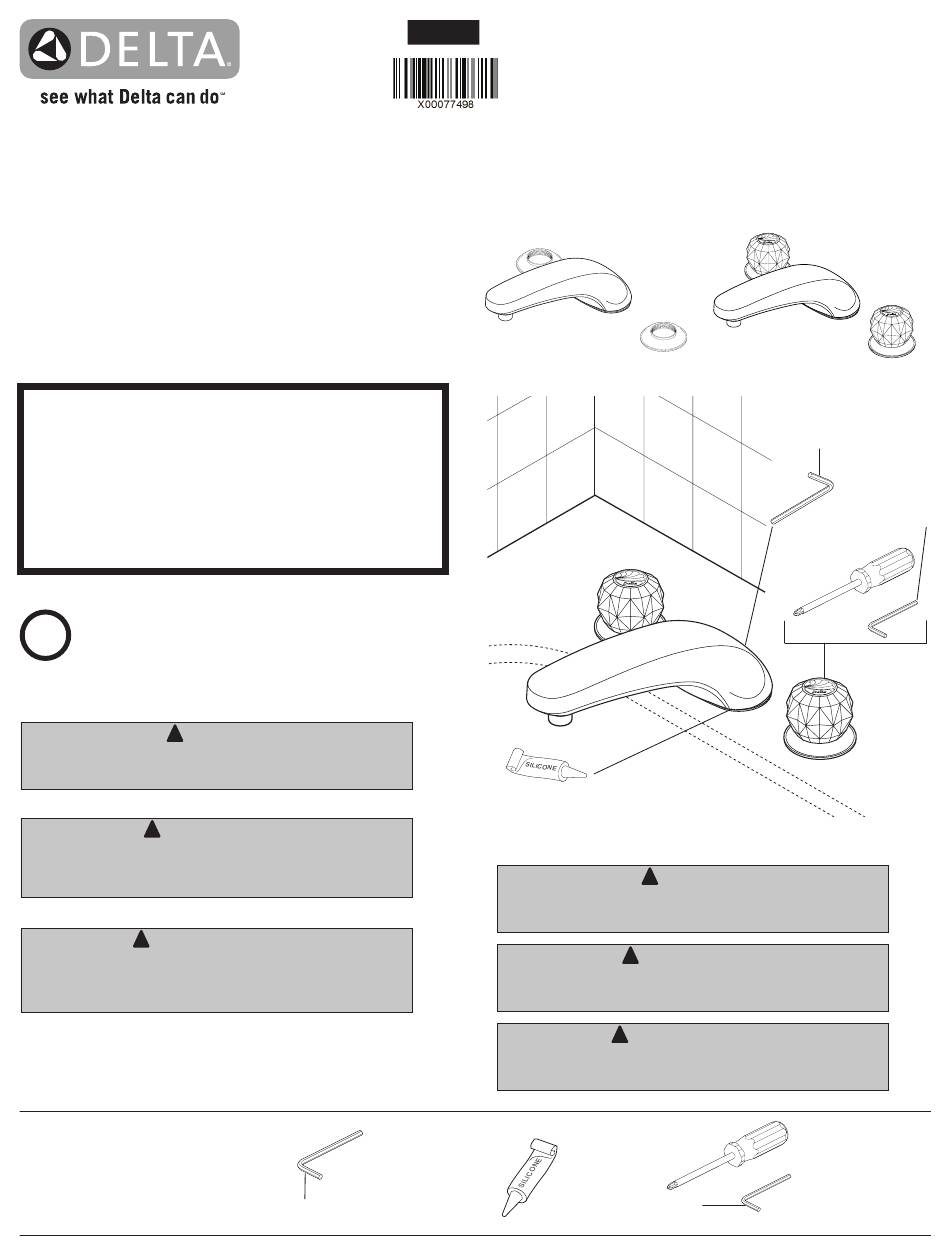

Two handle roman tub trim

Advertisement

Models/Modelos/Modéles
T2710
Series/Series/Seria
Date of Purchase: ____________________
Fecha de compra
Date d'achat
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder
a documentos técnicos adicionales e información del
producto, visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
1-800-345-3358
www.deltafaucet.com/service-parts
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto.
El fabricante no asume ninguna responsabilidad por la falla del producto
debido a una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut
entraîner des blessures, des dommages matériels ou le bris du produit. Le
fabricant se dégage de toute responsabilité à l'égard d'un bris du produit
causé par une mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
06/26/2024
77498
1/8" (3.17mm)

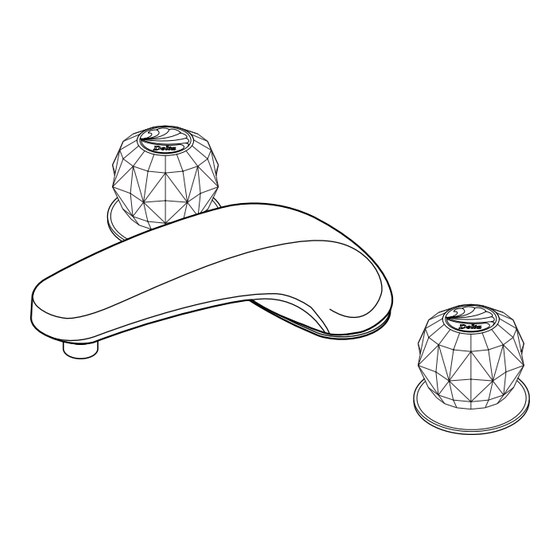

TWO HANDLE ROMAN TUB TRIM
LLAVE Y SUS ACCESORIOS
PARA BA—ERA ROMANA DE DOS
MANIJAS (MANERALES)
ACCESSOIRES DE FINITION DE
ROBINET À DEUX POIGNÉES
POUR BAIN ROMAIN
!
CONSULT LOCAL PLUMBING CODES TO DETERMINE WHETHER A
WATER-TEMPERATURE-LIMITING DEVICE IS REQUIRED IN YOUR
INSTALLATION.
ADVERTENCIA
!
CONSULTE LAS NORMAS LOCALES DE PLOMERÍA PARA DETERMINAR
SI SU INSTALACIÓN REQUIERE UN DISPOSITIVO QUE LIMITE LA
TEMPERATURA DEL AGUA.
AVERTISSEMENT
!
CONSULTEZ LES CODES DE PLOMBERIE MUNICIPAUX POUR SAVOIR
SI UN LIMITEUR DE TEMPÉRATURE DE L'EAU EST REQUIS POUR
VOTRE INSTALLATION.
T E FLO N
3/32" (2.38mm)
1
1/8" (3.17mm)
RP18356
Spout Assembly
3750018
WARNING
3/32" (2.38mm)
77498
Rev. F
