WOODHURST
TM
Models/Modelos/Modéles
T2732 & T4732
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
1/8" (3.17mm)
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To complete the deck and valve rough-in prior to
installing this trim kit.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Para completar el borde y la instalación de
válvulas dentro de las paredes previa a la
instalación de la llave y sus accesorios.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de déb-
uter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Installez le corps du robinet et terminez le
pourtour du bain avant de poser les accessories
de finition.
www.deltafaucet.com
93778
3/32" (2.38mm)
TWO HANDLE ROMAN TUB TRIM
LLAVE Y SUS ACCESORIOS PARA BAÑERA
ROMANA DE DOS MANIJAS (MANERALES)
ACCESSOIRES DE FINITION DE ROBINET
À DEUX POIGNÉES POUR BAIN ROMAIN
T2732
1
T4732
1/8" (3.17mm)
11/20/2017
Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Delta WOODHURST T2732
Summary of Contents for Delta WOODHURST T2732
- Page 1 1/8" (3.17mm) • To complete the deck and valve rough-in prior to installing this trim kit. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
- Page 2 Model / Modelo / Modèle T2732 Model / Modelo / Modèle T4732 RP100152p Lift Rod Assembly Ensamble de la barrita de alzar Tirette RP100153p Finial & Stud Pomo y Semental RP84838p Grain et Goujon RP84838p Set Screw & Button Set Screw & Button Tornillo de Ajuste y Tornillo de Ajuste y botón...
- Page 3 B. T4732 RP40668 Diverter Assembly Ensamble del Desviador Dérivation Maintenance Model T4732 If faucet leaks from spout outlet: Shut off water supplies – If faucet does not divert water from the spout to the hand shower, check that Replace Seats and Springs (1). * the lift rod (1) is securely threaded into the diverter (2).
- Page 4 T2732 T2732 T4732 3/32" (2.38 mm) 3/32 po NOTE: The deck and valve rough-in must be finished before installing the trim kit. For Models T2732 Only Option: Use silicone under the gasket if deck is uneven. Install gasket Model T2732 (2) and spout (1) on the spout adapter (3).
- Page 5 T4732 T4732 T4732 T4732 For Model T4732 Only Slide hose (3) through conical nut (4). Attach hose (3) to braided Install lift rod (1). Screw the lift rod until it drops down and metal hose (5) using gasket (6) and tighten. DO NOT install hand rotates freely.
- Page 6 T2732 T4732 Model T2732 Install handles. Remove stream straightener and gasket (1) with wrench (2). Turn faucet handles Be sure valve cartridge is in off position. (3) all the way on. Turn on hot and cold water supplies and flush water lines for For correct handle assembly, look for the HOT/COLD markings on top one minute.
- Page 7 T4732 T4732 For Models T4738 Only Pull hose (1) to its farthest extension and point it down into the Attach hand piece (3) to hose (4) with gasket (5) between tub. Pull the lift rod (2) up to the full on position and flush water connection.
- Page 8 Delta ® Esta es la garantía exclusiva por escrito de Delta Faucet Company y la garantía no es transfer- ible. Delta Faucet Company no será responsable por cualquier daño a la llave de agua que resulte del mal uso, abuso, negligencia o mala instalación o mantenimiento o reparación incorrecta, incluy-...
Need help?
Do you have a question about the WOODHURST T2732 and is the answer not in the manual?
Questions and answers

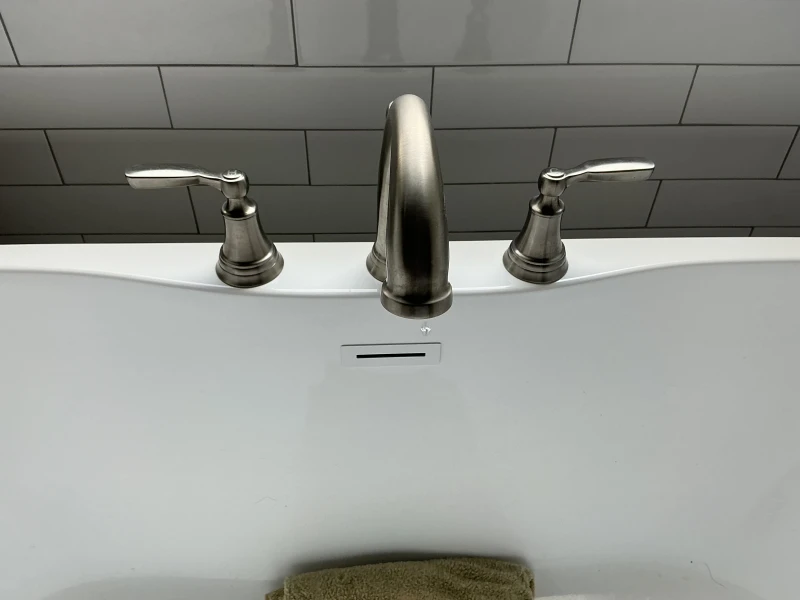

How do I take the handles off the WOODHURST collection delta mounted Roman tub filler model T2732-ss
