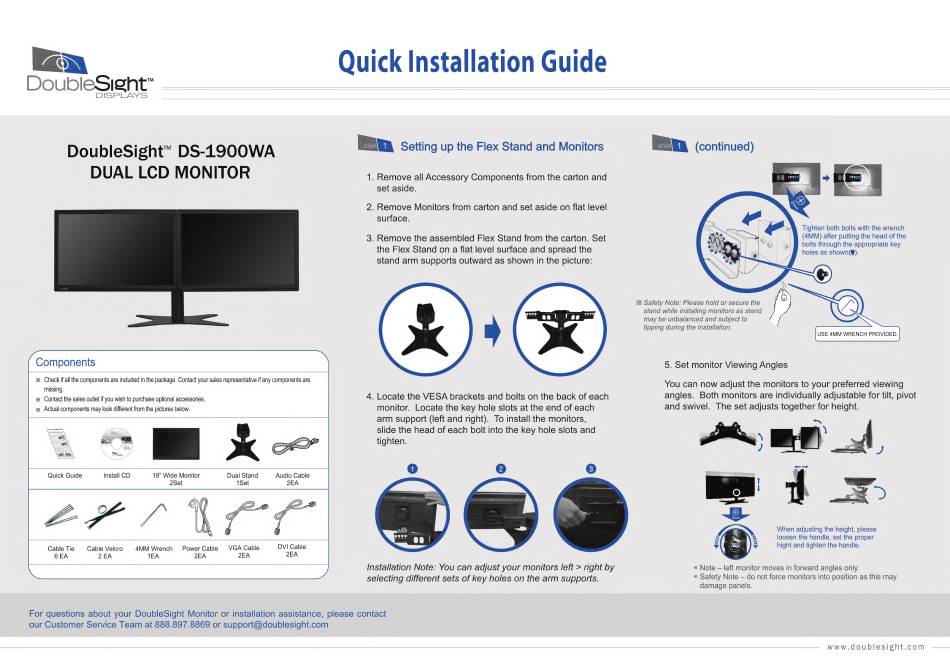

DoubleSight DS-LOOOWA Quick Installation Manual

A Quick Installation Guide
DoubleSight™
DISPLAYS
set aside.
2. Remove Monitors from carton and set aside on flat level
surface.
Tighten both bolts with the wrench
(4MM) after putting the head of the
bolts through the appropriate key
holes as shown(@).
3. Remove the assembled Flex Stand from the carton. Set
the Flex Stand on a flat level surface and spread the
stand arm supports outward as shown in the picture:
X Safety Note: Please hold or secure the
stand while installing monitors as stand
may be unbalanced and subject to
tipping during the installation.
Components 5. Set monitor Viewing Angles
x a all the components are included in the package. Contact your sales representative if any components are You can now a djust the monitors to your preferre d viewing
x Contact the sales outlet if you wish to purchase optional accessories. 4. Locate the VESA brackets and bolts on the back of each angles. Both monitors are individually adjustable for tilt, pivot
x Actual components may look different from the pictures below. monitor. Locate the key hole slots at the end of each and swivel. The set adjusts together for height.
arm support (left and right). To install the monitors,
~
—_
slide the head of each bolt into the key hole slots and
pom.
y
= A F LY tighten. | $
Quick Guide Install CD 19" Wide Monitor Dual Stand Audio Cable
2Set 1Set 2EA
When adjusting the height, please
loosen the handle, set the proper
hight and tighten the handle.
Cable Tie Cable Velcro 4MM Wrench Power Cable VGA Cable DVI Cable
6 EA 2 EA 1EA 2EA 2EA 2EA
Installation Note: You can adjust your monitors left > right by x Note — left monitor moves in forward angles only.
For questions about your DoubleSight Monitor or installation assistance, please contact
our Customer Service Team at 888.897.8869 or support@doublesight.com
