Page 1: Lcd Monitor

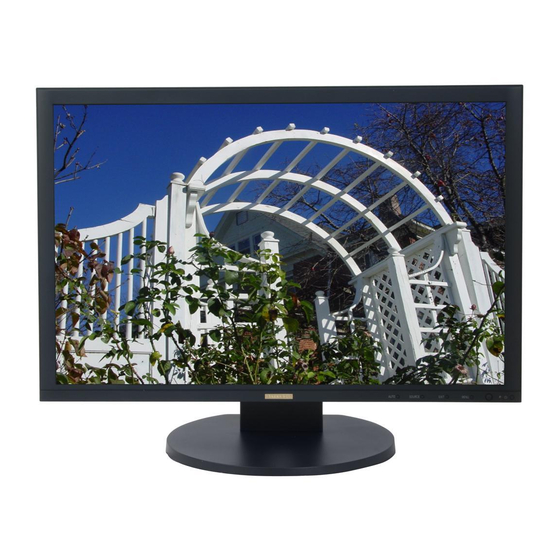

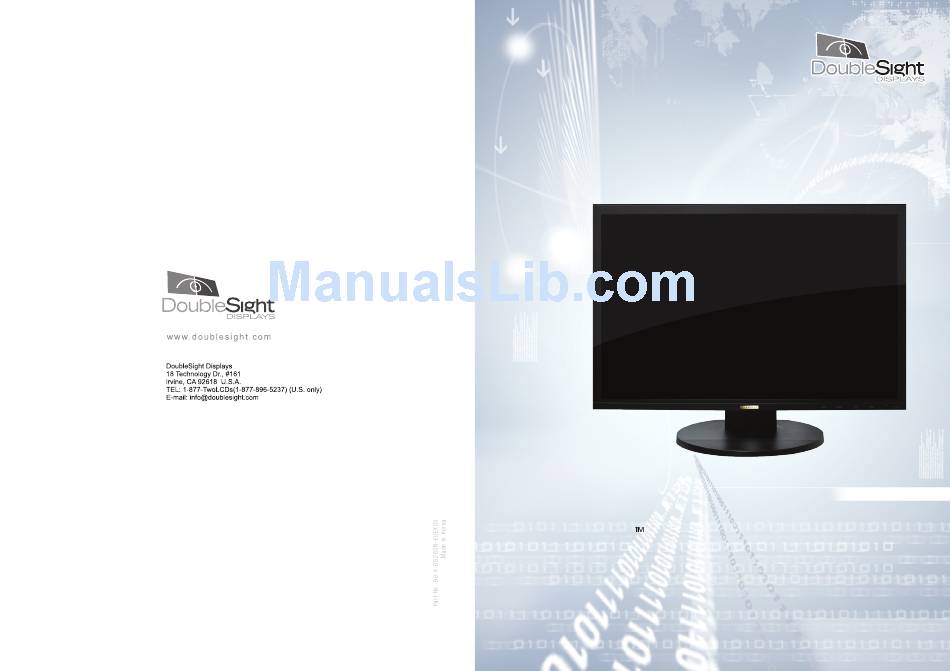

USER'S MANUAL DoubleSight DS-263N LCD MONITOR For the latest updates and more information, visit our website at www.doublesight.com... -
Page 2: Table Of Contents
Contents... 1 Preface... 2 Installation... 4 Unpacking...4 Adjust angle of Tilt stand ...5 Connecting the Display...5 Connecting the AC Power...5 Setting Up the LCD Monitor ...5 Power Management System ...5 Display Controls... 6 User Controls ...6 Adjusting the Monitor's Display...7 Function Description ...8 OSD Lock Out Function... -
Page 3: Contents
Preface Preface This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. -
Page 4: Unpacking
Installation allation Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for su cient air ow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot. -
Page 5: Display Controls
Display Controls User Controls A brief description and the location of all LCD Monitor functions controls and indicators Figure 2-1 Push to turn ON or turn O . MENU Activates OSD main menu. EXIT Exit OSD display / DV mode hot key. SOURCE Select DVI-D / DVI-I (digital) / DVI-I (analog) / D-SUB signal source. -
Page 6: Function Description
Display Controls Function Description Figure Function The following DV mode display setting can be selected by DV MODE OSD (STANDARD/TEXT/sRGB/MOVIE/GAMING/PHOTO) Default setting: TEXT Adjust the brightness. BRIGHTNESS Factory setting: 100.0% Adjust the image contrast. CONTRAST Factory setting:50.0% Adjust the sharpness. SHARPNESS Factory setting: 50% AUTO... - Page 7 Display Controls Function Description RESOLUTION NOTIFIER Factory setting: OFF Information Provide information about resolution, H/V frequencies, and polarity of the input signal. ANALOG INPUT Input Select Display Controls Function Description Input Select ANALOG D-SUB INPUT NO SIGNAL DVI-D NO SIGNAL OSD Warnings NO SIGNAL DVI INPUT...
-
Page 8: Osd Lock Out Function
Display Controls Function Description When the monitor is displayed for the rst time and the Auto Adjust resolution is 800x600 and above, the monitor will auto (Analog Input adjust itself. Only) To manually execute the Auto Adjust function, press the Auto button. -
Page 9: Technical Information
Technical Information Speci cations LCD Panel " 6 i t c x i r ) t i Video Input Signal Analogue RGB ; Digital TMDS Input Impedance 75 Ohm ± 2% (VGA) Polarity Positive, Negative (VGA) Amplitude 0 - 0.7 ± 0.05 Vp (VGA) Multi-mode Supported Horizontal Frequency: 31 ~ 93.75kHz Vertical Frequency: 50 ~ 76 Hz... -
Page 10: Standard Timing Table
Technical Information Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. FH (KHz) SYNC TOTAL ACTIVE FV (Hz) POLARITY (DOT / LINE) (DOT / LINE) TIMING NAME 640x350 31.469 VGA-350... -
Page 11: Troubleshooting
Troubleshooting Troubleshooting This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing di erences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes.
