Summary of Contents for DoubleSight DS-10U

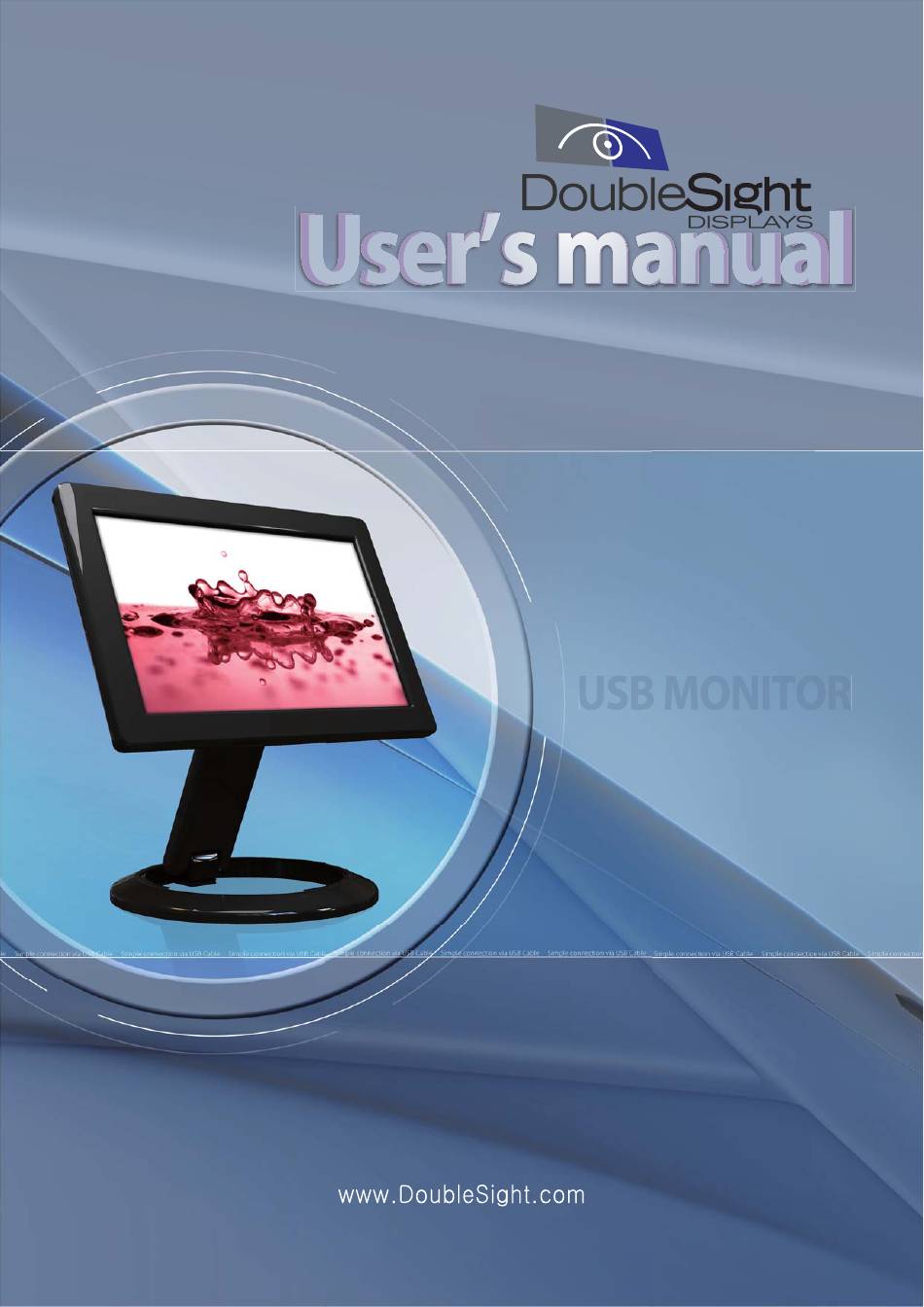

  • Page 1 REV. 1.0...

  • Page 2: Table Of Contents

    Contents Before the use Before the use ..........Product Configuration .

  • Page 3: Before The Use

    Before the use Before the use Caution for safety ※ Warning : It displays the cases where a mistaken handling may cause an infliction of death or serious injury to a person. ※ Caution : It displays the cases where a mistaken handling may cause an infliction of physical injury to a person or property damage to a person.
  • Page 4 Before the use (Reference : This image may differ depending on each case for reference only.) Make sure to read the contents before use. Do not disassemble without authorization and inquire A/S Center for any problem. - When contacting to the inside, it may cause fire or electric shock. When there is any strange sound or smoke and odor, pull it off from the cab le immediately.

  • Page 5: Product Configuration

    Before the use Product Configuration DS-70 & DS-90U Series DS-70 & DS-90U & DS Version 1.0 Version 1.0 · Monitor Driver · User’s Manual USB MONITOR...

  • Page 6: Monitor Assembly

    Before the use Monitor Assembly Stand assembly-type Fixed handle Stand USB MONITOR...

  • Page 7: Model Name & Function

    Before the use Model name & function LEFT FRONT RIGHT BOTTOM REAR Stand fixing hole 5Pin Min USB Port Power button Bir + , - USB MONITOR...

  • Page 8: Use Of Product

    Use of product How to Connect & Use Connect USB Monitor Use the USB cable to connect the monitor and PC. ■ * The USB cable is used with the cable provided at the time of purchase. ■ Terminal A (5Pin Min USB) connects the monitor and two terminal B (Serial A USB) to PC. Minimal requirement of system Intel Pentium/Celeron,AMD/K6/Athlon/Duton 1.2Ghz 512MB RAM or more...

  • Page 9: Driver Installation

    Use of product Driver Installation Driver installation When the PC booting is completed, begin installation after connecting the USB cable. ■ You can see the right screen when you insert CD into CD-ROM. Monitor Driver Double click to install USB monitor driver. Please check your model name.
  • Page 10 Use of product After completely installed, it is recommended to end the PC and re-start. * When a problem arises, it is recommended to re-booting of the PC. After completing the installation, the icon in the monitor shape is generated on the tray on lower right side of the monitor and the USB monitor information installed is displayed.
  • Page 11 Use of product USB Monitor Display Information setting 1. When the USB monitor and PC are connected with the USB cable and the driver installation is completed, the system tray on the right side of the screen generates the icon of the monitor shape.
  • Page 12 Use of product Turning off (O) The USB monitor screen is turned OFF. Under the Off condition, it still maintains the turning off condition while the PC is turned off that select "E" or "M" to have the screen back on the USB monitor. Advanced class (A) It moves to the display set mode.
  • Page 13 Use of product Click "Apply" when outline of display screen is changed to white line. Click "Yes" Click "Yes" ■ Calibration Setting Click "Tools"tab and "4 points Calibration" USB MONITOR...

  • Page 14: Usb Monitor Restrictions

    Use of product Hold pressing flickering point until it to finish flickering and continue to enter next calibrations. (Enter 4 points) Calibration setting is completed After entering 4 points. * Please reboot PC when driver installation is completed. USB Monitor Restrictions ■...

  • Page 15: User's Guide

    User's Guide Symptoms for possible problems and responses ■ When there is any problem, make sure to check the followings first. The USB monitor screen is not displayed. Check if the USB cable is correctly linked and if the USB Driver is installed. Check if the blue LED color on the USB monitor is come on and if the power button is turned Off.
  • Page 16 User's Guide When you use Skype video chat with Window XP OS, there may be flicker or distortion in screen. The use of DirectX function causes this symptom. Make sure not to use it on the graphic card setting because there is no option to disable this function on SKYPE.
  • Page 17 User's Guide OS:Windows Vista Select program 'Cumstomize colors' from the control panel OS: Windows Vista Home premium, Business, Ultimate Click "Window Aero" Click "Apply" OS: Windows Vista Home basic Click "Windows Vista Standard " Click "Apply" USB MONITOR...

  • Page 18: Specification

    User's Guide Specification DS-10UT DS-10U (Resistive Touch) 10.1” TFT LCD Panel(LED Backlight System) WSVGA (1024 x 600 ) 262K Colors 500:1 45/45/15/35 16ms 13.85 247.66 : 0.61Kg 18.95 USB MONITOR...
