QUICKSTART GUIDE
HARRIER 23x AF-ZOOM IP 4K CAMERA
Introduction
This guide is designed to get you quickly up and running with the Harrier 23x AF-Zoom IP 4K Camera
(AS-CAM-23IP4K-A). This document should be read in conjunction with the datasheet and technical
reference manual for the Harrier 23x AF-Zoom IP 4K Camera. The camera is shipped with a fixed IP
address of 192.168.1.108; this can be changed once you have connected to the camera.

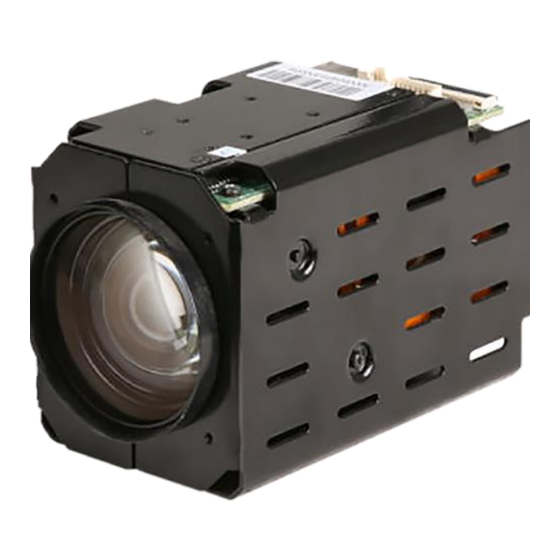

Figure 1. Harrier 23x AF-Zoom IP 4K Camera
Figure 2. Harrier 23x/52x IP Camera
Evaluation Board
Version 2.2 - July 2024
HARRIER 23X AFZ CAMERA QSG
Figure 3. Harrier 23x/52x IP Camera
Evaluation Board
Page 1 of 10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARRIER 23x AF-ZOOM IP 4K CAMERA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Active Silicon HARRIER 23x AF-ZOOM IP 4K CAMERA

Summary of Contents for Active Silicon HARRIER 23x AF-ZOOM IP 4K CAMERA

  • Page 1 HARRIER 23x AF-ZOOM IP 4K CAMERA Introduction This guide is designed to get you quickly up and running with the Harrier 23x AF-Zoom IP 4K Camera (AS-CAM-23IP4K-A). This document should be read in conjunction with the datasheet and technical reference manual for the Harrier 23x AF-Zoom IP 4K Camera. The camera is shipped with a fixed IP address of 192.168.1.108;...

  • Page 2: Evaluation Kit Contents

    The Evaluation Kit for the Harrier 23x/52x IP Camera (AS-CAM-23IP4K-EVAL-A) contains all the parts needed to evaluate the Harrier 23x AF-Zoom IP 4K Camera. Note that the evaluation kit does not include a camera, this needs to be ordered separately.

  • Page 3: Quick Start

    HARRIER 23X AFZ CAMERA Quick Start 1. Download and install the ONVIF Device Manager from https://sourceforge.net/projects/onvifdm/ 2. Configure the network adapter on a PC to have an address of 192.168.1.1 (or similar). 3. Using a Cat5/6 RJ45 cable, connect the RJ45/Ethernet port of the Harrier 23x/52x IP Camera Evaluation Board (J2) to the network adapter of the PC.
  • Page 4 HARRIER 23X AFZ CAMERA Figure 4. Camera configuration website – login dialog Figure 5. Camera configuration website – encoding setting view Figure 6. ONVIF Device Manager – video streaming screen Version 2.2 - July 2024 Page 4 of 10...
  • Page 5 HARRIER 23X AFZ CAMERA Figure 7. ONVIF Device Manager – setting the video resolution Opening the Camera Configuration Website Open Microsoft Edge or Chrome and browse to the IP address of the camera. A login page will open. To display video the website requires a plug-in that is downloaded from the camera. This plug-in works with Microsoft Edge or Chrome.
  • Page 6 HARRIER 23X AFZ CAMERA Figure 8. Camera configuration website – main screen Changing the Network Address The network address can be changed using ONVIF Device Manager or the camera configuration website. Care must be taken when changing the address to ensure that you are always able to find the camera. To change the network address using ONVIF Device Manager (see Figure 9): •...
  • Page 7 HARRIER 23X AFZ CAMERA To change the network address using the camera configuration website (see Figure 10): • Log in to the camera configuration website • Select the ‘Settings’ tab • Select the ‘Network Settings’ option from the menu on the left and edit the settings. •...

  • Page 8: Sd Card Recording

    HARRIER 23X AFZ CAMERA SD Card Recording Applications should use the ONVIF service to control the recording, but the configuration website can also be used to set up recording on the SD card. • Insert an SD card into the camera. •...

  • Page 9: Technical Support

    Figure 12. Camera configuration website – recording Playback tab Downloads ONVIF reference documentation: https://www.onvif.org/resources/ ONVIF Device Manager: https://sourceforge.net/projects/onvifdm/ VLC: https://www.videolan.org/vlc/index.en-GB.html GStreamer: https://gstreamer.freedesktop.org/download/ Technical Support In case of any issues, please contact Active Silicon Technical Support by email on techsupport@activesilicon.com. Version 2.2 - July 2024 Page 9 of 10...
  • Page 10 HARRIER 23X AFZ CAMERA Headquarters: North America: Active Silicon Ltd Active Silicon, Inc. 1 Waterside Court, Waterside Drive, 479 Jumpers Hole Road, Suite 301, Langley, Berks, SL3 6EZ, UK. Severna Park, MD 21146, USA. Tel: +44 (0)1753 650600 Tel: +1 410-696-7642 Email info@activesilicon.com...
