QUICK START GUIDE
HARRIER IP CAMERA INTERFACE BOARD
Introduction
This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board
together with the Harrier Ethernet connection board (AS-CIB-IP-001-A and AS-CIB-IP-002-A). The Harrier IP
camera interface solution can be purchased as a pre-assembled camera module with the Harrier
10x/36x/40x AF-Zoom Camera, the Sony FCB-EV7520A camera and the Tamron MP1110M/MP1010M
camera (e.g. AS-CIB-IP-001-1110-A or AS-CIB-IP-001-1010-A).
This document should be read in conjunction with the datasheets of the Harrier IP Camera Interface Board
and the Harrier Ethernet connection board.

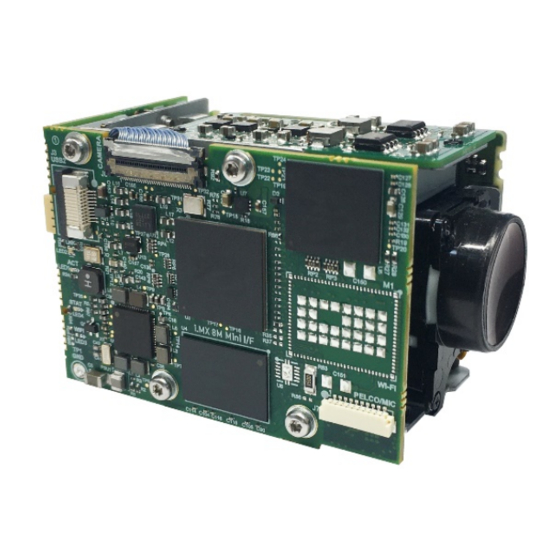

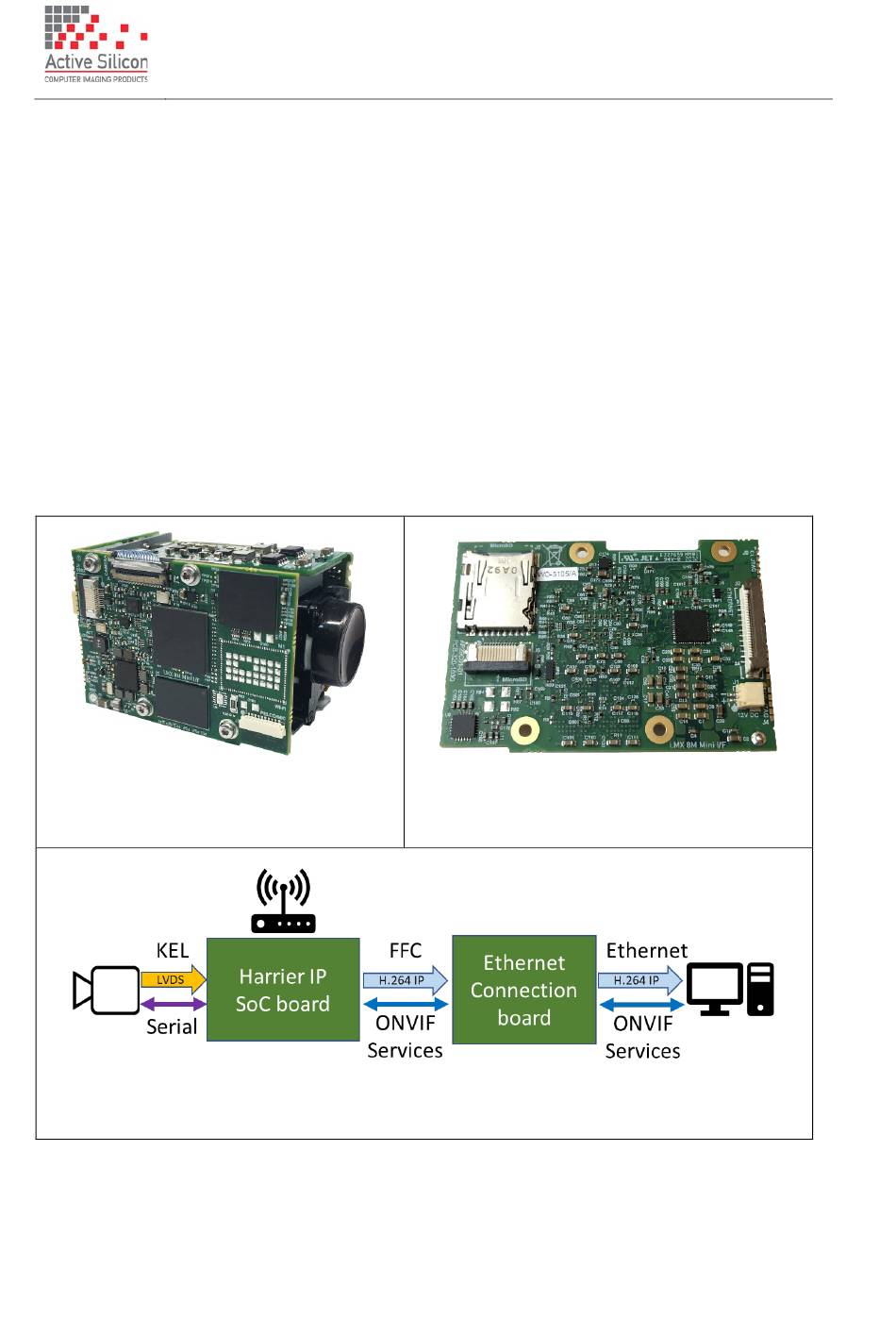

Figure 1. Harrier IP Camera Interface
Board mounted on a Tamron MP1110M
camera
Figure 3. Harrier IP camera system block diagram
(wireless/PoE features are optional).
November 2021
HARRIER H.264 IP CAMERA INTERFACE BOARD
Figure 2. Reverse side of Harrier IP Camera
Interface Board
QUICK START GUIDE
Version 1.0 – November 2021
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARRIER H.264 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Active Silicon HARRIER H.264

Summary of Contents for Active Silicon HARRIER H.264

  • Page 1 QUICK START GUIDE HARRIER H.264 IP CAMERA INTERFACE BOARD Version 1.0 – November 2021 QUICK START GUIDE HARRIER IP CAMERA INTERFACE BOARD Introduction This guide is designed to get you quickly up and running with the Harrier IP Camera Interface Board together with the Harrier Ethernet connection board (AS-CIB-IP-001-A and AS-CIB-IP-002-A).
  • Page 2 QUICK START GUIDE HARRIER H.264 IP CAMERA INTERFACE BOARD Version 1.0 – November 2021 Evaluation Kit Contents The Evaluation Kit for the Harrier IP (AS-CIB-IP-001-EVAL-A) contains all the parts needed to evaluate the Harrier IP Camera Interface Board. Note that the evaluation kit does not include a Harrier IP Camera Interface Board, FFC cable or camera, these need to be ordered separately.
  • Page 3 QUICK START GUIDE HARRIER H.264 IP CAMERA INTERFACE BOARD Version 1.0 – November 2021 Quick Start 1. Download the ONVIF Device Manager from https://sourceforge.net/projects/onvifdm/ 2. Connect the correct power socket adapter to the multi-region power supply. 3. Connect the JST connector on the power adapter cable to J3 on the Ethernet connection board.
  • Page 4 QUICK START GUIDE HARRIER H.264 IP CAMERA INTERFACE BOARD Version 1.0 – November 2021 Viewing Video Streams To view streaming video from the Harrier IP Camera Interface Board you will need a media player such as VLC player or GStreamer.
  • Page 5 QUICK START GUIDE HARRIER H.264 IP CAMERA INTERFACE BOARD Version 1.0 – November 2021 Figure 8. Harrier IP webpages for camera control For advanced users, the second tab allows the camera model (e.g. Tamron MP1110) and its video mode (e.g. 1080p60) to be set. Changing the camera video mode may require the camera to be re-booted; this can take up to 1 minute.
  • Page 6 AS-CIB-IP-SOC-001-A and AS-CIB-IP-IFPOE-001-A supplied mounted on a Tamron MP1110M-VC camera (with connecting cables fitted). AS-CIB-IP-EVAL-A Evaluation kit for Harrier IP (does not include boards). More camera options and custom builds are available, please contact Active Silicon for more information. Europe & APAC: Americas: Active Silicon Ltd Active Silicon, Inc.
