QUICK START GUIDE
HARRIER 52x AF-ZOOM IP CAMERA
Introduction
This guide is designed to get you quickly up and running with the Harrier 52x AF-Zoom IP Camera
(AS-CAM-52IPHD-A). This document should be read in conjunction with the datasheet and technical
reference manual for the Harrier 52x AF-Zoom IP Camera. The camera is shipped with a fixed IP address of
192.168.1.108; this can be changed once you have connected to the camera.

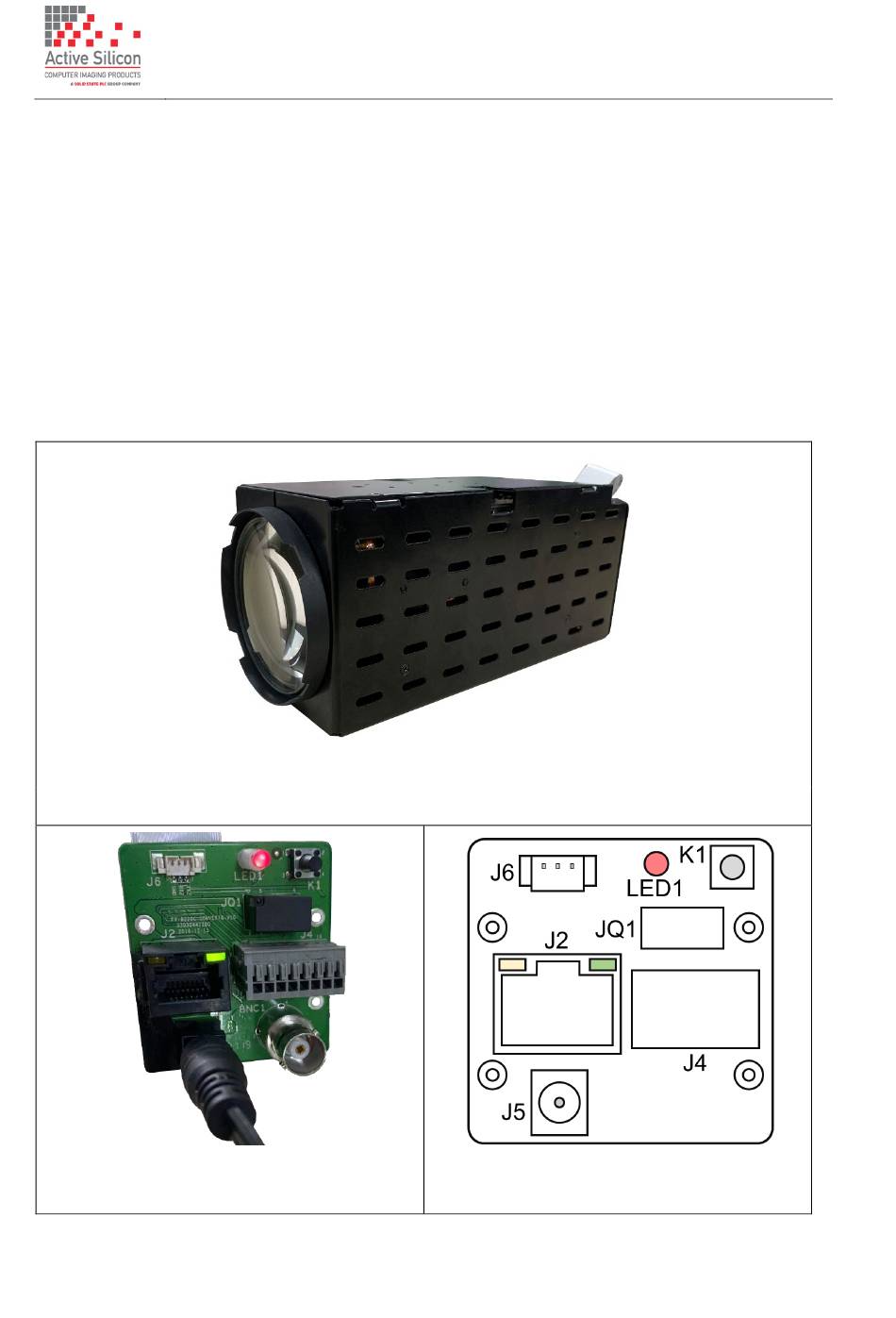

Figure 1. Harrier 52x AF-Zoom IP Camera
Figure 2. Harrier 23x/52x IP Camera
Evaluation Board
October 2023
QUICK START GUIDE
HARRIER 52x AF-ZOOM IP CAMERA
Figure 3. Harrier 23x/52x IP Camera
Evaluation Board
Version 1.0 - October 2023
