TM-P2BXATVA User's Manual
Introduction
A. Specifications
VIA 692/693 chipset.
Intel Pentium II processors, support
233/266/300/333 (Ex. Clk 66MHz) MHz.
300/350/400/ 450/ 500 (Ex. Clk 100MHz) MHz
Expandable to 768MB (3 banks) with three 168-
pin DIMM socket {support 3.3 V EDO (66MHz
only) / SDRAM (66MHz/ 100MHz)}.
Winbond 83977, two high speed 16550
compatible serial ports, one Multi-Mode.
Parallel Port support SPP/EPP/ECP standard
mode.
Two onboard PCI IDE Ports (32-bit data transfer).
LS-120/ ZIP FDD, IrDA/ ASK IR/ Consumer IR.
Dual USB ports
Support two 360/720KB/1.2/1.44/2.88MB floppy
disk devices.
One PS/2 Mouse port.
Award System BIOS installed in socket (Flash
and PnP).
One AGP slot, five PCI Master Slots and two 16-
bit ISA Slots.
Auto 1.8V-3.5V
4-layer PCB, size (22cm x 20cm).
Support BIOS setting CPU type (Jumper-less),
CPU Auto Temperature Sensor & Music Alarm,
voltage monitor and CPU Fan monitor, Bus
Master/ Ultra DMA/33, ACPI, AGP Bus, Keyboard
Power On, PS/2 Mouse Power On, Modem Ring
On, LAN wake up, Debug display on board.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM-P2BXATVA and is the answer not in the manual?

Questions and answers

Related Manuals for Totem TM-P2BXATVA

Summary of Contents for Totem TM-P2BXATVA

  • Page 1 TM-P2BXATVA User’s Manual Introduction A. Specifications System Chipset VIA 692/693 chipset. Intel Pentium II processors, support 233/266/300/333 (Ex. Clk 66MHz) MHz. 300/350/400/ 450/ 500 (Ex. Clk 100MHz) MHz Memory Expandable to 768MB (3 banks) with three 168- pin DIMM socket {support 3.3 V EDO (66MHz only) / SDRAM (66MHz/ 100MHz)}.

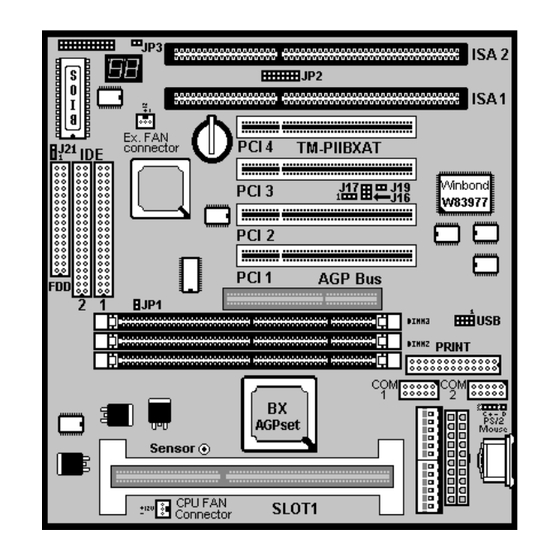

  • Page 2 TM-P2BXATVA User’s Manual Setup Guide A. Layout Diagram...
  • Page 3 TM-P2BXATVA User’s Manual B. Smart Display On Board When the CPU, DRAM, Cache RAM, FDD or VGA card have not been properly installed, user can isolate those basic problems through the Debug display and instructions from the manual. To Professional system engineers or maintenance engineers, the Debug display can work as an 80 Port Debug Card.
  • Page 4 TM-P2BXATVA User’s Manual C. CPU Voltage and Frequencies ROM PCI/ISA BIOS (2A69KTJA) CHIPSET FEATURE SETUP AWARD SOFTWARE, INC Auto Configuration : Enabled Auto Detect DIMM/ PCI Clk : Enabled EDO DRAM Speed Selection : 60ns Spread Spectrum : Disabled EDO CASx# MA Wait State...
  • Page 5 TM-P2BXATVA User’s Manual and "Manual". To set the CPU manually, please note the following: CPU Speed: "Manual" (you can manually set the CPU ratio and frequency) CPU Ratios: x3.5, x4, x4.5, x5, x5.5, x6, x6.5, x7, x7.5 CPU Frequency: 66, 68, 75, 83, 100, 103, 112, 133Mhz Several options are provided for the CPU external clock.
  • Page 6 TM-P2BXATVA User’s Manual D. EDO/ SDRAM Installation Procedures:  A 168-pin DIMM can support up to 768MB 3.3V EDO (66MHz) / SDRAM (66MHz/ 100MHz).  You are recommended to use SDRAMs. With SPD that are compliant with PC-100. This will enable BIOS to detect the SDRAM speed, thereby fully bring into play the efficiency of the SDRAM.
  • Page 7 TM-P2BXATVA User’s Manual specifications differ. First, verify the working voltage of the EDO/ SDRAM module in either  DIMM socket. P2BXAT only supports 3.3V EDO/ SDRAM module. The following  illustration shows you the difference between 3.3V and 5V to ensure your correct selection of 3.3V DIMM module for using.

  • Page 8: Keyboard/ Ps/2 Mouse Power On And Modem Ring On

    TM-P2BXATVA User’s Manual E. Keyboard/ PS/2 Mouse Power On and MODEM Ring on  To make sure the 5VSB signal nearly to 750mA (Amperage) from ATX Power Supply, or if your keyboard consuming power than 300mA, it's better to upgrade your ATX Power Supply to 1A for working perfectly.
  • Page 9 TM-P2BXATVA User’s Manual  Modem Ring On Function Operation: ROM PCI / ISA BIOS (2A69KTJA) POWER MANAGEMENT SETUP AWARD SOFTWARE, INC Power Management : Disabled ** Reload Global Timer Events ** PM Control by APM : No IRQ[3-7, 9-15], NMI...

  • Page 10: Fan Monitoring

    TM-P2BXATVA User’s Manual F. System Health Monitor  Fan Monitoring: There are two fan connectors, one is for CPU, the other can be a housing fan. When the fans speed is working abnormal, there will be warning (Speaker Alarm) through application software such as SM10(Small Icon for System Monitoring) to notify user.
  • Page 11 TM-P2BXATVA User’s Manual  CPU Thermal Protection: TM-P2BXAT implements special thermal protection circuits. When temperature is higher than a predefined value, there will be warning (Speaker Alarm) through application software such as SM10 (Small Icon for System Monitor) to notify user. It's automatically implemented by BIOS or SMD10, no hardware installation is needed.
