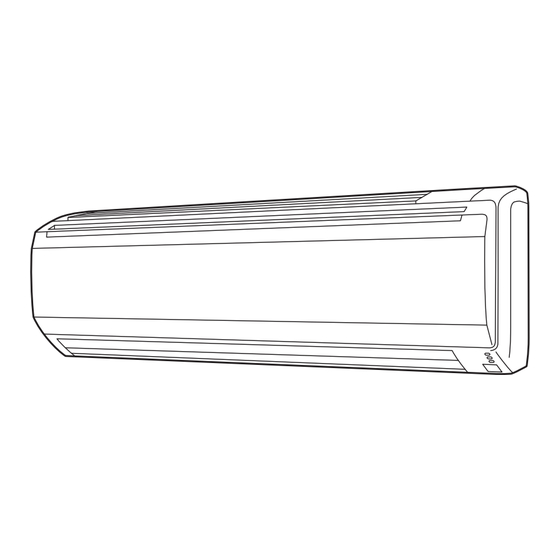

ASUB18TLAV2
ASUB24TLAV2
OPERATION MANUAL
VRF system indoor unit (Wall mounted type)
Keep this manual for future reference.
MODE D'EMPLOI
Appareil intérieur à système VRF (Type montage mural)
Conservez ce manuel pour pour toute référence ultérieure.
MANUAL DE FUNCIONAMIENTO
Unidad interior del sistema VRF (Tipo montado en pared)
Conserve este manual para posibles consultas futuras.
PART No. 9377772459-01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fujitsu AIRSTAGE ASUB24TLAV2
Summary of Contents for Fujitsu AIRSTAGE ASUB24TLAV2
- Page 1 OPERATION MANUAL VRF system indoor unit (Wall mounted type) Keep this manual for future reference. MODE D’EMPLOI Appareil intérieur à système VRF (Type montage mural) Conservez ce manuel pour pour toute référence ultérieure. MANUAL DE FUNCIONAMIENTO ASUB18TLAV2 ASUB24TLAV2 Unidad interior del sistema VRF (Tipo montado en pared) Conserve este manual para posibles consultas futuras.
-
Page 2: Table Of Contents
OPERATION MANUAL ● Do not drink the water drained from the air conditioner. ● Do not apply any heavy pressure to radiator fi ns. PART No. 9377772459-01 ● Do not use infl ammable gases near the air conditioner. VRF system indoor unit (Wall mounted type) ●... -
Page 3: Manual Auto Operation
Control unit (optional) ADJUSTING THE DIRECTION OF Types of remote controllers: AIR CIRCULATION ● Wireless remote controller ● Wired remote controller ● Simple remote controller The up/down airfl ow direction can be controlled with the control unit. The left/right airfl ow direction can also be controlled in the same manner. For operation method, refer to the operation manual of each device. -
Page 4: Cleaning And Care
Automatic defrosting Cleaning the Intake Grille ● When using the Heating mode under conditions of low outdoor air 1. Remove the intake grille. temperature high humidity, frost may form on the outdoor unit, result- ing in reduced operating performance. In order to prevent this kind of (1) Place your fi... - Page 5 ● Dust can be cleaned from the air fi lter either with a vacuum cleaner, Replacing dirty Air cleaning fi lters or by washing the fi lter in a solution of mild detergent and warm water. If you wash the fi lter, be sure to allow it to dry thoroughly in a shady Replace fi...
-
Page 6: Troubleshooting
Steam comes out of the indoor unit: TROUBLESHOOTING ● During Heating operation, the outdoor unit’s fan may stop, and steam may be seen rising from the unit. This is due to the Automatic defrost- ing operation. (Refer to “OPERATING TIPS”) The following conditions are not breakdowns or op- eration failures. -
Page 7: Specifications
SPECIFICATIONS MODEL ASUB18TLAV2 ASUB24TLAV2 POWER SOURCE 208/230 V ~ 60 Hz AVAILABLE VOLTAGE 187 to 253 V RANGE COOLING Btu/h 18,000 (5.3) 24,000 (7.0) CAPACITY (kW) HEATING Btu/h 20,000 (5.9) 27,000 (7.9) CAPACITY (kW) SOUND PRESSURE LEVEL HIGH dB [A] MED - HIGH dB [A] dB [A]...
