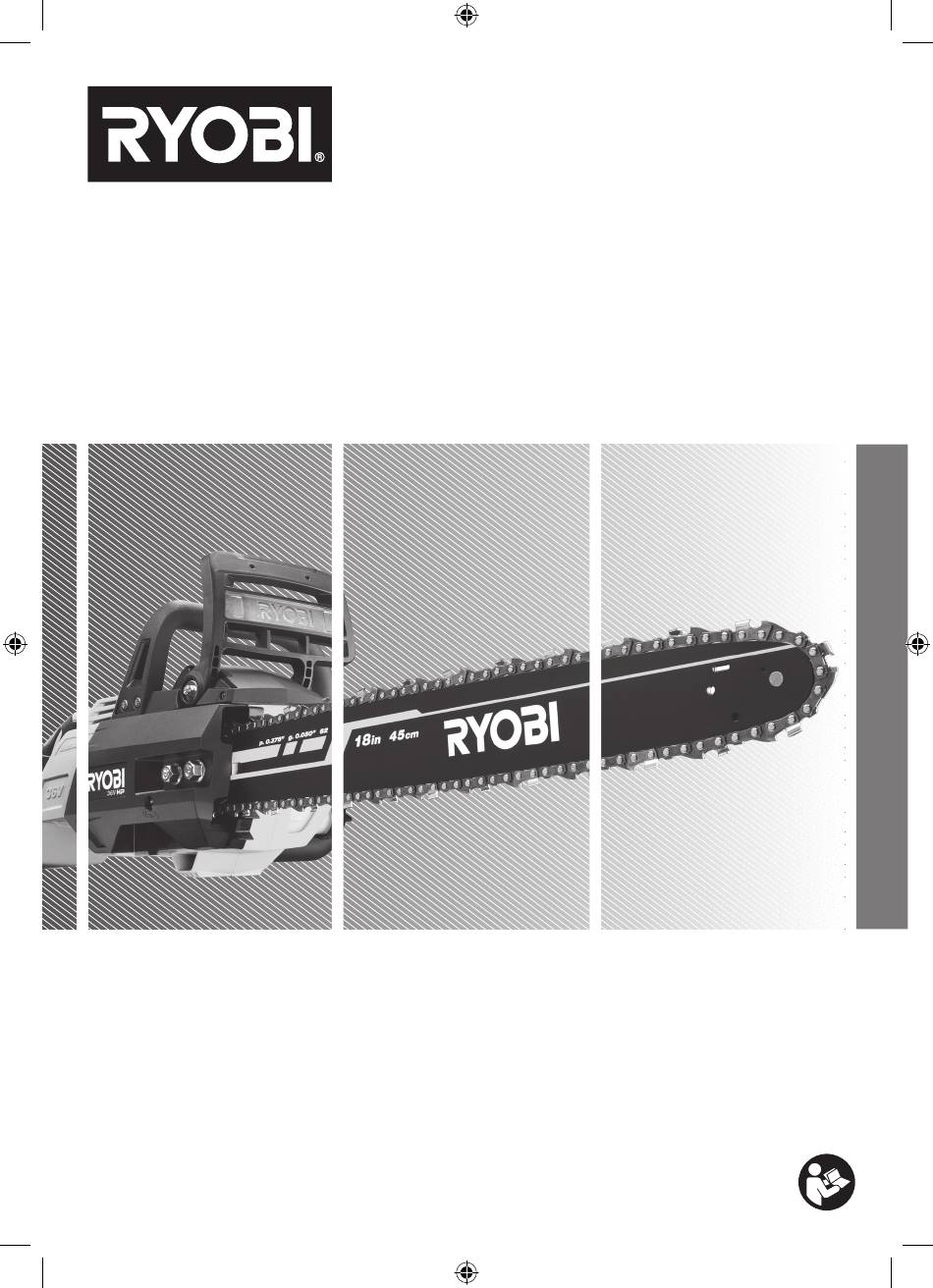

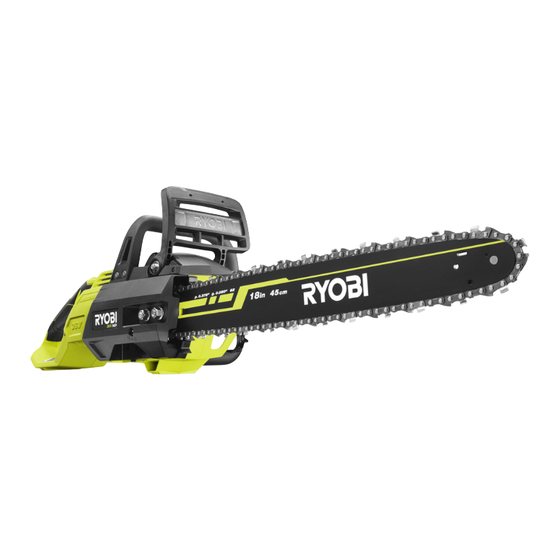

  • Page 1 RCS36HP...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.

  • Page 3: General Chainsaw Safety Warnings

    Power tools are dangerous in the hands of untrained GENERAL CHAINSAW SAFETY WARNINGS users. ■ Keep all parts of the body away from the saw chain ■ Maintain power tools and accessories. Check for when the chainsaw is operating. Before you start the misalignment or binding of moving parts, breakage chainsaw, make sure the saw chain is not contacting of parts and any other condition that may affect the...

  • Page 4: Additional Safety Warnings

    CAUSES AND OPERATOR PREVENTION OF KICKBACK: ■ Do not use a back-and-forward sawing motion. Let the chain do the work. Keep the chain sharp, and do not try Kickback may occur when the nose or tip of the guide bar to push the chain through the cut.
  • Page 5 An escape path should be planned and cleared as necessary INSTRUCTIONS CONCERNING THE PROPER before cuts are started. The escape path should extend TECHNIQUES FOR BASIC FELLING, LIMBING, back and diagonally to the rear of the expected line of fall. AND CROSS-CUTTING UNDERSTANDING THE FORCES WITHIN THE WOOD When you understand the directional pressures and...

  • Page 6: Transportation And Storage

    LIMBING A TREE Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid binding the chainsaw.

  • Page 7: Maintenance Schedule

    Follow all special requirements on packaging and labelling towards the bar, the chain should stop immediately. A chain when transporting batteries by a third party. Ensure that brake does not prevent kickback. It only lowers the risk no batteries can come in contact with other batteries of injury should the chain bar contact the operator’s body or conductive materials while in transport by protecting during a kickback event.

  • Page 8: Symbols On The Product

    NOTE: The battery pack LED indicator stops working if the Moving direction of the chain. battery protection feature has caused the battery pack to (Marked under the sprocket cover) stop powering the product. SYMBOLS ON THE PRODUCT SYMBOLS IN THIS MANUAL Safety alert Parts or accessories sold separately Read and understand all instructions...
  • Page 9 Front handle Rear handle Combination wrench Chain lubricant cap Lubricant flow screw Operator’s manual Trigger release Bar mounting nuts Guide bar cover Chain tensioning screw Sprocket cover Switch trigger Battery pack R36XCHS26 Charger Chain and bar oil Know your product...
  • Page 10 Wear full eye protection, ear protection, Remove the oil cap. Add chain and bar oil into the product. Reinstall the oil cap. non-slip heavy-duty gloves, substantial NOTE: The chain and bar oil are sold separately. footwear, and long trousers at all times while operating the product.
  • Page 11 NOTE: Never work without chain and Ensure that the lubricant flow screw is set to open for the chain and bar oil to be bar lubricant. If the product is running released. Turn the screw counterclockwise to open and increase the oil flow to without lubricant, the guide bar and saw the chain and bar.
  • Page 12 Replacing the bar p.13 and chain Adjusting the chain p.15 tension Adjusting the chain p.16 lubricant flow Cleaning the p.17 product Transporting the p.18 product Storing the product p.19...

  • Page 13: Replacing The Bar And Chain

    REPLACING THE BAR AND CHAIN 1. Remove the battery pack. 2. Loosen the bar mounting nuts. 3. Remove the bar mounting nuts, sprocket cover, bar and chain assembly. Dispose of the used bar and chain properly. 4. Install the new chain on the bar. Insert the chain drive links into the bar groove.
  • Page 14 6. Reinstall the sprocket cover and bar mounting nuts. 7. Turn the nuts clockwise to tighten and secure the sprocket cover. 8. Use the combination wrench to turn the chain tensioning screw and adjust the chain tension. Adjust the chain tension until the gap between the drive teeth and the bar is between 5.5 and 7 mm.

  • Page 15: Adjusting The Chain Tension

    ADJUSTING THE CHAIN TENSION 1. Remove the battery pack. 2. Loosen the bar mounting nuts. 3. Use the combination wrench to turn the chain tensioning screw and adjust the chain tension. Adjust the chain tension until the gap between the drive teeth and the bar is between 5.5 and 7 mm.
  • Page 16 ADJUSTING THE CHAIN LUBRICANT FLOW The product has a lubricant flow screw that adjusts the lubricant flow to the saw chain. 1. Remove the battery pack. 2. Engage the chain brake. 3. Turn the product over to access the lubricant flow screw located at the base of the product.

  • Page 17: Cleaning The Product

    CLEANING THE PRODUCT 1. Remove the battery pack. 2. Use a soft-bristle brush to remove loose dirt and sawdust from around around the chain brake. Use a soft, dry cloth to clean the plastic parts. WARNING: Do not use water to clean the product.

  • Page 18: Transporting The Product

    TRANSPORTING THE PRODUCT 1. Remove the battery pack. 2. Engage the chain brake. Install the guide bar cover. 3. Remove the oil cap. Remove all chain and bar oil from the product. Reinstall and tighten the oil cap. 4. Use a trolley to transport the product. Secure it against movement or falling to prevent injury to persons or damage to the product.

  • Page 19: Storing The Product

    STORING THE PRODUCT 1. Remove the battery pack. 2. Engage the chain brake. Install the guide bar cover. 3. Remove the oil cap. Remove all chain and bar oil from the product. Reinstall and tighten the oil cap. 4. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children.

  • Page 20: Product Specifications

    Uncertainty of measurement 0.93 dB Chain pitch 9.525 mm (0.375 in.) Chain gauge 1.27 mm (0.050 in.) Drive links quantity BATTERY AND CHARGER Model R36XCHS26 RCS36HP Battery pack BPL3660D Charger BCL3660F Compatible BPL3612D, BPL3620D, BPL3626D, battery packs BPL3626D2, BPL3640D, BPL3640D2,...
  • Page 24 Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. TRILINK is a registered trade mark of Trilink Saw Chain, LLC. 961087599-01...
