Summary of Contents for Ryobi R36CHS10

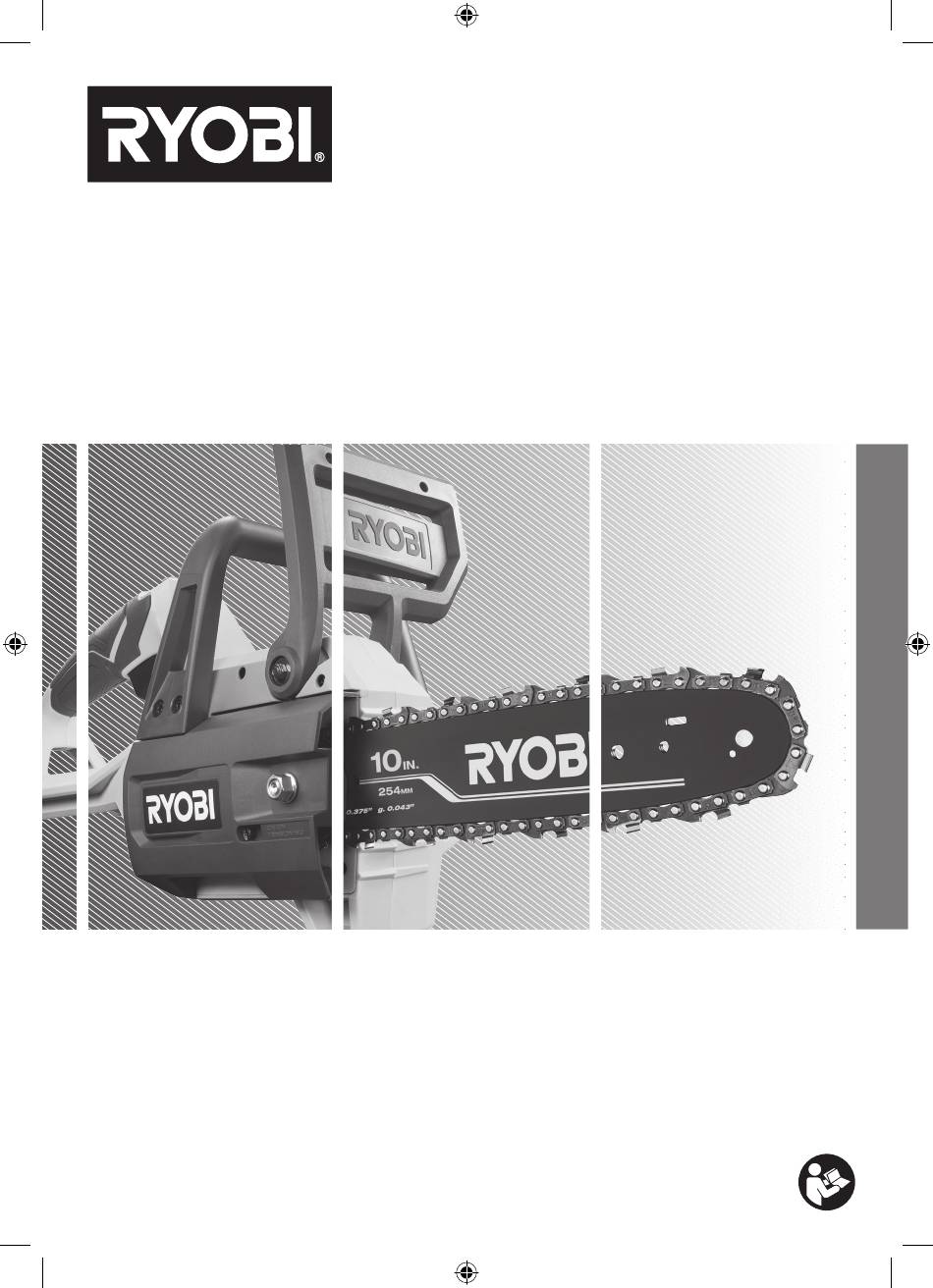

  • Page 1 FRONT PAGE R36CHS10 R36CHS12...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.

  • Page 3: General Chainsaw Safety Warnings

    Power tools are dangerous in the hands of untrained GENERAL CHAINSAW SAFETY WARNINGS users. ■ Keep all parts of the body away from the saw chain ■ Maintain power tools and accessories. Check for when the chainsaw is operating. Before you start the misalignment or binding of moving parts, breakage chainsaw, make sure the saw chain is not contacting of parts and any other condition that may affect the...

  • Page 4: Additional Safety Warnings

    CAUSES AND OPERATOR PREVENTION OF KICKBACK: ■ Do not use a back-and-forward sawing motion. Let the chain do the work. Keep the chain sharp, and do not try Kickback may occur when the nose or tip of the guide bar to push the chain through the cut.
  • Page 5 An escape path should be planned and cleared as necessary INSTRUCTIONS CONCERNING THE PROPER before cuts are started. The escape path should extend TECHNIQUES FOR BASIC FELLING, LIMBING, back and diagonally to the rear of the expected line of fall. AND CROSS-CUTTING UNDERSTANDING THE FORCES WITHIN THE WOOD When you understand the directional pressures and...

  • Page 6: Transportation And Storage

    LIMBING A TREE Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid binding the chainsaw.

  • Page 7: Maintenance

    Follow all special requirements on packaging and labelling SAFETY DEVICES when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries CHAIN BRAKE or conductive materials while in transport by protecting Chain brakes are designed to quickly stop the chain from exposed connectors with insulating, non-conductive caps or rotating.

  • Page 8: Symbols In This Manual

    it is warm to touch, change the battery or allow the battery Moving direction of the chain. to cool down. (Marked under the sprocket cover) NOTE: The battery pack LED indicator stops working if the battery protection feature has caused the battery pack to SYMBOLS IN THIS MANUAL stop powering the product.
  • Page 9 R36CHS10 Guide bar Saw chain Front hand guard/ Chain brake Front handle Rear handle Operator’s manual Chain lubricant Chain tensioning screw Switch trigger Trigger release Sprocket cover Bar mounting nut Guide bar cover Battery pack Charger Chain lubricating oil R36CHS12...
  • Page 10 Before and clothing at all times while operating the while using the chainsaw, check the oil NOTE: Use only RYOBI chainsaw product. Do not operate the product level in the oil level gauge. lubricating oil from an authorised when barefoot or wearing open sandals.
  • Page 11 2.5-3.5 mm Adjust the chain tension until the gap Loosen the bar mounting nut. Remove the guide bar cover. between the drive teeth and bar is between 2.5 and 3.5 mm. To increase the chain tension, turn the chain tensioning nut clockwise. To reduce the chain tension, turn the chain tensioning screw counterclockwise.
  • Page 12 p.13 p.14 p.15 p.16...

  • Page 13: Replacing The Bar And Chain

    REPLACING THE BAR AND CHAIN 1. Remove the battery pack. 2. Loosen the bar mounting nut. Remove the nut, sprocket cover, and bar and chain assembly. 3. Install the new chain on the bar. Insert the chain drive links into the bar groove.

  • Page 14: Adjusting The Chain Tension

    6. Tighten the bar mounting nut. ADJUSTING THE CHAIN TENSION 1. Remove the battery pack. 2. Loosen the bar mounting nut. 3. Adjust the chain tension until the gap between the drive teeth and bar is between 2.5 and 3.5 mm. To increase the chain tension, turn the chain tensioning screw clockwise.

  • Page 15: Cleaning The Product

    4. Tighten the bar mounting nut. CLEANING THE PRODUCT 1. Remove the battery pack. 2. Use a brush to remove loose dirt and saw dust from around the front hand guard. Use a soft, dry cloth to clean the plastic parts.

  • Page 16: Storing The Product

    STORING THE PRODUCT 1. Remove the battery pack. 2. Install the guide bar cover. 3. When transporting the product, secure it against movement or falling to prevent injury to persons or damage to the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children.

  • Page 17: Product Specifications

    Cordless chainsaw manual have been measured in accordance with a standardised test and may be used to compare one tool with Model R36CHS10 another. They may be used for a preliminary assessment of exposure. Rated voltage 36 V d.c.
  • Page 20 Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. TRILINK is a registered trade mark of Trilink Saw Chain, LLC. POWERFIT is a trade mark of Techtronic Outdoor Products Technology Limited in ANZ.

This manual is also suitable for:

R36chs12
