Seating Matters SORRENTO Operation Manual & Product Specification page 11

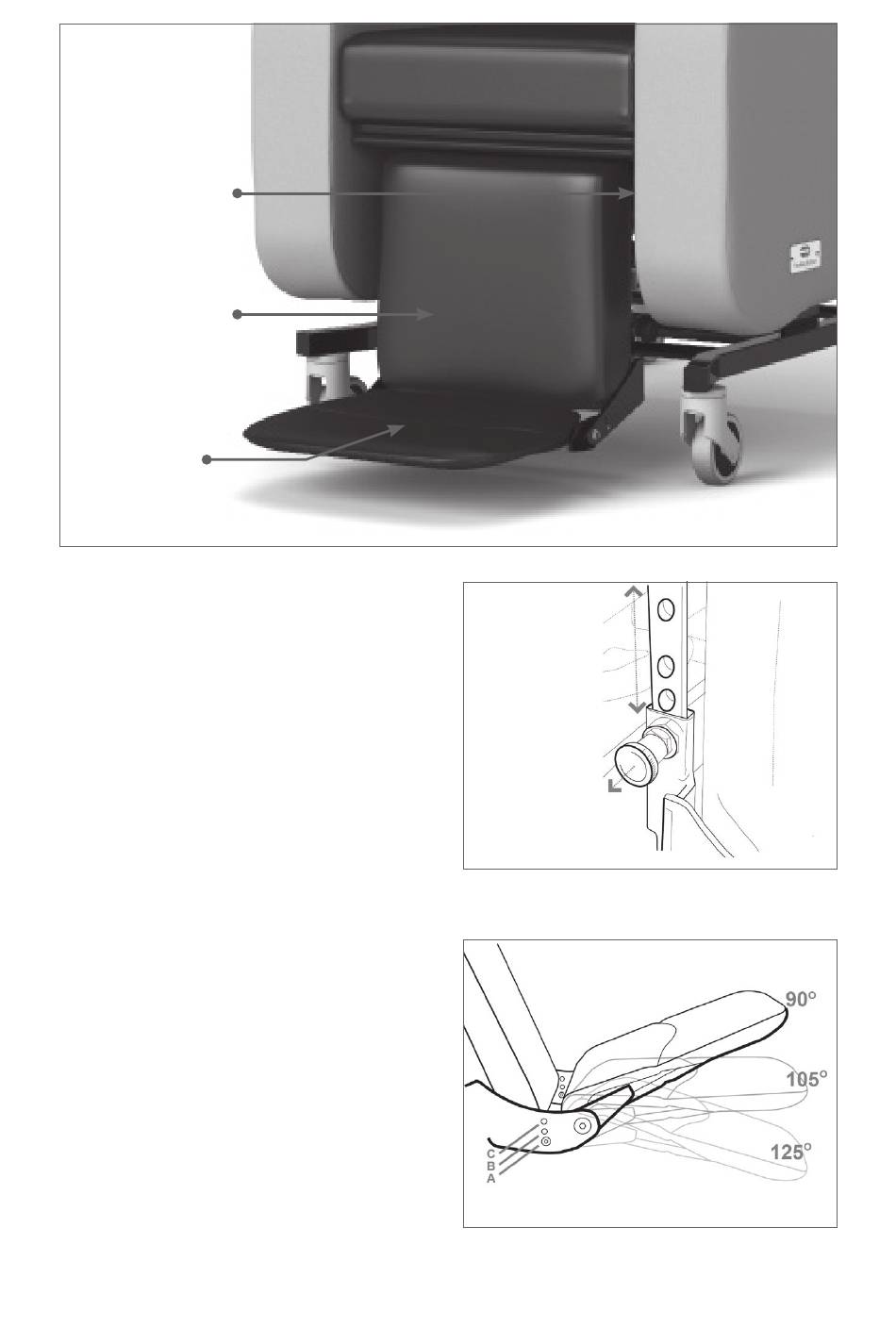

Manual Lever
to elevate leg rest
Elevating Leg Rest
Foot Board
(fig.4)
• Leg elevation: Before changing
the angle of the elevating leg rest, the
User or Patient must ensure there are
no objects in the immediate environment
that could obstruct the leg rest elevation
or come into contact with the Patient's
legs. Using the manual lever located
under the front of the seat, move the leg
rest until it is in the required position
and allow the release lever to move to
its relaxed position. In powered options,
use the handset control to move the leg
rest until it is in the required position and
release the button. Ensure that only the
weight of the Patients legs are placed on
this leg rest. (See page 12 for motorised
elevation instructions).
• Footplate height:
be adjusted in height by pulling out the
spring plungers, located on each
side and sliding it up and down on
the glide rail. (fig.4a) When the spring
plungers are released, they will catch
into the nearest hole immediately below
the pins. The foot plate can also be
removed by dropping it off the bottom
of the chair.
The foot plate can
SORRENTO™ Instruction Manual
Footplate height adjustment
Footplate angle adjustment
(fig.4a)
(fig.4b)
