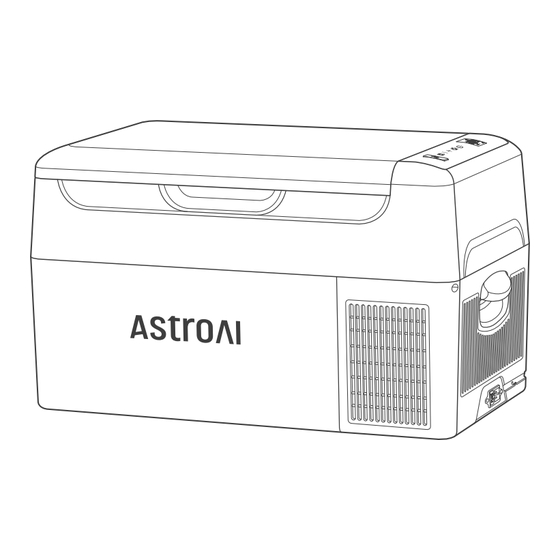

- Page 1 CAR FRIDGE AND FREEZER PORTABLE REFRIGERATOR USER MANUAL...
- Page 2 We hope you enjoy your new Portable Freezer! If you have questions or concerns contact us via support@astroai.com. Please fully read and follow this manual before using this product; keep this manual for future reference.
-
Page 3: Safety Information
SAFETY INFORMATION When using the 12/24 V in-car adapter, the compact fridge should not be left connected for long periods of time when the engine is not running. Unplug this device during lightning storms or when not in use for long periods of time to prevent damage. - Page 4 The freezer should be operated in a well-ventilated area away from heat sources and direct sunlight. Do not soak the freezer with water. If water accumulates inside the freezer, use a cloth to dry out the condensation. Do not pour water out of the freezer.
-
Page 5: Display Introduction
Magnetic Door Handle LED Light Control Panel Fast Ice-Making Area Carrying Handle Ice Cube Tray Heat Dissipation Port AC Cord and Plug Power Port DC Cord and Plug Drain Plug DISPLAY INTRODUCTION Power Button Decrease Temperature Settings Button Child Safety Lock Increase Temperature USB Charging Port - 05 -... -
Page 6: Size Description
12.8 in 23.5 in 12.6 in SPECIFICATIONS Product Name: Refrigerator Model: G22 Capacity: 22 L Climatic Category: T, ST, N Rated Voltage AC (Adaptor): 100 V - 240 V; 50/60 Hz Rated Voltage DC: 12 V/24 V Rated Current for AC (Adaptor): 1.2 A - 0.5 A Rated Current for DC: 5.0 A (12 V)/2.5 A (24 V) - Page 7 OPERATION INSTRUCTIONS 1. Connect the power supply: Plug the power cord into the freezer’s socket. 2. Connect the other end to a car cigarette lighter or a standard household outlet. 3. Press the “ ” Button to turn the freezer on to cooling mode. The temperature on the display is the current internal temperature.
- Page 8 4. Press the “ ” or “ ” Button to set the cooling temperature. Hold “ ” or “ ” to quickly increase/decrease the temperature. Note: The first time you use the freezer, it will default to the lowest temperature. In subsequent uses, the temperature will default to the last user-set temperature.
-
Page 9: Troubleshooting
Note: Due to the di erent output voltages of di erent vehicle power supplies, if the voltage protection appears (if the display reads “F1”), you can lower the battery protection setting by one level (“H” adjusted to “M” or “L”). We do not recommend that you run the freezer while the engine is o . - Page 10 Trouble The compressor starts loudly Solution When the compressor initially starts, the motor will usually run at a high speed. This produces a loud noise, but it will decrease after the speed has stabilized. Trouble Excessive freezing inside the refrigerator Solution The temperature is set too low.
- Page 11 The speed of the compressor is too low or the load is too large: Turn the freezer o and leave it unplugged for 30 minutes before restart- ing. If the error occurs again, please contact AstroAI Customer Support for help.
-
Page 12: Warranty Period
The controller cannot check the parameters: Turn the freezer o and restart it. If the error occurs again, please contact AstroAI Customer Support for help. F7/F8 Abnormality in the thermistor: Please contact AstroAI customer service. WARRANTY PERIOD 2-Year Limited Warranty from AstroAI. - Page 13 Web: www.astroai.com E-Mail: support@astroai.com V2.1...
