Summary of Contents for AstroAI NCF55

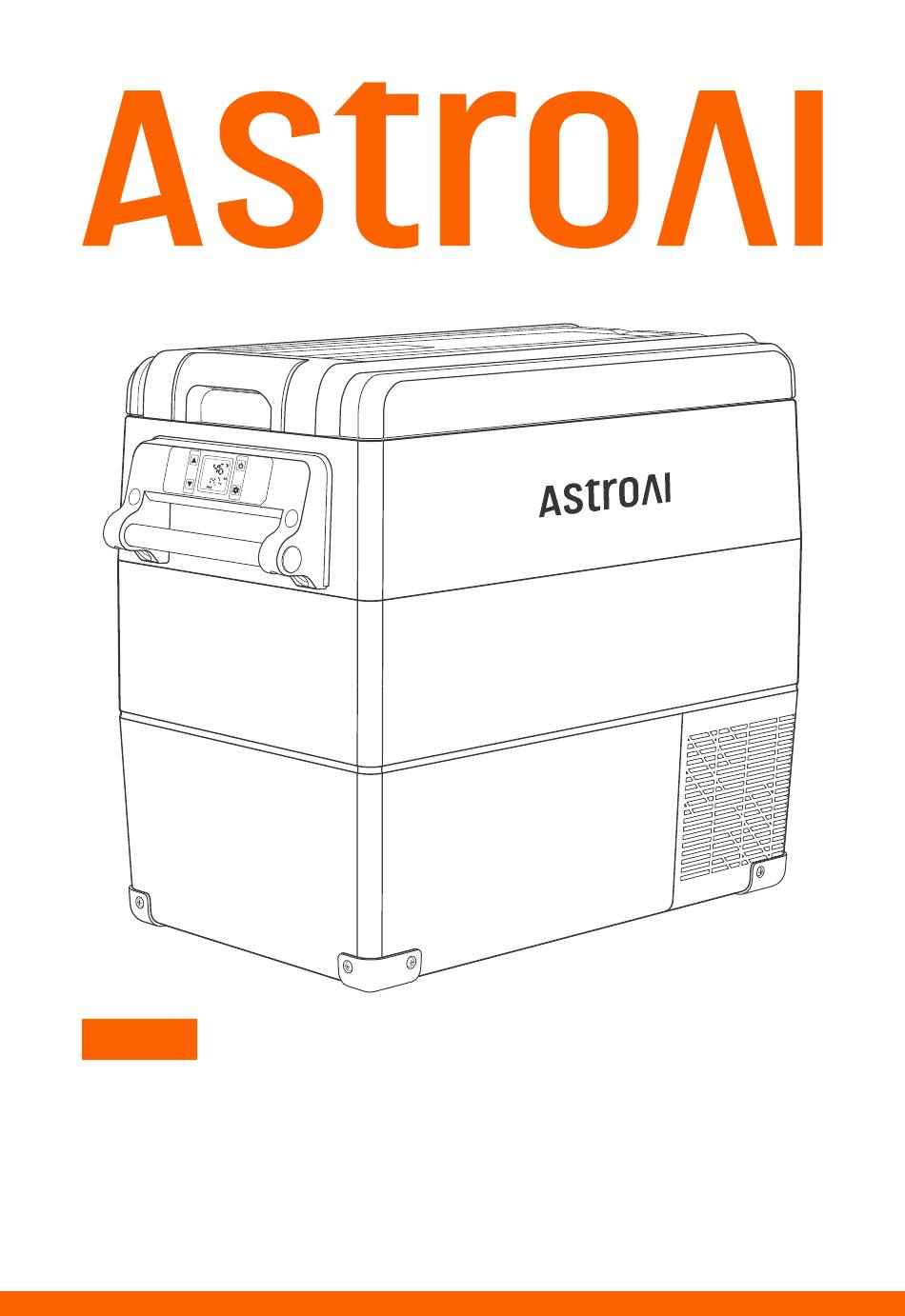

- Page 1 NCF55 CAR FRIDGE AND FREEZER PORTABLE REFRIGERATOR USER MANUAL...
- Page 2 We hope you enjoy your new Portable Freezer! If you have questions or concerns contact us via support@astroai.com. Please fully read and follow this manual before using this product and keep this manual for future reference.
-
Page 3: Safety Information
SAFETY INFORMATION When using the 12/24 V in-car adapter, the compact freezer should not be left connected for long periods of time when the engine is not running. Unplug this device during lightning storms or when not in use for long periods of time to prevent damage to the device. DO NOT open or remove covers, doing so may expose you to dangerous voltages and other hazards. - Page 4 After initially unpacking the freezer, let it stand for at least 6 hours before powering on. Keep the freezer horizontal at all times. The freezer should be operated in a well-ventilated area away from heat sources and direct sunlight. Do not soak the freezer with water. If water accumulates inside the freezer, use a cloth to dry the condensation.
-
Page 5: Display Introduction
Carrying Handle Shelf Control Panel LED Light Door Handle AC Cord and Plug Heat Dissipation Port DC Cord and Plug Power Port DISPLAY INTRODUCTION Increase Temperature Power Button Decrease Temperature Settings Button - 05 -... -
Page 6: Size Description
27.3 in 13.6 in 11.6 in 6.3 in 10.5 in 21.5 in 18.1 in SPECIFICATIONS Model NCF55 Capacity 55 L Rated Voltage AC (Adaptor) 100-240 V; 50/60 H Rated Voltage DC 12/24 V Rated Current for AC (Adaptor) 1.2 A-0.5 A Rated Current for DC 5.0 A (12 V)/2.5 A (24 V) - Page 7 Important note: After initially unpacking the freezer, let it stand for at least 6 hours before powering on. Always keep the freezer horizontal. OPERATION INSTRUCTIONS 1. Connect the power supply: Plug the power cable into the freezer’s socket. 2. Connect the other end to a car cigarette lighter or a standard household outlet.
- Page 8 3. Press the “ ” Button to turn on the freezer to cooling mode. The temperature on the display is the current internal temperature. 4. Press the “ ” or “ ” Button to set the cooling temperature. Hold “ ”...
- Page 9 BATTERY PROTECTION SETTING This freezer has a three-level battery protection function which not only guarantees normal operation of the freezer, but also protects the battery of the vehicle. 1. Set the freezer to its “on” state. 2. Hold down the “ ”...
-
Page 10: Troubleshooting
TROUBLESHOOTING Freezer is Not Working Check if the power supply is faulty. Check the plug to ensure it is in a good contact. Check if the cigarette lighter fuse has blown. Check if the power switch on the display panel is on. After turning the freezer on, there is a three-minute compressor delay safety. - Page 11 The speed of the compressor is too low or the load is too large: Turn the freezer o and leave it unplugged for 30 minutes before restarting. If the error occurs again, please contact AstroAI Customer Support for help. - 11 -...
-
Page 12: Warranty
If the error occurs again, please contact AstroAI Customer Support for help. The controller can not check the parameters: Turn the freezer o and restart it. If the error occurs again, please contact AstroAI Customer Support for help. F7/F8 Abnormality in the thermistor: Please contact AstroAI customer service. - Page 13 Web: www.astroai.com E-Mail: support@astroai.com V2.3...
