AstroAI LY0204A - 4L Mini Fridge Manual

INTRODUCTION

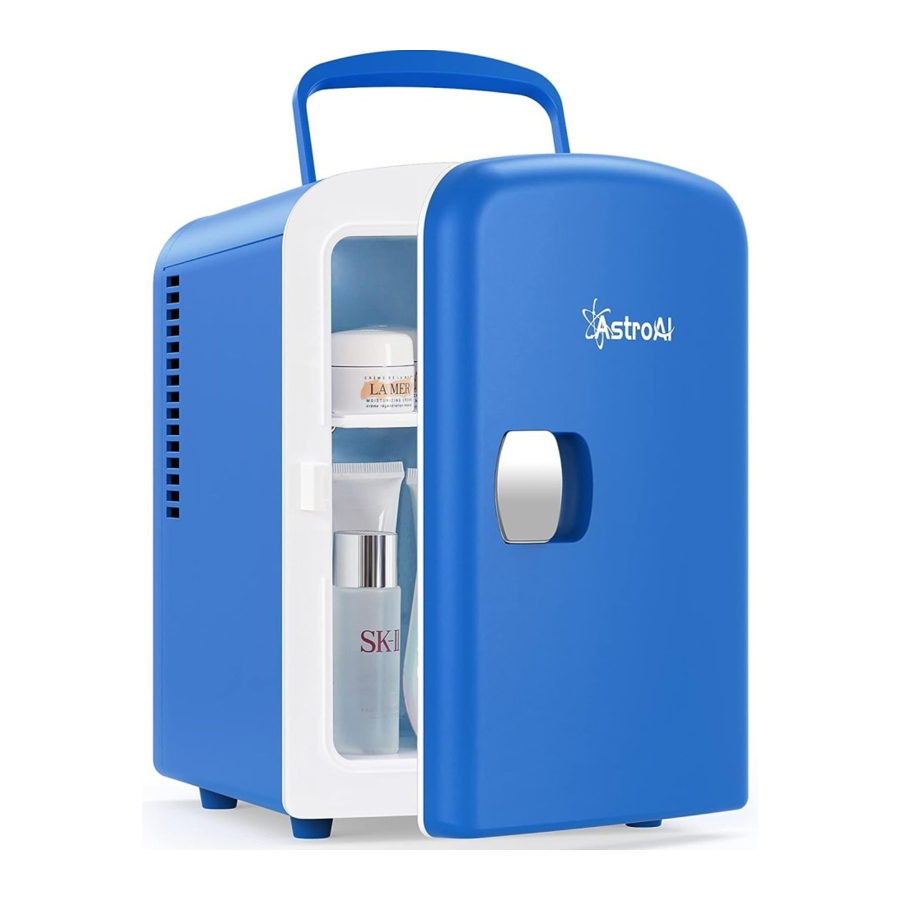

Thank you for purchasing the AstroAl 4L Mini Fridge. This is a portable fridge that can be used with both a 12V car and a standard wall outlet. With an included cool and warm function, you'll be able to keep everything at the perfect temperature.
We hope you enjoy your new Mini Refrigerator! Questions or Concerns? You are welcome to contact us with your question via support@astroai.com.
Please fully read and understand this manual before using this product and keep this manual for future reference.

DIAGRAM

1. Cool Indicator Light
2. Warm Indicator Light
3. Warm Button/OFF Button/Cool Button
4. DC/AC Port
5. Carrying Handle
6. Door Handle
7. Removable Shelf
8. AC Power Cord
9. DC Power Cord

SIZE DESCRIPTION

INSTRUCTIONS

1. CONNECTING THE 12V POWER SUPPLY
   • Turn the switch to the OFF position before connecting to the power supply, both indicators will not light up.

   • Insert the DC power cord into the DC power port on the back of the fridge.

   • Place the fridge on a stable surface, and insert the DC power cord plug into the cigarette lighter socket of the vehicle.

   • Switch the Cool Button/OFF Button/Warm side, the green indicator light will be turned on; switch to the Button to the Cool Warm side, the red indicator light will be turned on.
2. CONNECTING THE HOUSE POWER SUPPLY
   • Turn the switch to the OFF position before connecting to the power supply, both indicators will not light up.

   • Insert the AC power cord into the AC power port at the back of the fridge.

   • Place the fridge on a stable surface, and insert the AC power cord plug into the wall outlet. Before using, check that the local voltage power corresponds to the one shown on the appliance nameplate.

   • Switch the Cool Button/OFF Button/Warm side, the green indicator light will be turned on; switch to the Button to the Cool Warm side, the red indicator light will be turned on.

COOL MODE TIPS

• To achieve the quickest cooling, fill the fridge with beverages which have already been refrigerated.
• The fridge is not only suitable for beverages but also suitable for cosmetics and fruits.
• The lowest possible temperature the fridge can achieve depends on the ambient environment. The lower the ambient temperature, the better the fridges cooling performance.

WARM MODE TIPS

• The fridge is designed to keep items warm instead of heating up cold items.
• The highest temperature of the fridge can achieve 150°F (66°C). Never put flammable, explosive articles into the fridge.

TROUBLE-SHOOTING

MAINTENANCE

• Make sure the fridge is empty and disconnected before the regular maintenance.
• Use a wet cloth and mild cleanser to clean the fridge.
• If not in use for a long time, please ensure that the interior is completely dry before storing.

SPECIFICATIONS

4L Mini Fridge
Model	LY0204A
Capacity	4L
Input voltage	DC12V	cool mode: 40W; 3.3A
		warm mode: 32W; 2.7A
	AC 120V (USA/CA)	cool mode: 0.7A 60Hz
		warm mode: 0.63A 60Hz
	AC100-110V (JP)	cool mode: 50W 50/60Hz
		warm mode: 40W 50/60Hz
	AC220 -240V (DE/UK/FR/ES)	cool mode: S0W 50/60Hz
		warm mode: 40W 50/60Hz
Operating temperature	32°F-40°F (18-22°C) below the ambient temperature
	Highest Warming Temperature > 150°F (66°C)
Certifications	ETL/CE/PSE/UKCA
Class Il Construction

SAFETY INFORMATION

• The fridge shall connect to a wall outlet with an AC power cord.
  Before using check that the voltage power corresponds to the one shown on the appliance nameplate (US/Canada: 120V, Japan: 100-110V, Europe/UK: 220-240V).
• To avoid potential danger, please do not disassemble the fridge.
• To avoid the risk of fire or electric shock, please plug the fridge into an exclusive grounded outlet.
• Avoid using locations where dust or other airborne contamination may be drawn into the fan.
• Allow at least 2 inches of distance from the back and sides of the fridge to allow proper air circulation and heat dispersal.
  DO NOT place the fridge in a poorly ventilated area.
• Store the fridge in a dry and well-ventilated place, and avoid direct sunlight.
• DO NOT allow children to use the product without the supervision of an adult.
• Unplug your power cord from the 12V cigarette lighter socket when the engine is turned off, or the battery power might be running out.
• DO NOT connect the 24V vehicle power supply of heavy-duty vehicles directly.
• Unplug this fridge during lightning storms or when not in use for long periods of time to prevent damages.
• To disconnect, turn off the switch on the back of the fridge, then unplug the plug from the power supply.
• DO NOT bend, stretch or pull the power cable in case of electric shocks.
• Ensure the power socket is easy to access during the installation.
• Handle with care.
  DO NOT squeeze the product.
  DO NOT put the product upside down.
• DO NOT place heavy objects on the product.
• When switching the modes, please turn off the fridge and wait for 30 minutes until the fridge reaches room temperature.
• Let the product away from rains or any corrosive gases or liquids.
