kozy heat NK60TL-B501 Manual

#NK60TL-B501 BIRCH LOG SET
For use with model #NDK-60-TL
Important: Save these instructions. You may need to refer back to these for
maintenance or service work
WARNING: This product can expose you to chemicals including ceramic fiber and/or silica dust which is (are) known to the State of California
to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
NOTE: Log numbers are located on the bottom or side of each log. Refer to the following instructions and illustration for proper
placement. Your components may look different than the ones shown.
CAUTION: Do not place logs directly over burner port holes. Improper log placement may affect flame appearance and may cause
excessive soot to build upon the glass.
•
If converting to propane, complete the conversion before installing the log set. Follow the conversion instructions included with
the kit.
•
If installing a panel set, complete installation of panel set before log installation
•
Install all light bulbs into the front ember bed light kit before log installation.
1. Remove valance from fireplace. Remove and retain (2) screws from the front ember bed media tray. Lift tray up and out of fire-
box. See Figure 1. Remove the (6) sheet metal screws that secure the left, center, and right burners to the bottom burner and
floor of the control board. Remove the left, center, and right burners. See Figure 2.
2. Install crushed media over the rear ember bed media tray. Place logs #60TL-B4, #60TL-B5, and #60TL-B6 as shown in Figure 3.
Log #60TL-B6 is positioned by (2) correspond pins in the rear ember bed media tray. Logs #60TL-B4 and #60TL-B5 will sit on
crushed glass. Log #60TL-B6 must lie flat on media tray. Failure to do so will negatively affect the flame. Install (4) small klinkers
on the bottom burner pan. Do not block any burner porting.
Rev. 3

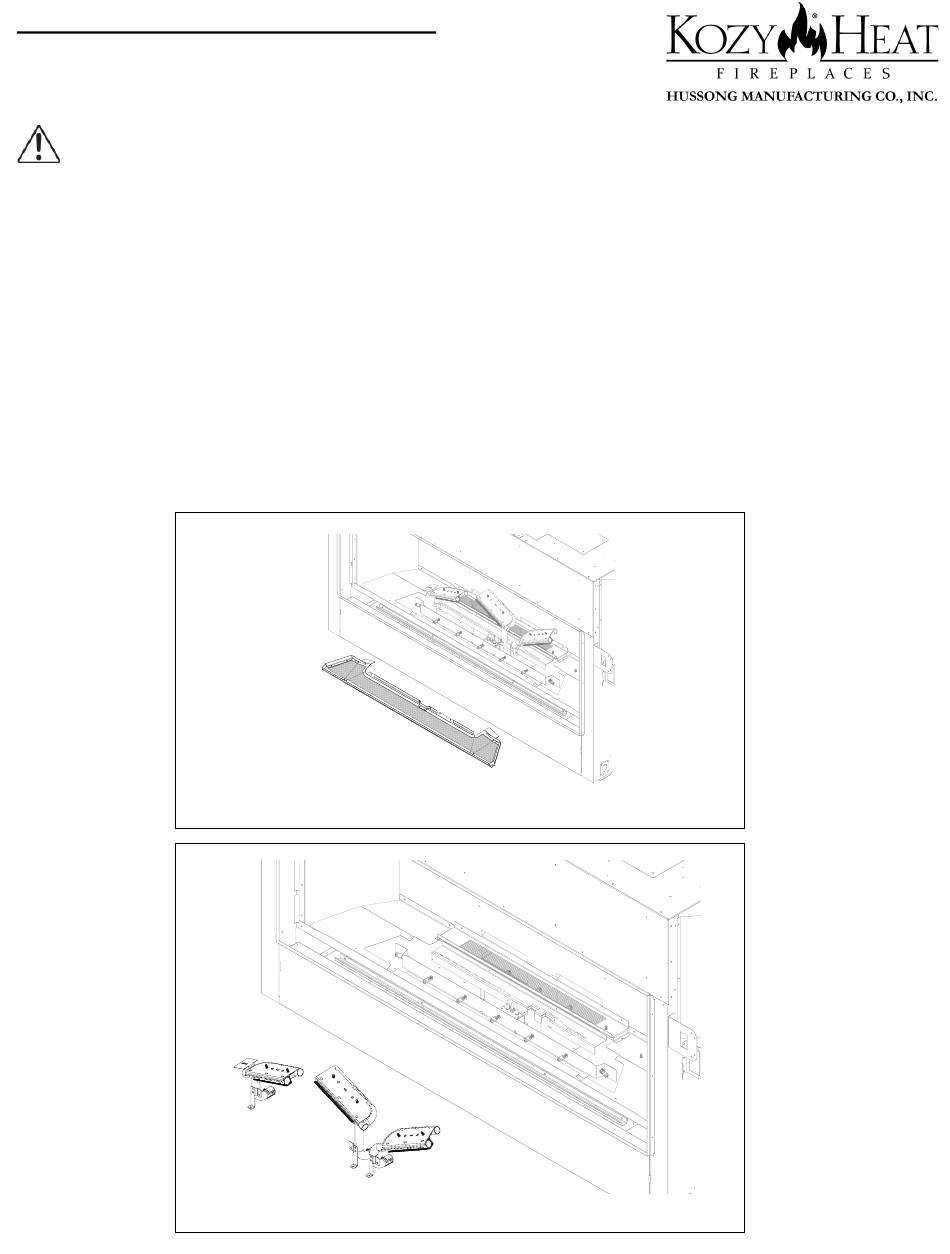

Figure 1 - Front ember bed media tray removal
Figure 2 - Burner Removal
