#NK41-500 LOG SET
For use with model #NDK-41-DV
WARNING: This product can expose you to chemicals including ceramic fiber and/or silica dust which is (are) known to the State of California
to cause cancer, birth defects, or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
NOTE: Log numbers are located on the bottom or side of each log. Refer to the following instructions and illustration for proper
placement. Your components may look different than the ones shown.
CAUTION: Do not place logs directly over burner port holes. Improper log placement may affect flame appearance and may cause
excessive soot to build upon the glass.
•
If converting to propane, complete the con-
version before installing the log set. Follow
the conversion instructions included with
the kit.
•
If installing a panel set, complete installa-
tion of panel set before log installation
•
Install all light bulbs into the front and rear
ember bed light kits before log installation.
1. Remove valance from fireplace. Remove the
(4) screws securing the log rack / emberbed
panel.
2. Remove the left and right burner assembly
by loosening the 7/16" nut that secures
each burner assembly down to the control
board. Slide each burner to the side of the
fireplace to remove. Note: it may be easier
to remove the light kit assembly to access
the 7/16" nuts securing the burner assem-
blies.

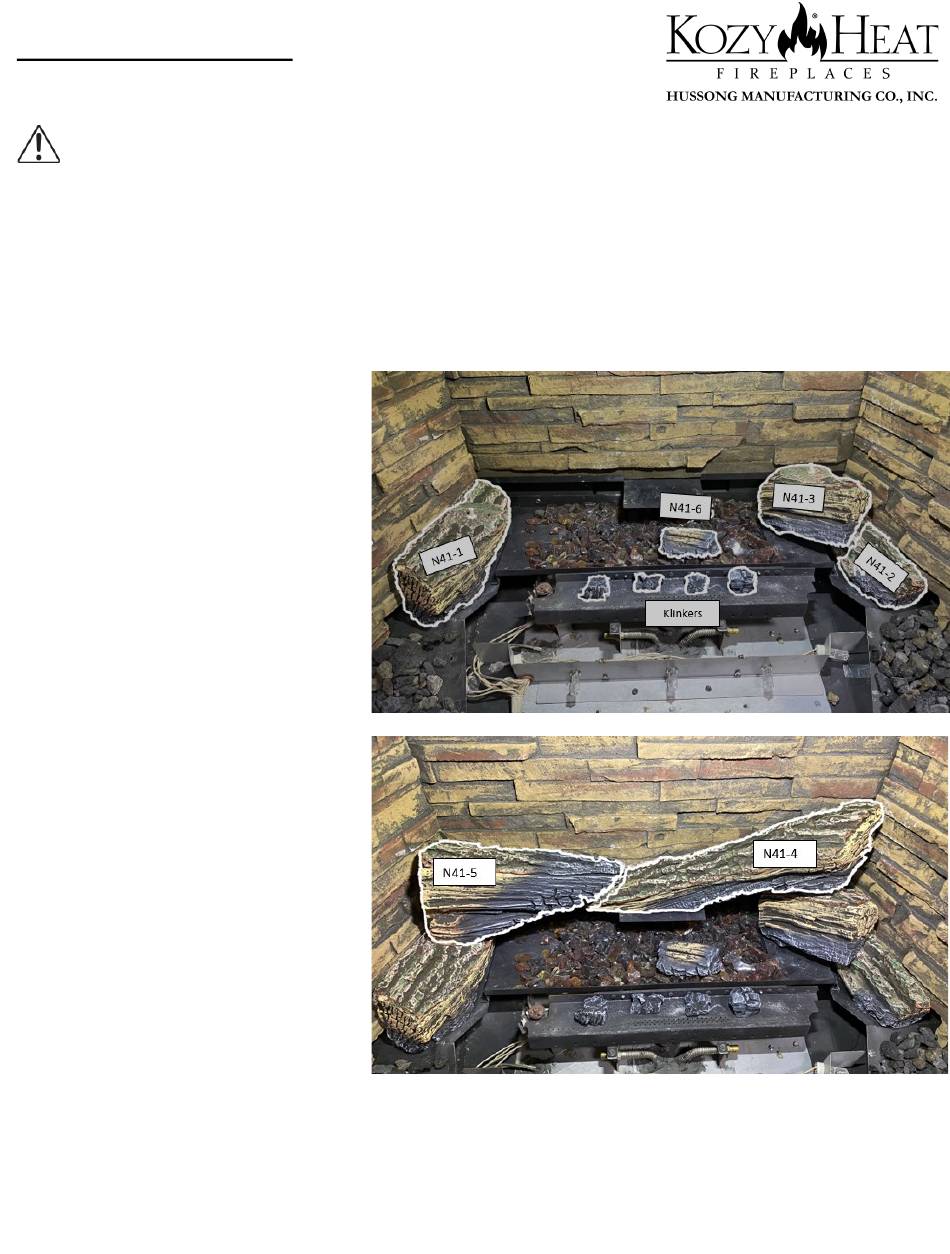

3. Place log #N41-1 and log #N41-2 on corre-
sponding pins on burner (not shown). Logs
must lie flat on media tray. Failure to do so
will negatively affect the flame
4. Place log #N41-3 on the corresponding pin
on top of #N41-2. Rotate the opposite end
of #N41-3 towards the back of the fireplace.
5. Fill back media tray with crushed glass
media.
6. Place log #N41-6 on top of the crushed
media as shown.
7. Place the klinkers on the rear burner as
shown here. There are (2) smaller klinkers
that need to go in the middle of the burner
where there is more porting. Ensure no
klinkers are placed on top of the porting.
8. Place log # N41-4 so the right side of the log
aligns on the pin on top of #N41-3. Place the
left side of the log on the platform in the
center of the fireplace as shown. Slide this
log back towards the rear of the fireplace on
this platform.
9. Place log #N41-5 so it aligns with the pins
on #N41-1 and #N41-4 as shown.
