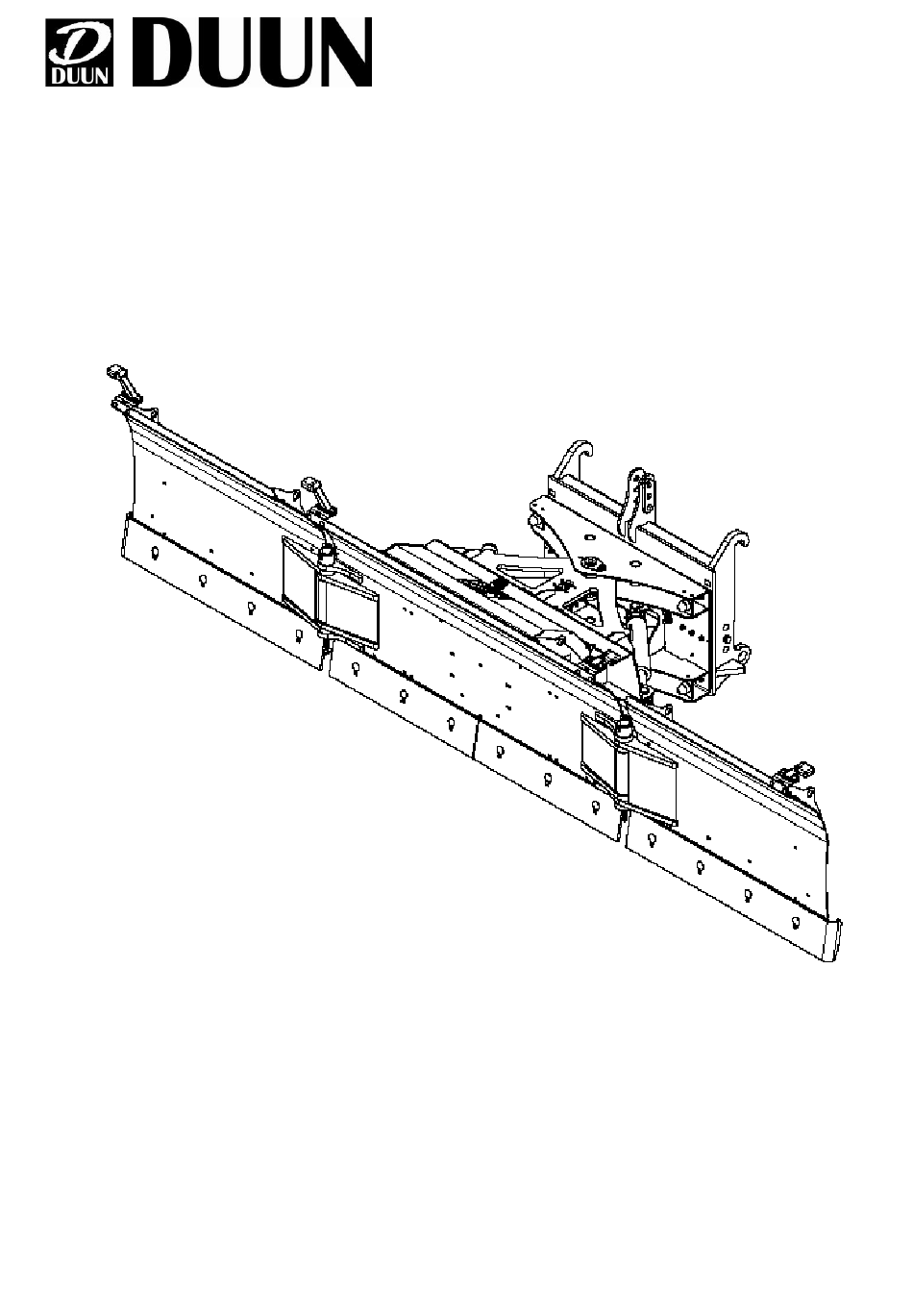

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no FUP450 Instruction manual...
-
Page 2: Machine Indetification
Congratulations on your Duun FUP450 snowplow. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. Good luck! -
Page 3: Table Of Contents
Content MACHINE INDETIFICATION SERIAL NUMBER AND MANUFACTURER ARE SPECIFIED ON BADGE (A) SAFETY WARRANTY TERMS TECHNICAL DATA CONNECTION DISCONNECTION PREPARATION FOR USE WEAR STEEL AND SPRING TRIGGER SERVICE AND MAINTENANCE EAR STEEL YDRAULIC HOSES FUSE UBRICATION POINTS PRACTICAL USE DECLARATION OF CONFORMITY... -
Page 4: Safety
SAFETY All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction manual. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Hydraulic high fluid pressure Be careful when you work with hydraulics. Wear eye protection and gloves. Hydraulic oil under high pressure may penetrate the skin and cause serious infections. See a doctor if you have sustained an injury. Make sure no one is close by when performing hydraulic functions.
- Page 6 Always lower the machine to safety rest at ground level when it needs to be parked. Working on the machine the tractor engine must be stopped and the power shaft set to neutral. Never work under a lifted device unless it is mechanically secured against coming down. Before startup after servicing make sure all tools have been removed and brought into place.
-
Page 7: Warranty Terms
Replaced parts are to be kept until a decision has been made with reference to the claim and the replaced parts are to be forwarded to Duun Industrier as for assessment if so required. As the employment of the product is beyond our control, we may only guarantee the quality and do not accept liability for the product's general performance. -
Page 8: Technical Data
Technical data... - Page 9 Features FUP450 Weight 1310 kg Weight of blade 771 kg Weight of swing frame 539 kg Working width fully extended 4500 mm Transport width folded in 2256 mm Inner height 981 mm Three-point linkage connection Connection BM Hydraulically operated wings...
-
Page 10: Connection
Connection The snowplow is prepared for connection directly to a tree point or with a large BM load attachment. We recommend to use a fixed top strut when using a three-point attachment. Make sure no one is standing between the implement carrier and the implement during connection. -
Page 11: Preparation For Use
Preparation for use Adjusting the skid pad and top strut The snowplow is placed on a level surface with the wings forward. Adjust the top strut that the pad is flush with the ground all the way along the wings. Adjust the skid pad to the desired working height. -
Page 12: Wear Steel And Spring Trigger
Wear steel and spring trigger The snowplow is equipped with wear steel spring. These wear bars have the Norwegian Road Administration's standard on the attachment. The snowplow is supplied with smooth wear steel, but you can use other types of wear steel. e.g. perforated. The attachment to the wear steel is spring-loaded and will bend backwards under the heavy load. -
Page 13: Service And Maintenance
Service and maintenance Check all screw connections after the first 5 operating hours. Go over all the screws before each season after this. Wear steel Turn, move down or replace the wear steel before they are very worn. Hydraulic hose fuse Check the hose connections if they are not stretched or cut during use. - Page 14 Weekly or after 25 operating hours.
-
Page 15: Practical Use
Driving hazard It is the driver's responsibility not to expose himself or others to danger when using the snowplow. People and animals in the vicinity of the machine must be taken into account. Since there are foreign bodies in the snow (stones and the like), the driver must take care so that the snow does not pose a danger to other road users.
