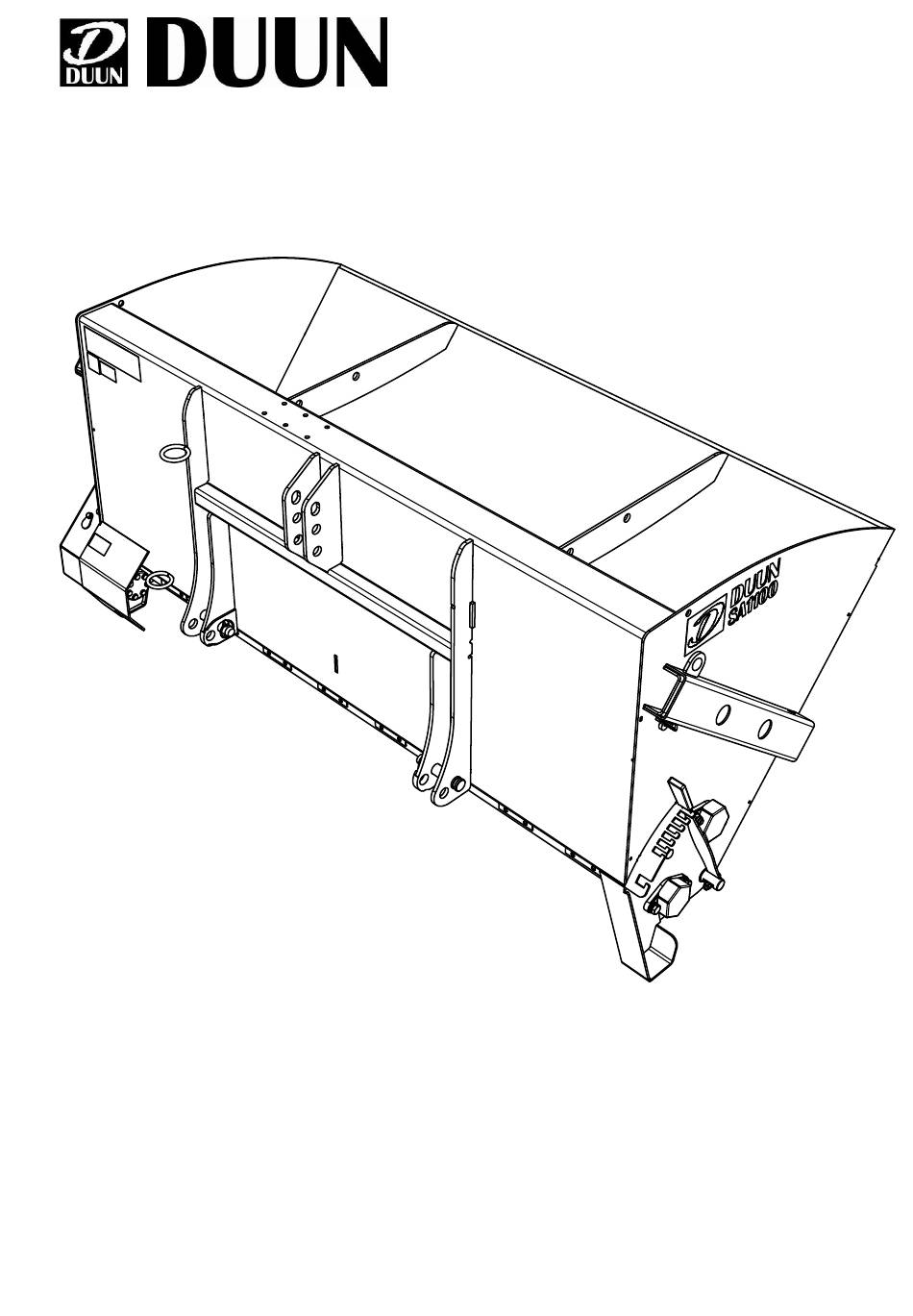

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no SA1100 Instruction manual...
-
Page 2: Machine Indetification
Congratulations on your Dunn SA1100 sand spreader. All Duun tractor operated machines have been engineered and tested in close cooperation with representative users to produce functionally safe and user-friendly machines. Please read this instruction manual before using the machine. Good luck! -
Page 3: Table Of Contents
CONTENT MACHINE INDETIFICATION SAFETY WARRANTY TERMS TECHNICAL DATA PREPARATION FOR USE PRACTICAL USE SERVICE AND MAINTENANCE DECLARATION OF CONFORMITY... -
Page 4: Safety
Safety All operators, mechanics and the owner must always work carefully with agricultural machinery. Read and observe safety instructions in this instruction book. Be particularly aware of warning signs with this symbol, it marks measures that must be carried out in order to avoid accidents. The symbol appears in the instruction manual and on warning signs on the machine. - Page 5 Sudden danger during maneuver A fully loaded sand spreader forms a heavy weight arm at the back of the tractor. This means, during loading from the warehouse it can lift up the tractor in the front. The problem can be remedied with front weights or other load at the front of the tractor (loading device).
-
Page 6: Warranty Terms
Replaced parts are to be kept until a decision has been made with reference to the claim and the replaced parts are to be forwarded to Duun Industrier as for assessment if so required. As the employment of the product is beyond our control, we may only guarantee the quality and do not accept liability for the product's general performance. -
Page 7: Technical Data
3/4” Dimension of chain feeder drive All measurements and weights are approximate values. Duun Industrier is continuously working on product improvements. We therefore reserve the right to make changes to specifications without prior notice. We take reservations for any misprints. -
Page 8: Preparation For Use
Preparation for use Quantity regulation The sand spreader is delivered ready for use with a standard three-point linkage for connection to a tractor. The spread rate itself can be regulated in three ways or by combining these: • The oil flow to the hydraulic motor is increased-reduced with the settings on the tractor for this (A). -
Page 9: Practical Use
Practical use Regulation of spreading amount The handle A can be placed in 7 different positions (B) to regulate the quantity. Emptying before storage By moving the handle (A) to position (C), the spreader can be easily emptied by driving the roller at the same time. Large total weight and dangerous moments! Pay particular attention to the fact that a... -
Page 10: Service And Maintenance
Service and maintenance First of all Before cleaning, lubricating, repairing or adjusting the machine, stop the engine and activate the handbrake and remove the ignition key during the work. Pay special attention to safety during maintenance work, park the machine in accordance with specified safety rules. Screw connections checking Screw connections that are under tension during the use must be tightened after two hours of operation.
