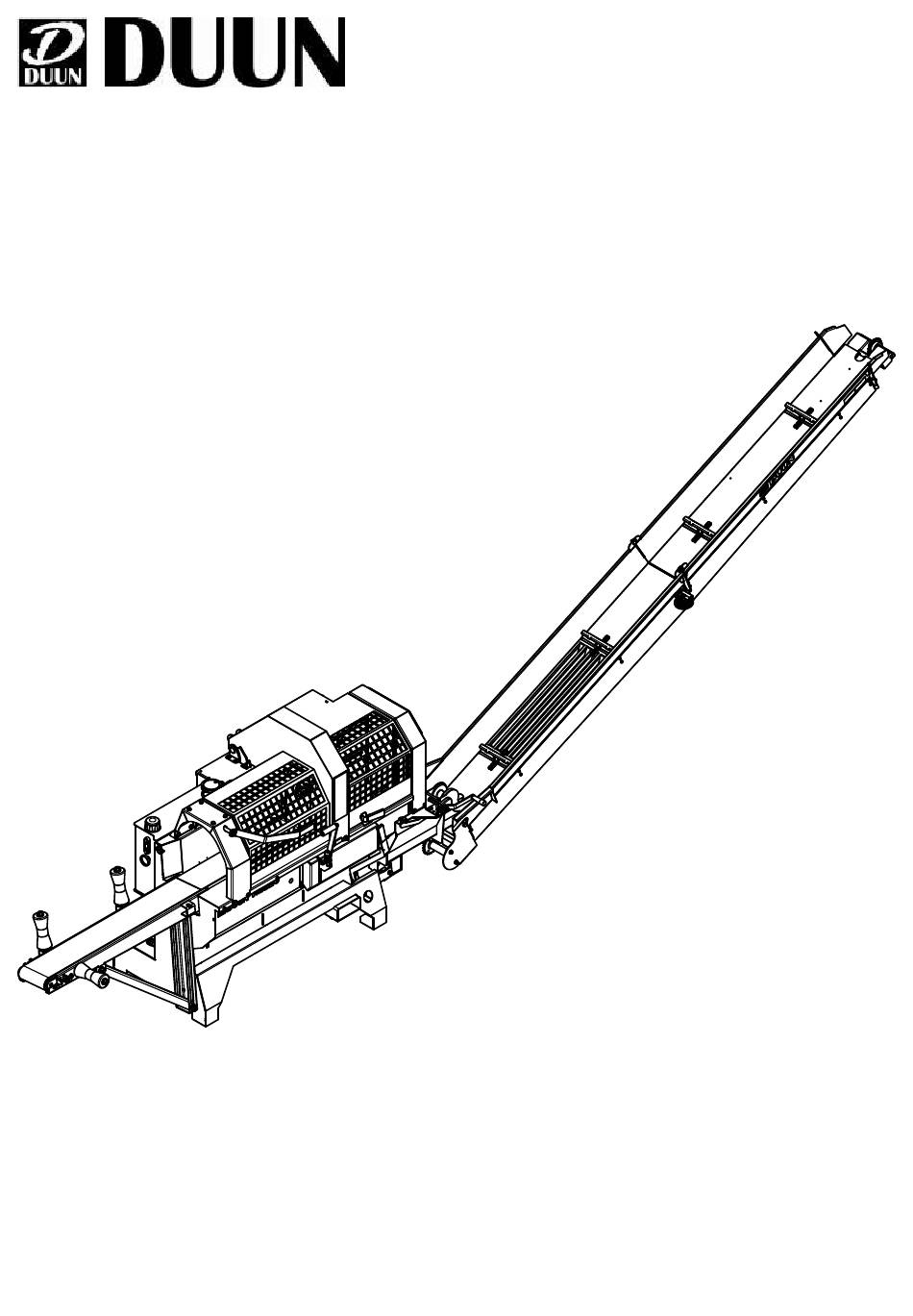

- Page 1 Duun Industrier as 7630 Åsen, Norway www.duun.no Fire wood processor VM320 Instruction manual...
-
Page 2: Machine Identification
Congratulations with your Duun VM320 firewood processor. All Duun tractor operated machines have been engineered and tested in close cooperation with end users of our products. This in order to develop reliable and user friendly machines Please read instructions manual before you start using the machine. -
Page 3: Table Of Contents
Contents MACHINE IDENTIFICATION TIME OF DELIVERY (MONTH-YEAR) SAFETY WARRANTY TERMS DELIVERY FORM FOR DUUN VM320 FIREWOOD PROCESSOR SPECIFICATIONS RANSPORT AND PREPARATION BEFORE USE YDRAULIC OIL QUALITY IL LEVEL CHECK IL TEMPERATURE CHECK ONDENSE CHECK SHAFT PRACTICAL USE ONDITION – 380 – 400... -
Page 4: Safety
SAFETY All operators, mechanics and the owner must be well acquainted with the instruction in this instruction manual before the machine is taken into use. You should always work with care when you employ agricultural machinery. Read and observe the safety instructions in this binder. - Page 5 Clothing and the drive shaft Do not work in clothing that may be caught by the moving parts of the machine (for example scarf, wide coats). The tractor must be disconnected and the hand brake activated before the shaft is connected to the tractor’s power take-off.
- Page 6 Rotating parts – risk of crushing The machine’s rotating parts may cause severe injuries. The same applies to risk of crushing during operation. All covers and protective equipment is to be fitted on the machine during use. The user is responsible if an accident occurs because of defective protection.
- Page 7 Horizontal positioning and tidiness on the workplace Always place the machine as horizontally and steady as possible to secure stable working conditions. Keep the workplace as tidy as possible. This contributes to generally better safety against unwanted events. Area of application The machines are only intended for production of firewood from “pure”...
- Page 8 Safe cutting Avoid placing your hands close to the saw chain. This is obtained by consequently using the log holder A and the handle B to operate it. For cutting the last log of wood, it is important to retain a “suitable” length and cut a shorter piece as the next to last..
-
Page 9: Warranty Terms
Fire wood processor VM320 has a 12-month guarantee against defects in materials and workmanship. Parts that are not originally manufactured by Duun Industrier AS, for example shafts, bearings etc. are subject to these suppliers’ guarantees and terms. Parts that are considered to be wear parts are not part of the basis of the guarantee - these have been specified in a separate survey on the bottom part of this page. -
Page 10: Delivery Form For Duun Vm320 Firewood Processor
Delivery form for Duun VM320 firewood processor Machine specifications Model _ _ _ _ _ _ _ _ _ _ _ Serial No.. _ _ _ _ _ _ _ _ _ _ _ Customer details Machine owner _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Address _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Aip code. -
Page 11: Specifications
Specifications Feature VM320 Cutting diameter max 32cm Splitting force 5600 kg Chain drive Hydraulic Log cut length 20-50 cm stepless Saw chain type 1,6 mm Chain speed 23 sekundmeter Size saw chain 0,325" Saw chain links total 73 links Weight... -
Page 13: Transport And Preparation Before Use
7 Lift the feed belt to upright position and secure position with a latch pin. The VM320 body is equipped with a fork pocket for handling with forklift truck or pallet trucks. Be aware that one individual machine weighs about 600 kg. -
Page 14: Hydraulic Oil - Quality
Hydraulic oil - quality. The machine’s performance will, to a high degree, depend on keeping the hydraulic oil intact. The greatest elements of risk for the quality of the oil are Excessively high temperature which entails poor lubrication performance and risk of faults and break-down of expensive components such as valves, pumps and motors. -
Page 15: Pto Shaft
Too short telescope length of the shaft entails a risk of overload of the tractor’s power take-off and the gearbox of the VM320. Please lubricate the PTO drive shaft before use. -
Page 16: Practical Use
Practical use Condition The machine may not be used before the operator has done the following: Has read the instruction manual and knows how the machine works and how to operate it. Has made himself acquainted with and observed the information regarding safety described on pages 8 to 12 in the instruction manual. -
Page 17: Main Functions - Main Handle
Main functions – main handle The main functions are → Make the feed belt run forwards ↓ Activating the saw upwards - downwards ↑ Activating splitter. Step 1-Fast movement Step 2-Power mode The splitter returns when the handle is back in neutral position. -
Page 18: Safety Hand Operated Log Holder
Safety hand operated log holder Avoid placing your hands close to the saw chain. This is obtained by using the log holder B and the handle A to operate it. For cutting the last wood piece, it is important to retain a “suitable”... -
Page 19: Chain Sharpening And Tightening
Blunt chains and “slant-sharpened” chains entail great wear on the chain bar and risk of extra costs and complications. In order to avoid this, Duun VM320 is designed so that the saw chain always must be dismantled from the machine for any sharpening or replacement. - Page 20 To replace the chain both screws B are loosened The screw A to be release so far that the saw chain can be hitched off for maintenance or replacement. In order to tighten the chain the loosened screws B are still loose and screw A tightened. Then screws B to be tightened.
-
Page 21: Service And Maintenance
Service and maintenance Before opening any lids or covers always stop tractor or motor powering the processor in order to avoid injuries Please note: There are movable parts inside the machine which involve great power and risk of crushing. The machine should never be operated when the covers are removed. The processor has been test run and adjusted from factory and the hydraulic oil should have reached a working temperature of minimum 20 degrees C before any adjustments are made. -
Page 22: Weekly Maintenance
Ensure that the chain oil container does not drain during use. Also inspect that oil is consumed and the chain libricated.. Weekly maintenance Open all lids and safety covers and clean these with compressed air. Saw dust and dirt will deposit inside the machine and it is vital to remove this ensuring optimal cooling and making all functions function.. -
Page 23: Monthly Maintenance
Item No. 2251065 Clean and lubricate the machine between each season. The VM320 has many lubrication points. Many of these have a very light load and are equipped with «forever» greased bearings. Other bearings are mainly flange-mounted ball bearings demanding very modest greasing. The main... -
Page 24: Declaration Of Conformity
Declaration of conformity...
