Summary of Contents for Polytropic CARE 290 S+

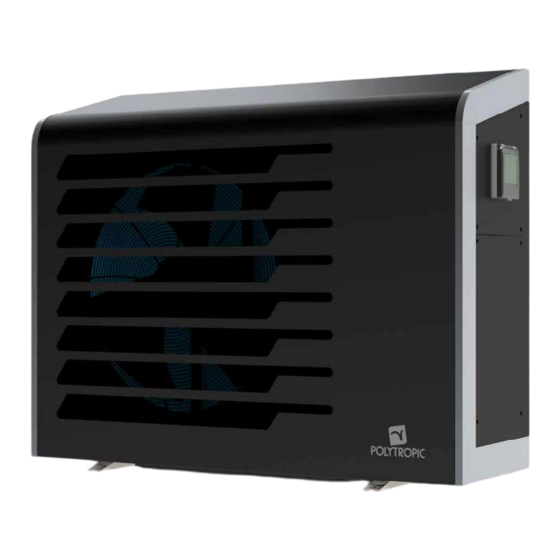

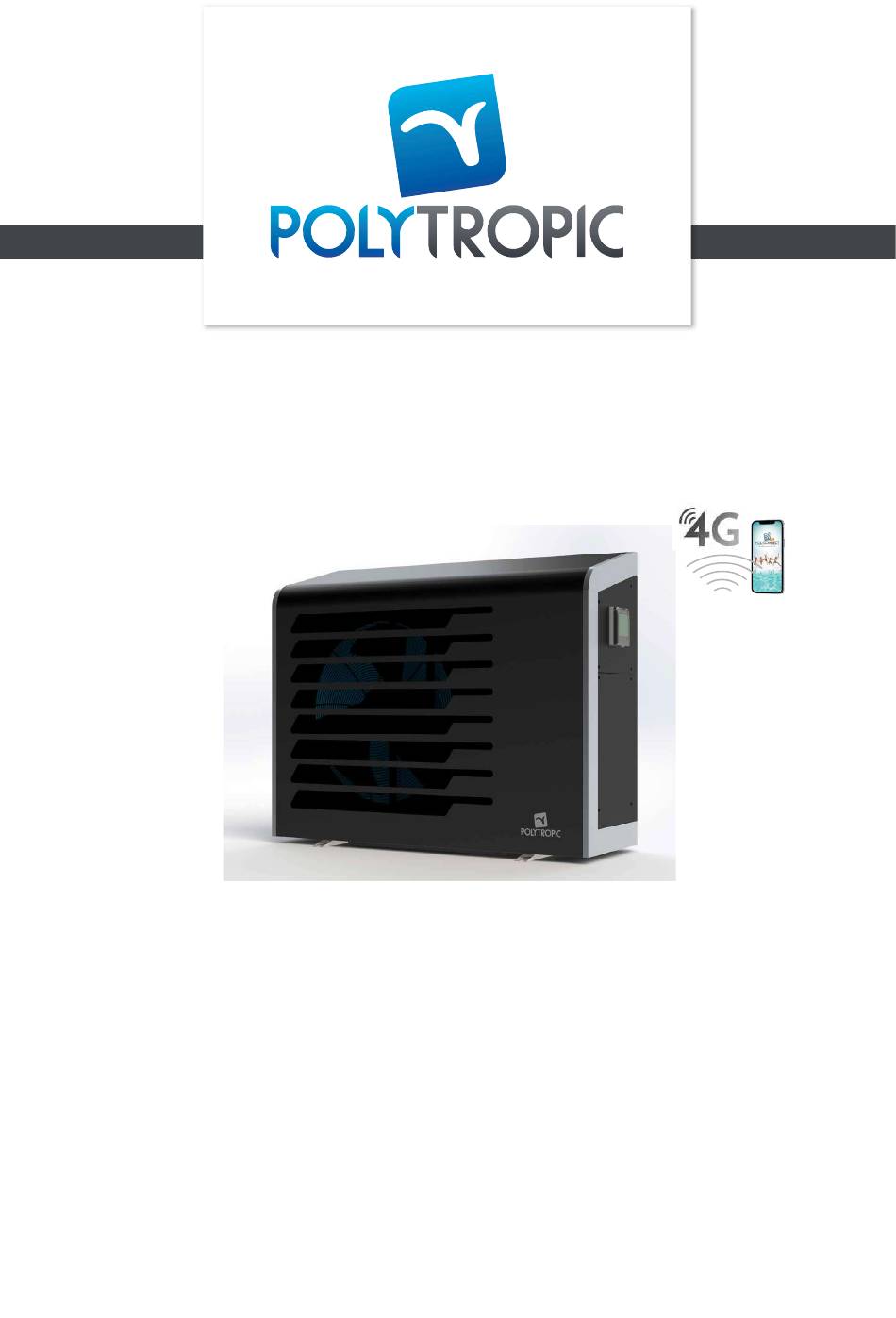

- Page 1 Instructions Manual CARE 290 CARE 290 S CARE 290 S+ CARE 290 M CARE 290 XM...
- Page 2 EN-SWIMMING POOL HEAT PUMP Declaration of conformity Guidelines – Harmonised standards POLYTROPIC SAS - 4 Chemin des Eclapons - 69390 VOURLES We hereby declare under our sole responsibility that this product complies with the relevant guidelines SAFETY EN 60335-1:2012/A2:2019 EN 60335-2-40:2003/A13:2012...
-
Page 3: Table Of Contents
CONTENTS Installation (site, type of support, necessary space) Hydraulic connection Electrical connection Immersion and starting of HP Settings General use Regulation (Electronic controller) Mobile application : Polyconnect Controller state table Maintenance Wintering Recycling the HP After-sales technical Department - 18 -... - Page 4 This symbol indicates that a maintenance technician must handle this equipment according to the operating manual. This symbol indicates that the operating manual should be read attentively prior to use. WARNING: In normal conditions, a suitable HP can heat the water of the pool by 1°C to 2°C per day. It is therefore quite normal not to feel a temperature difference at the outlet of the circuit when the HP is operating.
-
Page 5: Installation (Site, Type Of Support, Necessary Space)
INSTALLATION (SITE, TYPE OF SUPPORT, NECESSARY SPACE) • Install the HP outdoors at more than 2 meters from the pool. • Place the HP on the provided vibration absorbers on a surface that is stable, solid (able to bear the weight of the device) and level (prepare a concrete base if necessary). -
Page 6: Hydraulic Connection
HYDRAULIC CONNECTION • Water quality necessary for this device: NF-EN-16713-3 • The HP is compatible with all types of water treatment. The HP must imperatively be connected by a PVC pipe of Ø 50mm to the swimming pool’s hydraulic • •... - Page 7 Model Power supply Head of line protec- Maximum cable* lagend with sections: tion 2,5 mm² 4 mm² 6 mm² 10 mm² CARE 290 S / S+ 3G 230 V 16 A 25 m 35 m 45 m 80 m CARE 290 M / XM 3G 230 V 20 A 30 m...
-
Page 8: Immersion And Starting Of Hp
Heating priority (Option): Electrical connections: • Connect the coil of this relay (A1 and A2) on the P1 and P2 terminals of the HP. • Parameter for taking the connection into account: Check that setting. IMMERSION AND STARTING OF HP Once the HP is connected to the water circuit with the bypass, and is connected to the power supply by a professional, ensure that: •... -
Page 9: Settings
SETTINGS • • The adjustment is done based on the reading of the adjustment pressure gauge. The adjustment is done by opening or closing the adjustment valve of the bypass. • To increase the pressure on the front pressure gauge: reduce the amount of water passing through the HP: open the bypass adjustment valve. •... - Page 10 Maintaining the temperature: • during the season). The heat pump will start automátically whenever necessary. The minimum operating time varies based on the time of use, please contact your distributor for further information. Do not forget to cover the pool with an insulated cover when you are not using it, to limit heat losses. The choice of the heat pump should always take into account the presence of a tarpaulin, a rolling shutter, or any other type of protection of the pool when it is not being used.
-
Page 11: Regulation (Electronic Controller)
REGULATION (ELECTRONIC CONTROLLER) -
Page 12: Mobile Application : Polyconnect
MOBILE APPLICATION : POLYCONNECT This model is equiped with Polyconnect module allowing the user to control remotely the heat pump and its accessories with Polyconnect application. Polyconnect will also allow you to communicate easily with our after sales technicians to solve remotly and quicly some of the machine disfuncions. -
Page 13: Controller State Table
CONTROLLER STATE TABLE Explanation Check Solution (if no reset) St-by Stand-by Contact your seller switch doesn’t detect the - Check by-pass setting. AL10 / AL11 HP error AL15 / AL16 Too much temperature difference between water in and water out. AL18 Comp. -
Page 14: Maintenance
MAINTENANCE Before any maintenance operation, the heat pump must be completely stopped for few minutes before connecting pressure controllers. This is because high pressure and temperature inside the heat pump could be harmful. Please check the following on a monthly basis: •... -
Page 15: Recycling The Hp
Contact your dealer and pass on this information together with the dimensions of the swimming pool, your personal details (address, telephone number) and the description of the failure. If this procedure is respected, the Polytropic technician will be able to make as accurate diagnostic of the failure. IMPORTANT: If this measure is not followed, warranty will be cancelled.
