Summary of Contents for Polytropic advance s

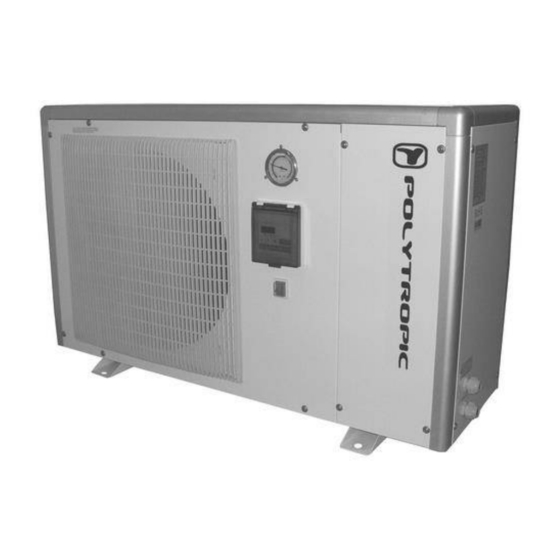

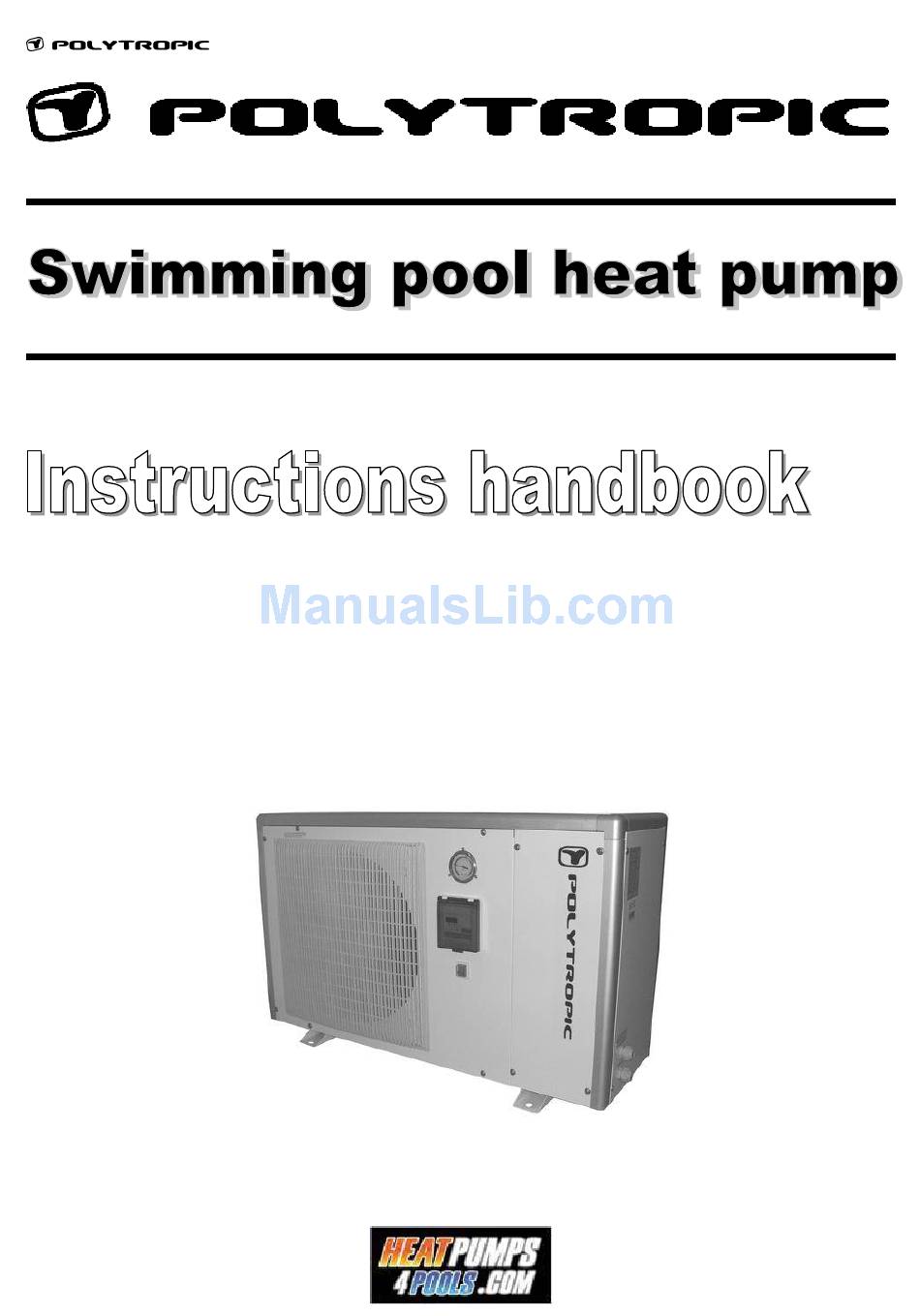

- Page 1 Advance - Advance Master - Master - Master - 29 -...
- Page 2 - 30 -...
-
Page 3: Table Of Contents
Summary Warning ...................... 32 Handbook symbols ....................32 Product delivery and general conditions of use ............32 Storage, shipping and packing ................33 Standards ........................ 33 Utilization limits ....................... 34 Installation ....................35 Installation conditions ....................35 Hydraulic connections ..................... 36 Electrical connections .................... -
Page 4: Warning
Product delivery and general conditions of use Heat pump installation, handling and repairing should only be carried out by a technically qualified and certified engineer - i.e. a person competent with swimming pool heating by heat pump and Polytropic products. Utilization, maintenance... -
Page 5: Storage, Shipping And Packing
Only qualified personnel should carry out these tasks. Polytropic is released from any responsibility concerning damage caused by non- compliance to the provided instructions, errors of handing, installation or usage. You shouldn’t install the heat pump in corrosive background, close to the sea, exposed to salt fog, near a chlorine storage room or other corrosive chemicals. -
Page 6: Utilization Limits
Polytropic heat pumps are provided with HP pressure controller set at 30 Bar. Utilization limits To ensure the heat pump has been correctly sized, Polytropic must has been previously contacted with a selection file (available on demand) in order to validate such selection. -
Page 7: Installation
Installation Installation conditions Installation location The pool heat pump must be installed outdoors with a distance greater than 3 m from the Pool according to laws in force (NF C 15 100). Install the pool heat pump on a flat, horizontal, and stable surface. (Concrete base would be ideal). -
Page 8: Hydraulic Connections
To improve your installation Avoid directing the flow of ventilated air towards a noise sensitive area (room window for example), or a space where people normally gather (the discharged air will be cold) Avoid positioning the pool heat pump on a surface that can transmit vibrations. Try to avoid placing the appliance under a tree or exposed to water or mud, which would be likely to complicate performance and maintenance. -
Page 9: Electrical Connections
Electrical connections Electric supply voltage and current values must correspond to the ones indicated on the heat pump. Connection cables must to be sized according to the appliance power and installation requirements. Maximum cable length* with diameter: Power Head of line Model supply protection... -
Page 10: Water Flow Detection
Water flow detection The heat pump only operates whenever there is water flow circulating inside. All models are equipped with a water pressure switch that detects the pressure of the hydraulic circuit. Warning: If the appliance is installed below the level of swimming pool (below 2 m - 80”), residual pressure could prevent water pressure switch from operating correctly. -
Page 11: Utilization
Utilization Water connection By-pass diagram After having connected the heat pump to the pool water circuit system trough a suitable by- pass and having made the electrical connections by a qualified engineer, please verify the following points: Appliance is in a horizontal position and on a solid ground. ... - Page 12 The pool heat pump will work after a delay of few minutes. Set regulation (Chapter «Regulation»). Set heating (Chapter «Heating»). After a few minutes (time for circuit to heat itself) you can regulate water flow as explained hereafter (Chapter “Water flow regulation”) After these operations, you must put your pool cover on the swimming pool and let the heat pump work for few days in order for the water temperature to increase to the desired...
-
Page 13: Regulation (Digital Controller)
Regulation (digital controller) ON / OFF Button starts or stops the machine. (Attention! When the machine is being turned ON or OFF, it may take up to a few minutes to activate or deactivate.) Working modes Button is to choose the heat pump working mode. To choose the working mode, press this button till the corresponding LED on the display is lighting up. - Page 14 Set the value with and press to confirm. Keybord lock It is possible to lock / unlock the keyboard by pressing in the same time during a few seconds, the display makes a “bip” sound when it is locked / unlocked. Clock setting To set the clock time: ...
- Page 15 Controller state table Screen Explanation Check Solution (if no reset) Stand-by Probe error (Water in) Probe error (evap.) Check probe connection. Probe error (comp. in) (Contact your seller) Probe error (ambiance) Too much diference between Check by-pass setting. water in and water out. Ambient temperature was lower than Defrost protection.
-
Page 16: Water Flow Setting
Water flow setting To optimize the performance of the heating process, it is advisable to regulate the water flow through the pool heat pump. The adjustment must be carried out according to the indication given by the pressure gauge. The setting is modified by opening or closing the setting valve of the by-pass. To increase the pressure on the manometer (pressure gauge), the water flow passing through the heat pump must decrease: ... -
Page 17: Winter Setting
Winter setting When you are winterising your pool system, you must: Turn the pool heat pump off Close downstream and upstream valves of the by-pass system. Drain the exchanger to prevent any risk of freezing. Open completely the downstream and upstream valves to empty the heat exchanger tank before closing them. -
Page 18: Maintenance (By A Qualified Technician)
The minimum working time depends of the season; contact your distributor for more information. If the temperature decreases and the machine work every time the filtration pump is on: increase the filtration time. A thermal pool cover is very important in order to avoid unnecessary heat loss. IMPORTANT: An uncovered pool will loose 4 times more heat than a covered pool. -
Page 19: After Sales Technical Service
(address, telephone number) and the description of the failure. If this procedure is respected, the Polytropic technician will be able to make as accurate diagnostic of the failure. The recommended solution made by Polytropic will be implemented briefly after that. -
Page 20: Technical Data
Technical data Advance S Advance M Master S Master M Master L Heating power 9,4 kW 13,6 kW 9,4 kW 13,6 kW 21,5 kW (Water 26°C / Air 24°C) Heating power 8,0 kW 12,0 kW 8,0 kW 12,0 kW 18,0 kW (Water 26°C / Air 15°C) -
Page 21: Dimensions
Dimensions Model S - 49 -... - Page 22 Model M - 50 -...
- Page 23 Model L - 51 -...
-
Page 24: Wiring Diagrams
Wiring diagrams Model Advance Compressor Ambient temperature Fan motor Coil temperature Four way valve Outlet water temperature Contactor Inlet water temperature Wire controller High pressure switch L / N Power supply Low pressure switch Return gas temperature Water pressure switch - 52 -... - Page 25 Model Master Compressor Ambient temperature Fan motor Coil temperature Four way valve Outlet water temperature Contactor Inlet water temperature Wire controller High pressure switch L / N Power supply Low pressure switch Return gas temperature Water pressure switch - 53 -...
- Page 26 - 54 -...
