Instructions Manual

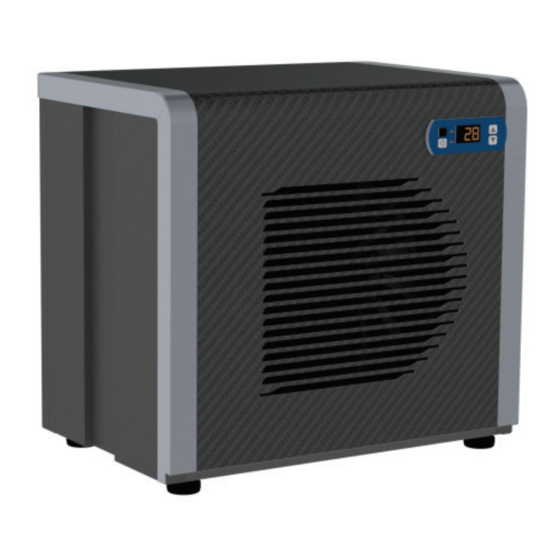

URBAN
URBAN 20
URBAN 30
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the URBAN and is the answer not in the manual?

Questions and answers

Summary of Contents for Polytropic URBAN

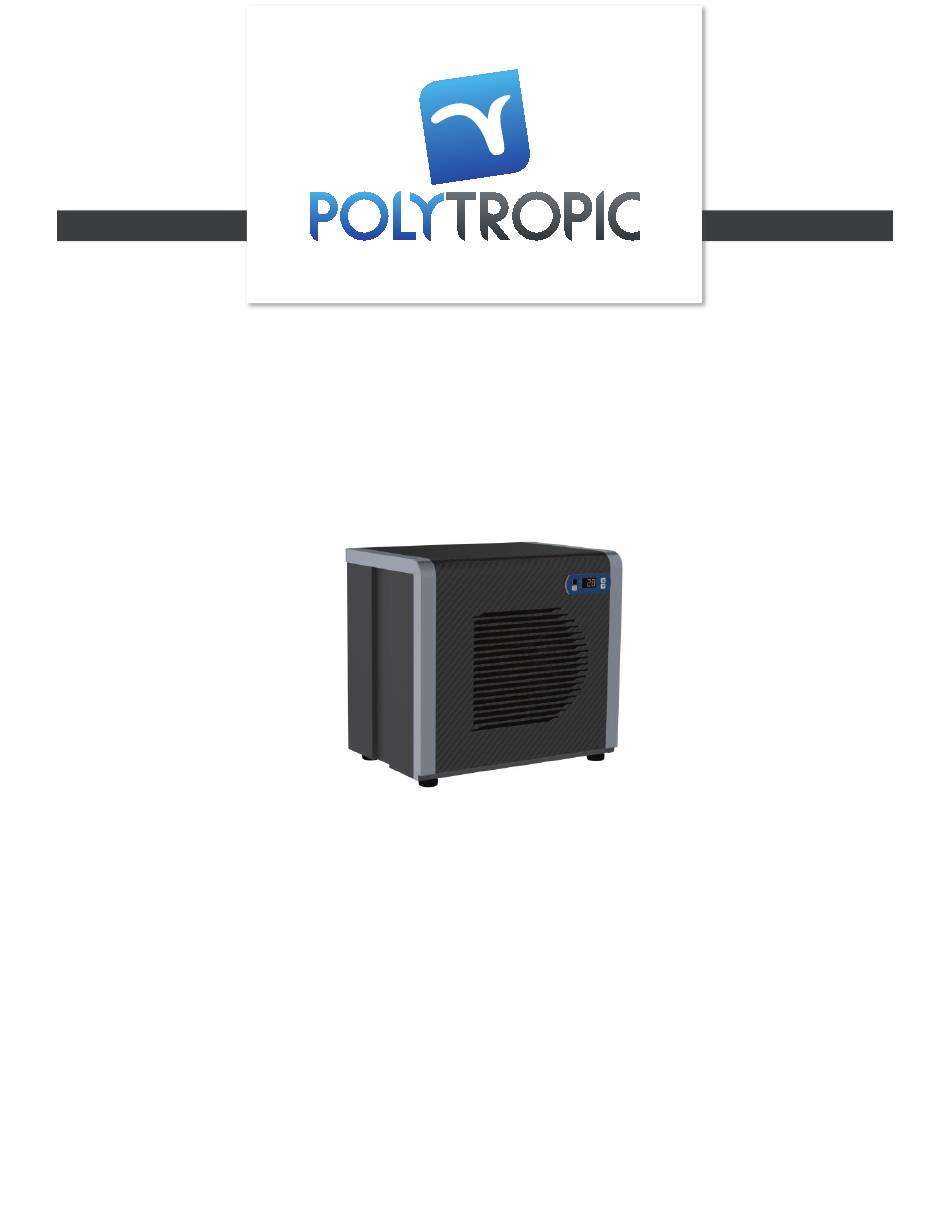

  • Page 1 Instructions Manual URBAN URBAN 20 URBAN 30...
  • Page 2 EN-SWIMING POOL HEAT PUMP Declaration of conformity Guidelines – Harmonised standards POLYTROPIC SAS - 4 Chemin des Eclapons - 69390 VOURLES We hereby declare under our sole responsibility that this product complies with the relevant guidelines SAFETY EN 60335-1:2012/A2:2019 EN 60335-2-40:2003/A13:2012 EN 62233:2008...
  • Page 3 This symbol indicates that the device uses R32, a coolant featuring a low combustion speed. This symbol indicates that a maintenance technician must handle this equipment according to the operating manual. This symbol indicates that the operating manual should be read attentively prior to use. WARNING: In normal conditions, a suitable HP can heat the water of the pool by 1°C to 2°C per day.
  • Page 4 INSTALLATION (SITE, TYPE OF SUPPORT, NECESSARY SPACE) • Install the HP outdoors at more than 3,5 m from the pool. • Place the HP on a surface that is stable, solid (able to bear the weight of the device) and leveled. •...
  • Page 5 HYDRAULIC CONNECTION • Water quality necessary for this device: NF-EN-16713-3 • The HP is compatible with all types of water treatment. The HP must imperatively be connected by a PVC pipe of Ø 50mm to the swimming pool’s hydraulic • circuit, after the filter and before the treatment system, regardless of its type (Cl, pH, Br metering pumps and/or electrolyser).
  • Page 6 IMMERSION AND STARTING OF HP Once the HP is connected to the water circuit with the bypass, and is connected to the power supply by a professional, ensure that: • The HP is horizontal (level). • The HP is stable. •...
  • Page 7 REGULATION (ELECTRONIC CONTROLLER) LED Display: Screen instructions: • “OFF” will show in screen if unit is OFF. • Water inlet temperature will show in screen if unit is ON. • Error code will show in system is abnormal. • LED 1: If cooling, LED 1 will be green, and if defrosting, LED 1 will blink. •...
  • Page 8 Parameters list: Parameter Description Range Ambient temp. -20 °C -80 °C Water in -20 °C -80 °C Water out -20 °C -127 °C External coil temp. -20 °C -80 °C Compressor ON/OFF Fan motor ON/OFF 4-way-valve ON/OFF High Pressur ON/OFF Low Pressur ON/OFF Water flow switch...
  • Page 9 Contact your dealer and pass on this information together with the dimensions of the swimming pool, your personal details (address, telephone number) and the description of the failure. If this procedure is respected, the Polytropic technician will be able to make as accurate diagnostic of the failure. The recommended solution made by Polytropic will be implemented briefly after that.
