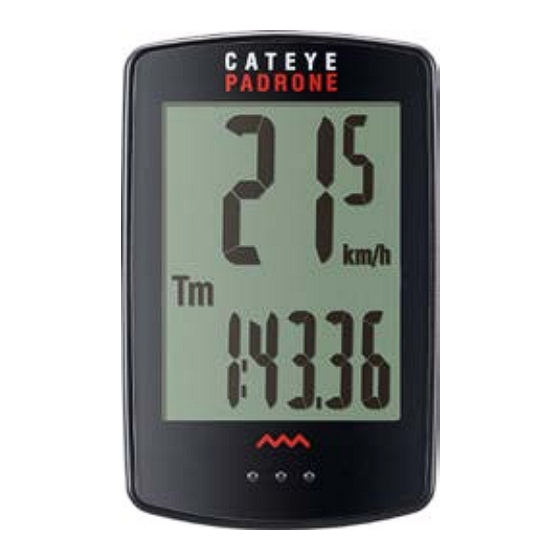

C A T E Y E

PADRONE

CYCLOCOMPUTER

CC-PA100W

•

This instruction manual is subject to change

without notice. See our website for the latest

instruction manual (PDF).

•

Please visit our website, where a detailed

Quick Start manual containing videos can be

downloaded.

http://www.cateye.com/en/prod-

ucts/detail/CC-PA100W/manual/

Mounting the

Setting up the

measurement

Changing settings

Warning/Caution

Product Warranty, etc.

computer

Starting

SET

Table of Contents

Need help?

Do you have a question about the PADRONE and is the answer not in the manual?

Questions and answers

Summary of Contents for Cateye PADRONE

Page 1 Mounting the computer C A T E Y E PADRONE CYCLOCOMPUTER Setting up the CC-PA100W computer Starting measurement Changing settings • This instruction manual is subject to change without notice. See our website for the latest instruction manual (PDF). •...
Page 2: Mounting The Computer
Mounting the computer Bracket band Bracket rubber pad Speed sensor Magnet Sensor rubber pad Nylon tie Bracket Dial (x2) Mount the bracket • When mounting on stem Bracket band Bracket rubber pad Stem Bracket • When mounting on handlebar Bracket band Bracket rubber pad Handlebar Bracket...
Page 3 Mounting the computer Mount the speed sensor Mount the speed sensor in a posi- • Mounting on right front fork tion where the distance from the computer to the speed sensor is within the signal range. • Mounting on left front fork Nylon tie Speed sensor Pull tight...
Page 4: Test Operation
Mounting the computer Adjust the speed sensor and the magnet The magnet passes through The clearance between the the speed sensor zone. speed sensor and the magnet is within 5 mm (3/16”). Magnet Magnet Speed sensor Sensor zone Speed sensor * The magnet may be mounted at any position on spoke as long as attachment conditions are satisfied.
Page 5: Setting Up The Computer
Setting up the computer Battery case Short press cover MODE When using the MENU computer for the Long press first time, configure (2 sec.) MODE the initial settings. MODE Dot section Clear all data. Press the AC button on the back of the computer. * All data is deleted and the computer is reset to its factory default settings.
Page 6: Tire Circumference
Setting up the computer Tire circumference Tire circumference can be determined by either of the following two methods: • Measure the actual tire circumference (L) After ensuring that the tire pressure is appropriate, sit on your bike, roll it forward so that the tire makes one full revolution (use the valve or other marking as a reference), and measure the dis- tance traveled on the road.
Page 7: Starting Measurement
Starting measurement [Measurement screen] MODE operation when mounted on bracket Current speed 0.0 (4.0) – 99.9 km/h [0.0 (3.0) – 62.0 mph] MODE Measurement unit Current function When the computer is mounted on the bracket, pressing the dot section on the computer depresses the MODE button.
Page 8: Starting/Stopping Measurement
Starting measurement [Measurement screen] Starting/stopping measurement Measurement starts automatically when the bicycle moves. Measurement Measurement During measurement the measurement unit (km/h or starts stops mph) flashes. Resetting data Pressing and holding MODE when on the measurement screen resets all measurement data to 0 (excluding Odo). MODE (Press and hold) Power-saving function...
Page 9: Changing Settings
Changing settings [Menu screen] On the measurement screen, press MENU to go to the menu screen. Various settings can be changed on the menu screen. * After changing settings, always press MENU to confirm changes. * When the menu screen is left on for 1 minute, the computer returns to the measurement screen. Measurement Menu screen Description...
Page 10: Manual Distance Input
Changing settings [Menu screen] Measurement Menu screen Description screen Tire cir- cumference MENU MODE Clock MODE Manual distance input Lets you set total distance traveled manually. (Fractions cannot be entered.) * Setting an arbitrary value for total distance allows you to start from the value you entered. This is useful when you have just purchased a new bicycle or when replacing the computer battery.
Page 11: Wireless Sensor
The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by CatEye Co., Ltd. May void the user ’s authority to operate the equipment. Hereby, CATEYE Co., Ltd., declares that this CC-PA100W is in compliance with the essential requirements...
Page 12: Maintenance
Appendix Maintenance If the computer or accessories become dirty, clean with a soft cloth which is moistened with mild soap. Replacing the battery • Computer When (battery icon) is turned on, replace the battery. Close Insert a new lithium battery (CR2032) with the (+) side up. CR2032 * After replacing the battery, always follow the proce- Open...
Page 13: Main Specifications
If the product fails to work due to nor- 1602190N 1600280N mal use, CatEye will repair or replace the defect at no charge. Parts kit Bracket band Service must be performed by CatEye or an authorized retailer.
