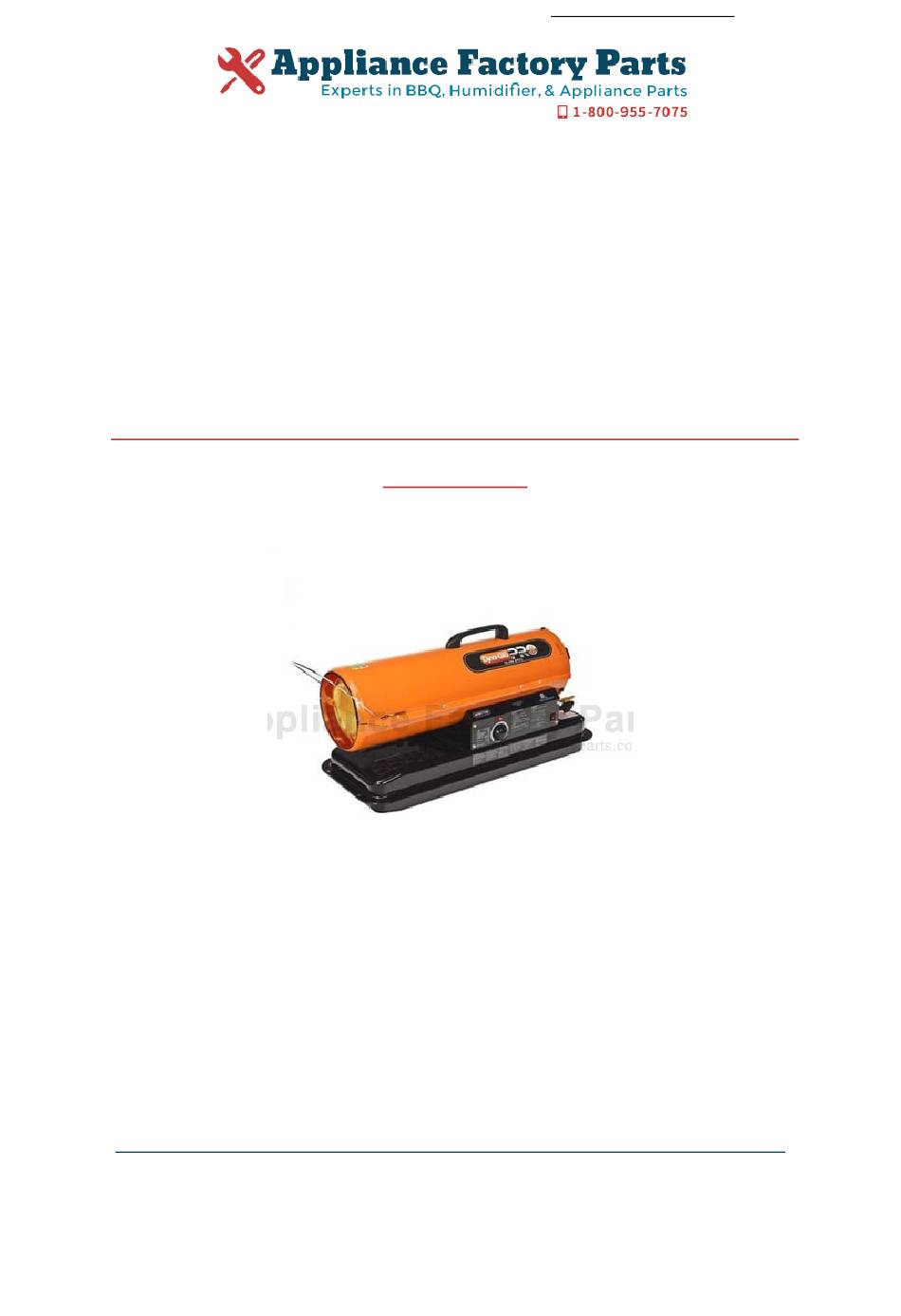

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. DYNA-GLO KFA75H-1 Owner's Manual Shop genuine replacement parts for DYNA-GLO KFA75H-1 Find Your DYNA-GLO HVAC Parts - Select From 146 Models -------- Manual continues below --------...
- Page 2 INDOOR/OUTDOOR PRODUCTS KEROSENE PORTABLE FORCED AIR HEATERS “USER’S MANUAL AND OPERATING INSTRUCTIONS” COMPLIES WITH UL733 AND ANSI A10.10-1998 CAN/CSA/B140.0-03 AND CSA B140.8-1967 MODEL : KFA50H, KFA75H, KFA125H, KFA210H2 Before the first use of this heater, please read this USER’S MANUAL very carefully.
-
Page 3: Risk Of Electric Shock
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! DANGER: : IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON MONOXIDE POISONING. WARNINGS: 1. RISK OF INDOOR AIR POLLUTION! Use this heater only in well ventilated areas. Provide at least a three-square foot (2,800 sq. cm.) opening of fresh outside air for each 100,000 BTU/hr. - Page 4 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! CONTENTS OF USER’S MANUAL ITEM PAGE # 18&21 19,20&22,23 1. INTRODUCTION Please read this USER’S MANUAL carefully. It will show you how to assemble, maintain, and operate the heater safely and efficiently to obtain full benefits from its many built-in features. 2.

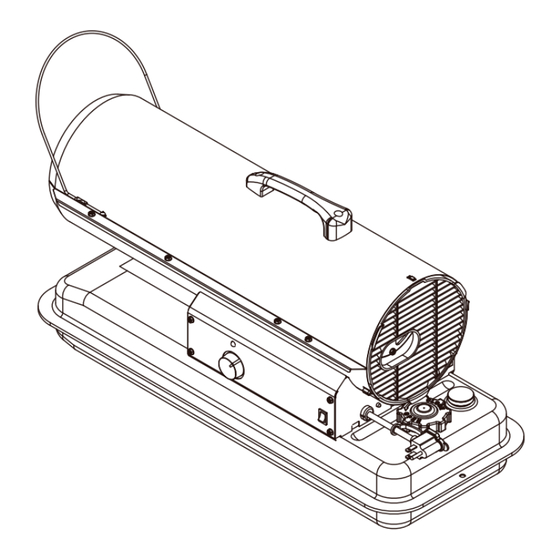

- Page 5 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Front Handle Upper Shell Hot Air Outlet Rear Handle Shell Lower Cord Wrap Fuel Gauge Fuel Cap Side Cover Pressure Gauge Lamp Fan Guard Thermostat Knob Room Temp. Display Power Cord (Piggy Back) Power/Reset Switch 10”...
-
Page 6: Unpacking And Assembly
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 3. UNPACKING AND ASSEMBLY 1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (Fig. 4 and 5) NOTE : Save the shipping carton and packing materials for future storage. KFA50H KFA125H KFA210H2 KFA75H Wheel Support Frame... - Page 7 NEVER LEAVE THE HEATER Screw Frong Guard Handle UNATTENDED WHILE BURNING! Wedged Portion 2. ASSEMBLY Slit Hole For KFA50H/75H Models only (Assembly time for this product is 3 minutes) Cord Wrap Tools Required Medium Phillips Screwdriver. Suppotor 1) Lift front guard for arrow direction and make sure that guard’s wedged portion fits into the slit hole on the upper housing.
- Page 8 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Front Handle Screw Cap Nut S Rear Handle Hot Air Outlet Cord Wrap Flange Screw Fuel Tank Flange Air Inlet Wheel Support Frame Threaded Axle Wheel Bushing Wheel Cap Nut L Figure 7. Assembling Handle, Wheel and Cord wrap CAUTION : DO NOT OPERATE heater without support frame assembled to tank.
- Page 9 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 5. OVERVIEW OF HEATER’S DESIGN Fuel System : This heater is equipped with an electric air pump that forces air through the air line connected to the fuel intake and then through a nozzle in the burner head. When the air passes in front of the fuel intake it causes fuel to rise from the tank and into the burner nozzle.
-
Page 10: Fueling Your Heater
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 6. FUELING YOUR HEATER NEVER FILL THE HEATER FUEL TANK IN THE LIVING SPACE : FILL THE TANK OUTDOORS. DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED. IMPORTANT NOTICE REGARDING FIRST IGNITION OF HEATER : The first time you light the heater, it should be done outdoors. - Page 11 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! NOTICE : The major electrical components of this heater are protected by a safety fuse mounted to the PCBboard. If your heater fails to start, check this fuse first and replace as necessary. You should also check your power source to insure that proper voltage and frequency are being supplied to the heater.
- Page 12 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 9. MAINTENANCE WARNING!! : NEVER SERVICE HEATER WHILE IT IS PLUGGED IN OR WHILE HOT! USE ORIGINAL EQUIPMENT REPLACEMENT PARTS. Use of third party or other alternate components will void warranty and may cause unsafe operating conditions.
- Page 13 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! E.) NOZZLE REMOVE DIRT IN NOZZLE AS NEEDED (SEE PAGE 16). Combustion Chamber Screw (For KFA50H/75H/125H Models Only) - Remove upper shell (See page 10). Ignitor Wire - Remove fan blade (See page 10). - Remove fuel and air line hoses from nozzle adaptor.
- Page 14 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! Screw F.) SPARK PLUG CLEAN AND REGAP EVERY 600 HOURS OPERATION OR REPLACE AS NEEDED. (For KFA50H/75H/125H Models Only) Spark Plug - Remove upper shell (See page 10). - Remove fan (See page 10). Ignitor Wire - Remove ignitor wire from spark plug.
-
Page 15: Pump Pressure Adjustment
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! H.) FUEL FILTER Fuel Filter CLEAN OR REPLACE TWICE A HEATING Fuel line SEASON OR AS NEED. - Remove side cover screws using medium phillips screwdriver. Switch Wires - Disconnect switch wires from power switch and remove side cover. -
Page 16: Replacing Fuse
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 10. REPLACING FUSE NOTICE : This heater is fuse protected. If your heater fails to ignite, DO NOT RETURN YOUR HEATER TO THE STORE. Please follow the simple instructions below to inspect and change the fuse. PROCEDURE FOR REPLACING FUSE WARNING : SHOCK HAZARD To prevent personal injury, unplug the power cord before replacing fuse. -
Page 17: Troubleshooting Guide
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 11. TROUBLE SHOOTING GUIDE TROUBLE POSSIBLE CAUSE CORRECTIVE ACTION Heater ignites but MAIN PCB 1. Wrong pump pressure 1. See Pump Pressure Adjustment, assembly shuts heater off after Page 13. a short period of time. 2. -
Page 18: Wiring Diagram
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 12. WIRING DIAGRAM A) WIRING DIAGRAM (KFA50H Model) CONTROL PCB DISPLAY PCB SPARK PLUG BLACK IGNITOR POWER LAMP (LED) BLACK ORANGE BLACK PUMP WHITE MOTOR CAPACITOR GREEN 15uF/230VAC PW-W/H EARTH PW-BLK BLACK PHOTO CELL BLACK POWER LIMIT... -
Page 19: Specifications
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 13. SPECIFICATIONS 32.0"(813mm) 11.7"(297mm) KFA50H/75H Models KFA125H KFA210H2 41.9"(1,063mm) 47.4"(1,205mm) 21.5"(547mm) 23.1"(587mm) 32.4"(824mm) 33.5"(850mm) KFA125/210H2 Models MODEL KFA50H KFA75H KFA125H KFA210H2 HIGH 50,000 75,000 125,000 210,000 BTU/Hr. 170,000 HIGH 0.38(1.44) 0.57(2.16) 0.95(3.60) 1.60(6.06) Fuel Consumption - Gal./Hr( ./Hr ) 1.30(4.92) - Page 20 NEVER LEAVE THE HEATER NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! UNATTENDED WHILE BURNING! 14. EXPLODED PARTS DRAWING (KFA50H/75H/125H Models Only) NOTE : SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS. 22-3 22-8 22-5 22-7 22-2 22-1 22-4 22-6 22 23 25-2 25-5...
- Page 21 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 15. PARTS LIST (KFA50H/75H/125H Models Only) PART NO. Quantity KEY NO. DESCRIPTION KFA50H KFA75H KFA125H Fuel Tank Assmebly 2151-0026-00 2151-0027-00 2151-0028-00 Fuel Drain-Bolt 4329-0072-00 Fuel Gauge 2156-0047-00 2156-0049-00 2156-0050-00 Fuel Filter Assmbly 2155-0005-00 2155-0005-00 2155-0001-00 Fuel Cap...
-
Page 22: Parts List
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! (KFA50H/75H/125H Models Only) 15. PARTS LIST PART NO. Quantity KEY NO. DESCRIPTION KFA50H KFA75H KFA125H 25-8 Rotor See SP-KFA1000 See SP-KFA1000 See SP-KFA1000 25-9 Blade See SP-KFA1000 See SP-KFA1000 See SP-KFA1000 25-10 Insert See SP-KFA1000 See SP-KFA1000 See SP-KFA1000... - Page 23 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 14. EXPLODED PARTS DRAWING (KFA210H2 Model Only) NOTE : SPECIFY MODEL NUMBER AND PART NUMBER WHEN ORDERING PARTS. 20-8 20-3 20-7 20-1 20-5 20-2 20-4 20-6 20 21 23-2 23-5 23-6 23-7 23-9 23-8 23-11 23-1...
- Page 24 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 15. PARTS LIST (KFA210H2 Model Only) PART NO. Quantity KEY NO. DESCRIPTION KFA210H2 Fuel Tank Assmebly 2151-0029-00 Fuel Drain-Bolt 4329-0072-00 Fuel Gauge 2156-0052-00 Fuel Filter Assmbly 2155-0001-00 Fuel Cap 2151-0041-00 Cord Bushing 3712-0013-00 Power Cord 3980-0177-00 Shell Lower...
- Page 25 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 15. PARTS LIST (KFA210H2 Model Only) PART NO. Quantity KEY NO. DESCRIPTION KFA210H2 23-15 See SP-KFA1005 Output Filter 3221-0076-00 23-16 End Filter Cover 23-17 Ball See SP-KFA1010 23-18 Spring See SP-KFA1010 23-19 Adjusting Screw See SP-KFA1010 23-20 Bolt Flange...
- Page 26 NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING! 15. PARTS LIST (WHEELS AND HANDLE) 1) KFA50H /KFA75H MODELS PART NO. Quantity KEY NO. DESCRIPTION KFA50H KFA75H Handle 3231-0073-00 3231-0073-00 Cord Wrap 3221-0041-00 Hardware Kit HW-KFA1001 HW-KFA1001 2) KFA125H / KFA210H2 MODELS PART NO.
- Page 29 GHP Group, Inc. 6440 W Howard St Niles, IL 60714-3302 Tel: (877) 447-4768 www.ghpgroupinc.com GHP Group, Inc. 6440 W Howard St Niles, IL 60714-3302...
