Summary of Contents for GE PDW8060G03SS

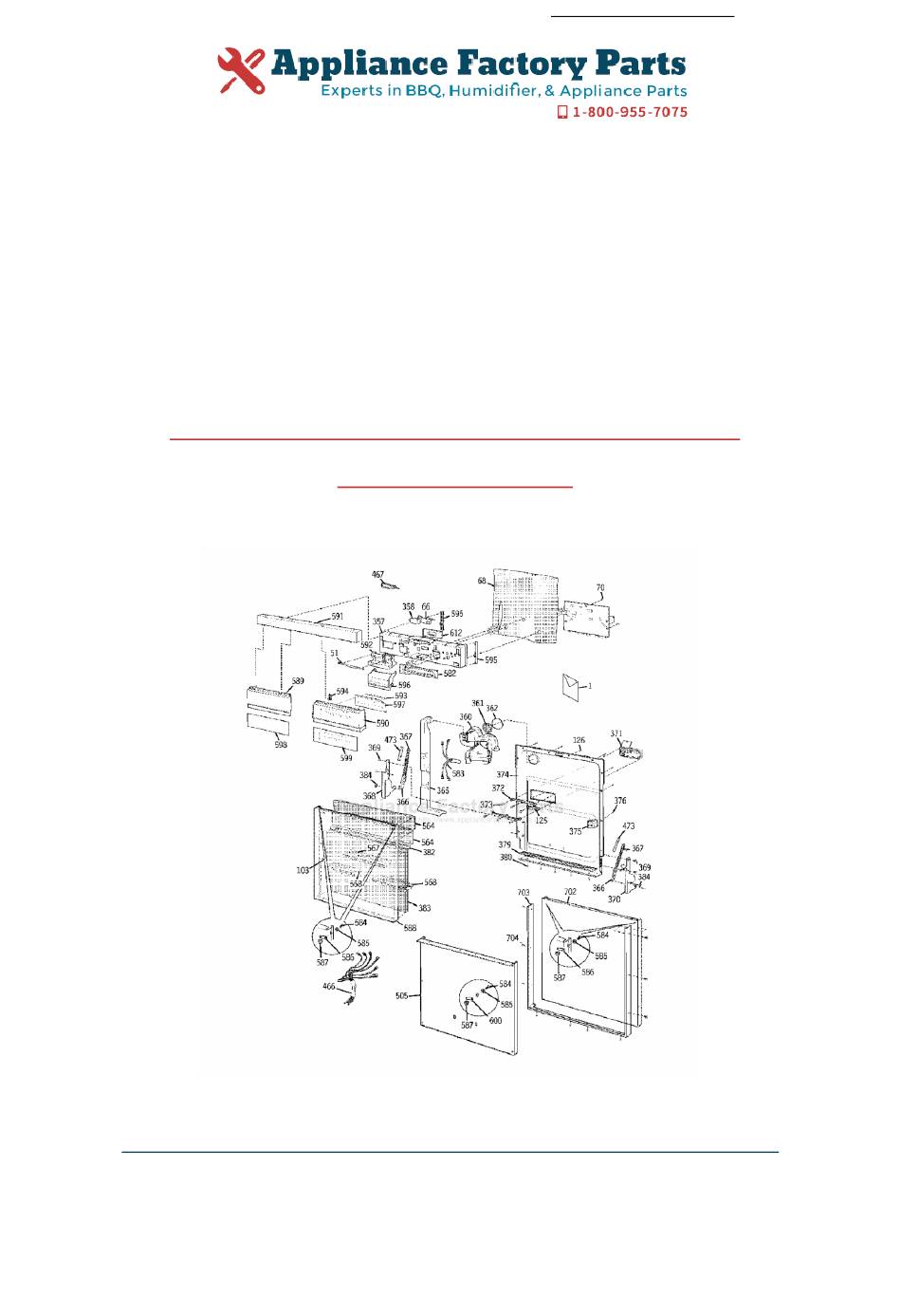

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. GE PDW8060G03SS Owner's Manual Shop genuine replacement parts for GE PDW8060G03SS Find Your GE Dishwasher Parts - Select From 6722 Models -------- Manual continues below --------...
  • Page 2 Installation Instructions If you have questions, call 800-GE-CARES or visit our website at: www.GEAppliances.com Built-In Dishwashers PDW8000, PDW8060 Design Guide with Installation Instructions GE Appliances...
  • Page 3: Table Of Contents

    Read and observe all CAUTION and WARNINGS tion is the responsibility of the installer. Product shown throughout these instructions. failure due to improper installation is not covered under the GE Appliance Warranty. Completion Time – • 1 to 2 Hours. New installa- tions require more time than replacement installa- tions.
  • Page 4: Design Information

    Design Information PRODUCT DIMENSIONS ADVANCE PLANNING • These dishwashers are designed for versatility, adaptable to virtually any installation. • All models have a full length door or a modified door to accept a full cabinet panel without the 34" traditional access panel Adjustable to 35"...
  • Page 5: Installation Preparation

    Installation Preparation MATERIALS YOU WILL NEED: Materials Required for All Installations Screw Type Clamps 90° Elbow (3/8”NPT external thread on one end, opposite 90° Elbow end sized to fit water supply) Note: Use new ferrule. Do not use old parts. Strain relief for electrical connection Thread seal tape Strain Relief...
  • Page 6: Parts Supplied

    Installation Preparation PARTS SUPPLIED: Remove the hardware accessory bag and other parts from inside or taped to the outside of the dishwasher. Check contents against illustrations to insure that all parts are included. 2-piece toekick 6 screws (see illustration) 2 leveling legs Junction Box Cover Junction box cover...
  • Page 7: Drain Requirements

    Installation Preparation DRAIN REQUIREMENTS Method 1 – Air Gap with Waste Tee or Disposer • Follow local codes and ordinances. An air gap must be used when the waste tee or disposer connection is less than 18” from the floor. •...
  • Page 8: Prepare Electrical Wiring

    Installation Preparation PREPARE ELECTRICAL WIRING FOR PERSONAL SAFETY: Remove Alternate house fuse or open circuit breaker Receptacle before beginning installation. Do not use Location an extension cord or adapter plug with 18" this appliance. 1-1/2" Dia. Hole (Max.) Receptacle Location 18"...
  • Page 9: Prepare Hot Water Line

    Installation Preparation PREPARE HOT WATER LINE The line may enter from either side, rear or floor within the shaded area shown. • The water line may pass through the same hole as the electrical cable and drain hose. Or, cut an additional 1-1/2"...
  • Page 10: Custom Panel Dimensions

    Custom Panel Dimensions 3/4" PANEL WITH ZPF675 TRIM KIT CUSTOM PANEL FOR MODELS PDW8000 The custom panel size varies depending on your installation. Panel kits must be ordered separately. Installation of any custom panel should be completed before Custom the dishwasher is installed. Countertop Panel Size Cabinets...
  • Page 11: Installation Instructions

    Installation Instructions STEP 3 REMOVE ACCESS COVER BEFORE YOU BEGIN: CUSTOM PANEL INSTALLATION: If you intend to install custom door panels, (on some models) refer to trim kit installation instructions. Custom panels should be in place before installing the dishwasher. Insulation Board STEP 1 REMOVE PACKAGING Cut the shipping carton and use it as a pad beneath the...
  • Page 12: Step 5 Install Power Cord

    Installation Instructions STEP 5 INSTALL POWER CORD STEP 7 SLIDE DISHWASHER INTO OPENING SKIP THIS STEP IF DISHWASHER WILL BE DIRECT WIRED DO NOT PUSH AGAINST THE FRONT PANEL WITH • Maximum power cord length is 6 ft. KNEES, DAMAGE WILL OCCUR! •...
  • Page 13: Step 9 Connect Drain Line

    Installation Instructions STEP 9 CONNECT DRAIN LINE STEP 10 CONNECT ELECTRICAL FOLLOW ALL LOCAL CODES AND ORDINANCES. FOR DIRECT WIRE ONLY (If a power cord with plug is used, plug it into the wall • The dishwasher is supplied with a 72" long drain hose. outlet and continue with next step.) •...
  • Page 14: Step 11, Position And Level Dishwasher

    Installation Instructions STEP 11 POSITION AND LEVEL THE DISHWASHER • Check to be sure the dishwasher is adjusted to correct Door Rub Door Rub height and is centered in the cutout. On Right On Left • Open and close the door to insure proper operation of Hand Side Hand Side the door.
  • Page 15: Step 14 Secure Dishwasher

    Installation Instructions STEP 14 SECURE DISHWASHER STEP 15 INSTALL TOEKICK TO CABINET AND • Loosen depth adjustment screws inside the bracket. COUNTERTOP • Slide bracket out to proper depth. To maintain position and alignment, it is recommended Tighten screws. the dishwasher be secured to the countertop and •...
  • Page 16: Step 16, Install Side Filler Strips

    Installation Instructions STEP 16 ADJUST SIDE FILLER STRIPS • Open the door fully. • Loosen (but do not remove) screws holding the top and side trims. • Adjust trim to cover opening gap. Tighten screws. Adjust Side Trim to Meet Cabinetry Loosen Screws...
  • Page 17 Note: While performing installations described in this book, safety glasses or goggles should be worn. Note: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice. 0616 400 350 Pub. No. 31-30545 Dwg.
