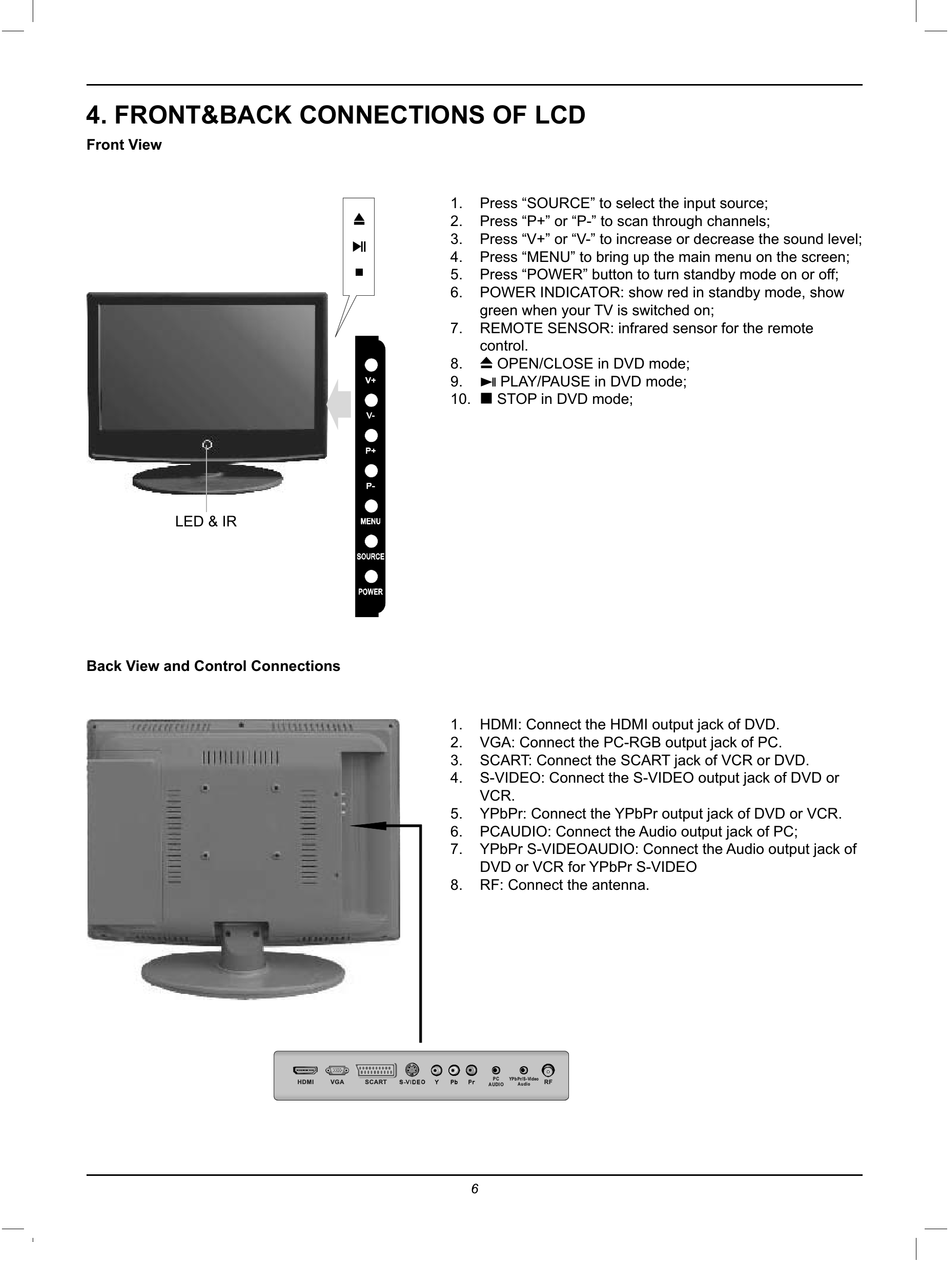

4. FRONT&BACK CONNECTIONS OF LCD
Front View
LED & IR
Back View and Control Connections
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.  STOP in DVD mode;
1.
2.
3.
4.
5.
6.
7.
8.
HDMI VGA SCART
6
Press "SOURCE" to select the input source;
Press "P+" or "P-" to scan through channels;
Press "V+" or "V-" to increase or decrease the sound level;
Press "MENU" to bring up the main menu on the screen;
Press "POWER" button to turn standby mode on or off;
POWER INDICATOR: show red in standby mode, show
green when your TV is switched on;
REMOTE SENSOR: infrared sensor for the remote
control.
 OPEN/CLOSE in DVD mode;
 PLAY/PAUSE in DVD mode;
HDMI: Connect the HDMI output jack of DVD.
VGA: Connect the PC-RGB output jack of PC.
SCART: Connect the SCART jack of VCR or DVD.
S-VIDEO: Connect the S-VIDEO output jack of DVD or
VCR.
YPbPr: Connect the YPbPr output jack of DVD or VCR.
PCAUDIO: Connect the Audio output jack of PC;
YPbPr S-VIDEOAUDIO: Connect the Audio output jack of
DVD or VCR for YPbPr S-VIDEO
RF: Connect the antenna.
