Summary of Contents for SWEEX TV021

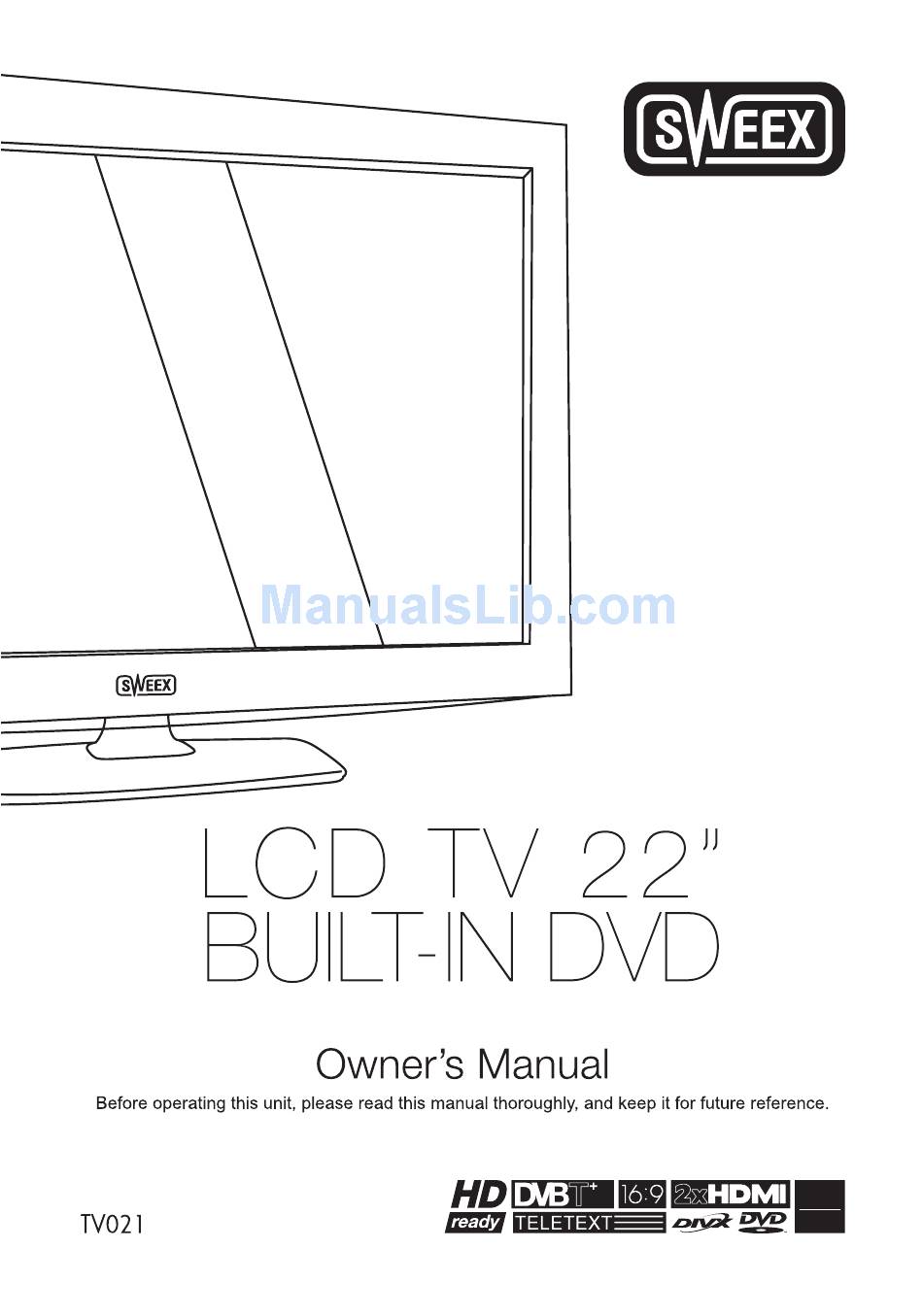

- Page 1 22” 56CM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Specifications ....................... 1 Important Safety Instruction ..................2 Warnings and Cautions ....................3 Functional Parts(TV)/Installation .................. 4 Rear view of TV set ...................... 5 Remote Control unit ....................6-7 TV MODE ....................... 8-11 USB Operation&Intal setting DVD ........................... 12 Troubleshooting Tips .................... -
Page 3: Important Safety Instruction
Important Safety Instruction WARNING RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lighting flash with arrow head within a triangle is intended to tell the user that parts inside the product are a risk of electric shock to persons. -
Page 4: Warnings And Cautions
WARNINGS AND CAUTIONS Caution Caution Do not drop or push objects into the Do not insert anything in the ventilation television cabinet slots or openings. holes. If metal or something flammable Never spill any kind of liquid on the enters, it may result in fire or electric shock. television receiver. -
Page 5: Functional Parts(Tv)/Installation
FUNCTIONAL PARTS(TV) Front View of LCD Set Remote Sensor 2. LED indicator lamp 3. V- Button V+ Button 4. P- Button P+ Button 5. MENU Button 6. SOURCE Button Standby Button To turn the TV power ON Put the TV set on the correct place, connect the AC power plug to the wall outlet, then the LED indicator lamp turns red/blue and the TV set is at Standby/work Mode. -
Page 6: Rear View Of Tv Set
REAR VIEW OF TV SET Top View of lcd Set TO POWER SOURCE COAX-aansluiting HDMI 2 Hoofdtelefoon HDMI 1 YPbPr SCART COAXIAL PC-AUDIO IN HDMI 2 Earphone HDMI 1 YPbPr SCART PC-A IN NOTE: Precautions when connecting to other equipment When using external equipment with this TV set, please read the instruction manual of the external equipment. -
Page 7: Remote Control Unit
REMOTE CONTROL UNIT STANDBY: Switch on LCD TV when at standby mode. AUTO: Press to do auto configuration directly in PC source. MUTE: Press to mute the sound. Press again or press VOL+ to unmute. 0-9: Press 0-9 to select a TV channel directly when you are watching TV.To enter page number in teletext mode and so on. - Page 8 Operation-Remote Control(DVD) OPEN/CLOSE Button : Press OPEN/CLOSE button to load disc on disc tray. Button : Press these button to go to the previous/next chapter(DVD). Button: These buttons allow skipping ahead/back at 5-level speed. Press “PLAY”button to return to normal playback. REPEAT Button: To press this button you can repeatedly play a title(DVD) or all tracks(CD) .
-
Page 9: Tv Mode
TV MODE CHANNEL menu Press [MENU] to display the main menu. to select "CHANNEL" in the main DTV Manual Tuning Press [◄/►] Auto Tuning menu, then press [ ] to select and [OK] to enter. ▼ ATV Manual Tuning Programme Edit CHANNEL Signal Information CI Information... - Page 10 TV MODE Programme Edit: Press [▼] and [OK] to enter Program Edit m Edit "Programme Edit" submenu. This option has five functions: 1 7 Digital 1. Press Red button to delete the current channel. 2. Press Green button to rename the current 2 7 HD Digital channel (For ATV only).
- Page 11 TV MODE SOUND menu Press [MENU] to display the main menu. Press [◄ ►] to select "SOUND" in the main menu, then press [▼] and [OK] to enter. So und Mode Standard Balance Auto Volume Surround Sound SOUND CHANNEL AD Switch SPDIF Mode Move Return...
- Page 12 TV MODE LOCK menu Press [MENU] to display the main menu. Lock System Press [◄ ►] to select "LOCK" in the main menu, Set Password then press [▼] and [OK] to enter. Block Program Parental Guidance LOCK CHANNEL Key Lock Move Return Select...
-
Page 13: Usb Operation&Intal Setting Dvd
USB OPERATION Movie Menu Press [◄ ►] button to select MOVIE in the main menu, then press OK button to enter. Press [◄ ►] button to select drive disk you want to watch, then press OK button to enter. Press [ ] button to select the file you ▲/►/▼/◄... -
Page 14: Troubleshooting Tips
Troubleshooting Tips Before calling for service, you can check the following items on symptoms and solutions. No picture: Check other channel, maybe station problem. Adjust the tuning control. Ensure that the input setting is at TV state. Ensure that the LED is on. Ensure that the equipment is connected properly.
