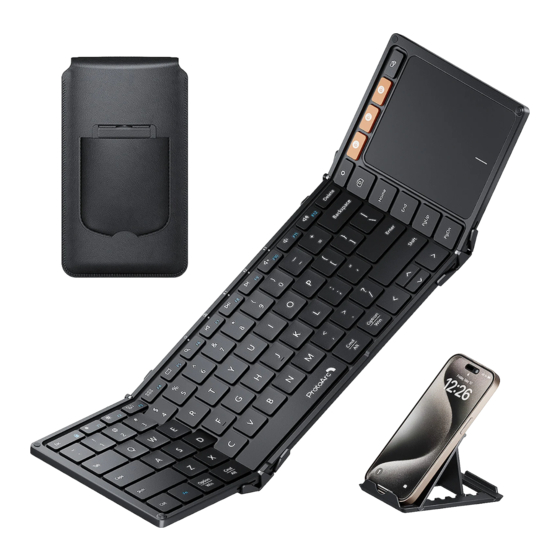

- Page 1 XK01 TP User Manual Foldable Wireless Keyboard with Touchpad www.protoarc.com US: support@protoarc.com UK: support-uk@protoarc.com United States: (+1) 866-287-6188 Monday-Friday: 10am-1pm , 2pm -7pm (Eastern Time)*Closed during Holidays...
-
Page 2: Product Features
Product Features Type-C Charging Port Multifunction Button Left Mouse Button Right Mouse Button Charging Indicator / Low Battery Indicator Caps Lock Indicator BT1 Indicator BT2 Indicator BT3 Indicator Bluetooth Connection 1 Bluetooth Connection 2 Bluetooth Connection 3... -
Page 3: Bluetooth Connection
When the white indicator light flashing quickly, it enters Bluetooth pairing mode. Settings Bluetooth ProtoArc XK01 TP ProtoArc XK01 TP Connected 3. Turn on the Bluetooth settings on your device, search or select "ProtoArc XK01 TP" and start Bluetooth pairing until the connection is completed. - Page 4 How to Switch Connection Mode After connection, short press the keyboard connection button to easily switch to multiple devices. BT2 Device Connection BT1 Device BT3 Device Connection Connection Keyboard Charging When the battery is too low, the low battery indicator will turn red and flash quickly.
- Page 5 Multimedia Function Keys...
- Page 6 How to Use Special Characters in British English On MacOS/iPadOS/iOS system: Press the key and you can type the symbol shows in the right square frame. Press and hold the key " ", then press the corresponding key, you can type the symbol shows in the right square frame.
- Page 7 Press and hold the key " ", then press the corresponding key, you can type the symbol shows in the right square frame On Android/Windows: Press the key and you can type the symbol shows in the right square frame. Press and hold the key "...
- Page 8 Press and hold the key " " (the key on the right side of the keyboard), then press the corresponding key, you can type the symbol " " and " ". Touchpad Function Explanation Single Finger Tap Single Finger Slide - Mouse Left Click - Move the Cursor Two Fingers Tap...
- Page 9 Three Fingers Swipe Up Windows 10/11: Open Task View lOS 13.4.1 and above: Task Center Mac OS 12.0 and above: Task Center Three Fingers Swipe Down Windows 10/11: Back to Desktop Android 10.0: Back to the Homepage lOS 13.4.1 and above: Current Mission Mac OS 12.0 and above: Current Mission Three Fingers Slide Left/Right Windows 10/11: Switch Between Active Windows...
-
Page 10: Product Parameters
Product Parameters Battery Capacity 300mAh Working Current ≤7mA Sleep Current 20uA Charging Current 190mA(±20mA) Standby Current ≤0.3mA Standby Time ≥150 Days Charging Time <2 hours Sleep time 30 minutes Wake Up Way Press any key Weight 297g Keyboard Dimension 386.4x119.7x12.4mm(Unfolded) 215.5x119.7x20.9mm(Folded) Sleep Mode 1. -
Page 11: Packing List
3-5 seconds, and the corresponding Bluetooth indicator light will continuously flash, indicating successful Bluetooth pairing). Then, enable Bluetooth on the tablet and search "ProtoArc XK01 TP" to establish the connection. Verify that the Bluetooth keyboard has sufficient battery power. Insufficient battery power can also prevent the connection. -
Page 12: Eu Declaration Of Conformity
EU Declaration of Conformity Declared Object: Foldable Wireless Keyboard with Touchpad Model: XK01 TP Rating: 3.7V 10mA Input: 250mA Place of Production: Made in China Manufacturer: Shenzhen Hangshi Electronic Technology Co., LTD Address: Floor 2, Building A1, Zone G, Democratic West Industrial Zone,...
