- Page 1 XK01 Mini User Manual Foldable Bluetooth Keyboard With Number Pad support@protoarc.com www.protoarc.com United States: (+1) 866-287-6188 Monday-Friday: 10am-1pm , 2pm -7pm (Eastern Time)*Closed during Holidays...
-
Page 2: Table Of Contents
CONTENTS Product Features Keyboard Bluetooth Connection How to Switch Keyboard Device Channels Charging Guide Multimedia Function Button Product Specification Sleep Mode Tips Packing List - 1 -... -

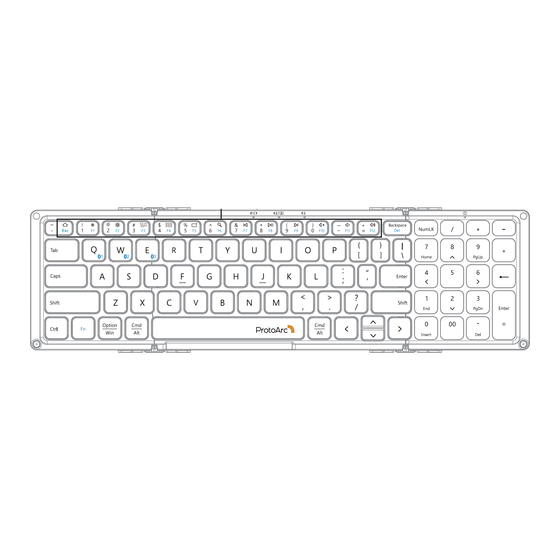

Page 3: Product Features
Product Features Type-C Charging Port Multimedia Function Keys BT 1 Indicator / Charging or Low Battery Indicator BT 2 Indicator / Caps Lock Indicator BT 3 Indicator Numlock Indicator Bluetooth Connection 1 Bluetooth Connection 2 Bluetooth Connection 3 - 2 -... -
Page 4: Keyboard Bluetooth Connection
Bluetooth pairing mode. Settings Bluetooth ProtoArc XK01 Mini ProtoArc XK01 Mini Connected 4. Turn on the Bluetooth settings on your device, search or select “ProtoArc XK01 Mini” and start Bluetooth pairing until the connection is completed. - 3 -... -
Page 5: How To Switch Keyboard Device Channels
How to Switch Keyboard Device Channels After are connected, press "Fn" +corresponding channel key to switch between devices. BT 1 Device Channel BT 2 Device Channel BT 3 Device Channel - 4 -... -
Page 6: Charging Guide
Charging Guide 1. When the battery is low, the indicator light will turn red and start flashing until the keyboard/mouse is turned off. 2. Insert the Type-C port into the Keyboard/Mouse and the USB-A port into the computer to charge, the red light stays on while charging. 3. -
Page 7: Multimedia Function Button
Multimedia Function Button Android Windows MAC OS Home Home Web Page Brightness Brightness Brightness Brightness Down Down Down Down Brightness Up Brightness Up Brightness Up Brightness Up Window Window Task Center Switch Switch Application Task View Task View Switch Back to Back to Homepage Homepage... -
Page 8: Product Specification
Product Specification Keyboard Parameters: Battery Capacity 210 mAh Working Current ≤ 3.5 mA Sleep Current 31 uA Charging Current 190 mA (±20mA) Standby Current ≤ 0.3 mA Standby Time ≥ 150 Days Charging Time < 2 Hours Wake Up Way Press any key Weight 210 g... -
Page 9: Sleep Mode
Sleep Mode 1. When the keyboard is idle for more than 30 minutes, it will automatically enter sleep mode and the indicator light will turn off. 2. To wake up the keyboard, simply press any key on the keyboard, and it will be ready within 3 seconds.
