ProtoArc XK02 User Manual

Triple folding keyboard with touchpad
Hide thumbs

Advertisement

Quick Links

Download this manual
XK02
User Manual
Triple Folding Keyboard with Touchpad

Advertisement

loading
Need help?

Need help?

Do you have a question about the XK02 and is the answer not in the manual?

Questions and answers

Related Manuals for ProtoArc XK02

Summary of Contents for ProtoArc XK02

  • Page 1 XK02 User Manual Triple Folding Keyboard with Touchpad...

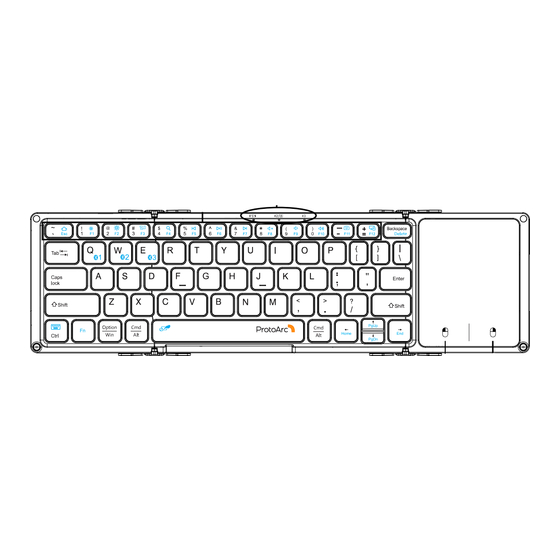

  • Page 2 Front Charging Indicator / Bluetooth 1 Indicator Caps Lock Indicator / Bluetooth 2 Indicator Bluetooth 3 Indicator Multifunctional Hotkeys Left Mouse Button Right Mouse Button Back...

  • Page 3: Product Function

    Product Function Type-C Charging Port Bluetooth Channel 1 Bluetooth Channel 2 Bluetooth Channel 3 Bluetooth Connection Method 2. Short press “Fn+BT1" to choose 1. Unfold the Keyboard. Bluetooth Channel 1, the BT1 white indicator will flash once, then long press “Fn+BT1", the BT1 white indicator flashes quickly, keyboard enters into pairing mode.
  • Page 4 4. Short press “Fn+BT3" to choose Bluetooth Channel 3, the BT3 white indicator will flash once, then long press “Fn+BT3", the BT3 white indicator flashes quickly, keyboard enters into pairing mode. Windows 10 System Click SETTING - DEVICES. Click ADDING BLUETOOTH OR OTHER DEVICES. Devices Bluetooth, printers, mouse...
  • Page 5 When the devices find ProtoArc XK02, click PAIR. Bluetooth ProtoArc XK02 Ready to pair Bluetooth Pair When ProtoArc XK02 shows CONNECTED, the keyboard is ready to use. ProtoArc XK02 Connected...
  • Page 6 Click SYSTEM PREFERENCES - BLUETOOTH. When the devices find ProtoArc XK02, click PAIR. “forter” mouse ProtoArc XK02 Pair When ProtoArc XK02 shows CONNECTED, the keyboard is ready to use. ProtoArc XK02 Connected “forter” mouse...
  • Page 7 When the devices find ProtoArc XK02, click PAIR. ProtoArc XK02 Connected Bluetooth Bluetooth Pairing Requset “ProtoArc XK02” would like to pair with your iPad. Cancel Pair When ProtoArc XK02 shows CONNECTED, the keyboard is ready to use. Settings Bluetooth Bluetooth DEVICES Bluetooth ProtoArc XK02 Connected...
  • Page 8 Click SETTING and turn on the BLUETOOTH. Settings Bluetooth When the devices find ProtoArc XK02, click PAIR. Bluetooth ProtoArc XK02 When ProtoArc XK02 shows CONNECTED, the keyboard is ready to use. Bluetooth ProtoArc XK02 Connected...
  • Page 9 How to Switch Between Three Device After successfully connected to 2 or 3 devices, you can switch between them easily by pressing "Fn" + "BT1/BT2/BT3". BT2 Connection BT1 Connection BT3 Connection Keyboard Charging Type C Charging Cord 1. When the keyboard is in low power condition, the corresponding BT channel in use will flash in White light.
  • Page 10 Touchpad Function Guide One finger click - Left click One finger click twice - Double click One finger slide - Move cursor One finger double click to drag - Drag Two fingers click - Right click Two fingers slide up/down/left/right - Mouse Scroll...
  • Page 11 Pinch with two fingers - Zoom in or out Three fingers swipe up Win: Open task browser iOS: Open the App switcher Android: Open task browser Three fingers swipe down Win: Back to the desktop iOS: N/A Android: N/A Three fingers swipe to the left/right - Show the Previous/Next mission Four fingers click Win: Activate Operation Center...
  • Page 12 Multimedia Keys Function iOS/OS/Android iOS/OS/Android Windows Windows Fn+Shift+ Fn+Shift+ HOME Homepage Brightness Down Brightness Down Brightness Up Brightness Up Switch App Switch App Search Search Previous Previous Play & Pause Play & Pause Next Next Mute Mute Volume Down Volume Down Volume Up Volume Up Screenshot...

  • Page 13: Product Parameters

    Product Parameters Item Name Specification Parameter System Available Bluetooth applicable system: Windows 7, Windows 8, Windows 10 or later Mac OS X 10.10 or later Android 4.3 or higher Battery Capacity 210 mAh Sleep Time Enter into sleep mode after 30 minutes of inactivity Battery Life 1000 Times charge-discharge cycles Keys Life...

  • Page 14: Sleep Mode

    Sleep Mode 1. When the keyboard is not used for more than 30 minutes, it will automatically enter into sleep mode and the indicator light will turn off. 2. When using the keyboard again, just hit any key, the keyboard will wake up within 3 seconds, and the lights come back on and keyboard starts working.
